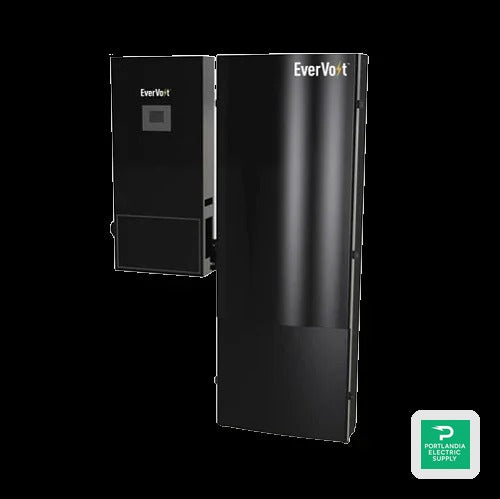

Panasonic Evervolt Battery-based Dc Inverter - JK-Q3C31-D02
Panasonic Evervolt Battery-based Dc Inverter - JK-Q3C31-D02
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0590
- MPN
- JK-Q3C31-D02
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Panasonic. 50,000+ SKUs from 169 authorized brands.
Panasonic EverVolt Home Energy Storage System
Embrace a cleaner energy future with the Panasonic JK-Q3C31-D02, designed to optimize your solar investment by effectively storing excess energy. This advanced energy storage solution ensures power availability during critical times or allows for surplus energy sales back to the grid. Enjoy the enhanced resilience and efficiency this system brings to your home.
Product Features
Modular Energy Options
The Panasonic JK-Q3C31-D02 offers modular energy storage ranging from 11.4 kWh to 17.1 kWh, accommodating diverse energy needs and scalability.
User-Friendly App Interface
Utilize the intuitive application to seamlessly monitor your energy system's performance, enhancing your control over energy consumption.
Flexible Operating Modes
Multiple operating modes in this system ensure adaptability, maximizing energy management for varying household demands.
Effortless Installation
The system features three main components designed for straightforward installation, minimizing setup hassles while ensuring reliability.
Comprehensive Warranty
Benefit from a robust 10-year warranty provided by Panasonic, reflecting the company's commitment to product quality and customer support.
How It Works
The Panasonic JK-Q3C31-D02 operates by efficiently converting and storing solar energy, accommodating various energy needs. This system's components collaborate to deliver seamless energy management for both technical and non-technical users.
Energy Conversion Component
This component plays a pivotal role in converting solar energy into usable electricity, ensuring efficient energy flow within the system.
Energy Storage modules
Capable of holding significant energy amounts, these modules ensure a consistent power supply during peak times or outages.
Monitoring and Control Interface
This user-friendly interface aids in real-time system monitoring, providing insights into energy consumption and storage status.
Specifications
| Model Information | EVAC-105 / EVDC-105 |
| Usable Energy | 11.4 kWh - 17.1 kWh |
| Maximum Continuous Output Power | 4.4 kW / 7.0 kW |
| Average Backup Capability | 6 hours / 9 hours |
| Inverter Peak Output Power | Up to 9.6 kW |
| Operating Voltage Range | 120 - 500 VDC |
| Grid Frequency | 50Hz / 60Hz |
| Nominal AC Voltage | 120V / 240V |
| Inverter Dimensions (HxWxD) | 33.7 x 18.0 x 6.0 in |
| Battery Cabinet Weight | 106 lbs |
| Operating Temperature (Discharge) | 32F to 122F |
| Warranty | 10 years |
| SKU | PES-SPS-SIV-0590 |
|---|---|
| MPN | JK-Q3C31-D02 |
| Manufacturer | Panasonic |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Pallet price | |
| Unit price | |
| Inverter type | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
