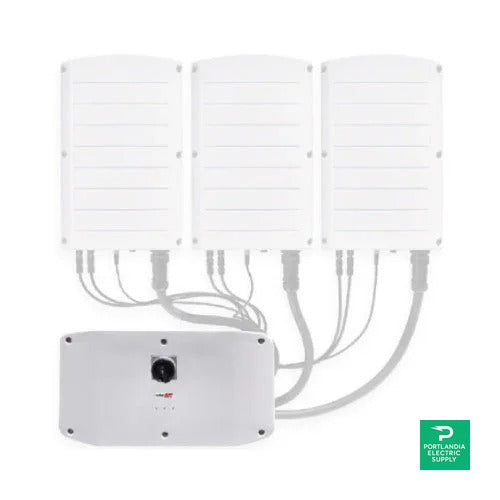

Solaredge NON-ISOLATED String INVERTER-PRIMARY UNIT - SE120K-US08IBNZ4

SolarEdge Non-Isolated String Inverter - SE120K-US08IBNZ4

The SolarEdge SE120K-US08IBNZ4 inverter is designed for seamless integration into the 277/480V North American grid, leveraging Synergy Technology for optimal performance. This high-capacity inverter ensures efficient energy management with features such as built-in arc fault protection and rapid shutdown capabilities. It's an excellent choice for maximizing solar power usage in both residential and commercial installations.

Product Features

Synergy Technology Integration

This inverter harnesses advanced Synergy Technology, enhancing its performance and ensuring reliable operation across various grid configurations. The technology optimizes the energy conversion process, boosting overall system efficiency.

Robust Grid Compatibility

The inverter supports a variety of grid configurations, including WYE and Delta types. This versatility allows for seamless integration into different electrical systems, ensuring consistent power delivery.

Comprehensive Monitoring Systems

Equipped with advanced monitoring capabilities, the SE120K-US08IBNZ4 offers full visibility of energy production and system performance through Ethernet or optional Wi-Fi communication interfaces.

Enhanced Safety Features

Incorporating built-in arc fault protection and rapid shutdown systems, the inverter prioritizes safety by preventing electrical faults and ensuring compliance with the latest safety standards.

Efficient Energy Management

The inverter features smart energy management capabilities, including export limitation and module-level monitoring. These features optimize energy usage, improving overall system efficacy.

How It Works

The SolarEdge SE120K-US08IBNZ4 inverter operates by converting DC power generated by solar panels into AC power compatible with the electrical grid. It's designed with Synergy Units that distribute workload efficiently, ensuring reliability and ease of service.

Synergy Units

Each inverter consists of 2 or 3 Synergy Units, which independently manage power conversion, providing uninterrupted energy flow and simplifying installation and maintenance.

Synergy Manager

Oversight of the energy conversion process is handled by the Synergy Manager, which coordinates the operations of Synergy Units for optimal performance and reliability.

Rapid Shutdown and Safety Mechanisms

Includes built-in features that ensure quick system shut down and protection against arc faults, adhering to current safety standards for user protection.
