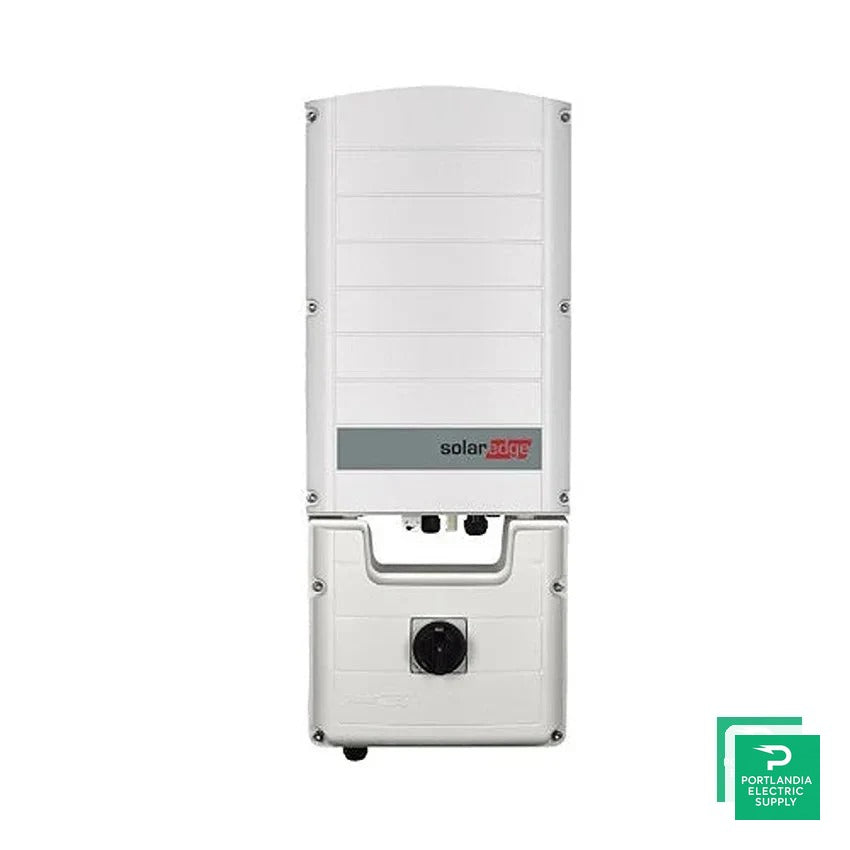

SolarEdge 14.4KW Three-Phase Inverter - SE14.4K-US
The SolarEdge SE14.4K-US inverter is a leading choice for efficient solar power systems tailored for the 208V grid in North America. This model delivers robust performance with high conversion efficiency, making it ideal for residential and commercial installations. Equipped with cutting-edge features, it provides reliable energy management while integrating seamlessly into any solar setup.
Product Features
Integrated Arc Fault Protection
Experience enhanced safety with built-in arc fault protection, meeting NEC 2011 690.11 standards and ensuring secure solar operations in diverse installations.
Rapid Shutdown Capability
The SolarEdge SE14.4K-US supports rapid shutdown, compliant with NEC 2014 690.12, allowing for swift energy cut-off when needed for safety and maintenance.
Versatile Installation Options
Ideal for both outdoor and indoor setups, this inverter is designed for flexible installation, catering to a wide range of environments and conditions.
Built-in Monitoring System
Track your solar energy production and system performance in real-time with integrated module-level monitoring capabilities, accessible through wired or wireless internet connections.
User-Friendly and Lightweight Design
Ease of installation is ensured with the lightweight structure of the SE14.4K-US, allowing it to be easily mounted on provided brackets for quick deployment.
How It Works
The SolarEdge SE14.4K-US inverter converts DC power collected from solar panels into AC power usable by the grid, ensuring efficient energy distribution across three phases. It includes advanced safety features and a monitoring interface for optimal performance management.
DC to AC Conversion
This inverter utilizes a fixed voltage conversion process to transform direct current from solar modules into alternating current, suitable for consumption and grid transmission.
Advanced Safety Integration
Benefit from integrated safety mechanisms, including a safety switch and arc fault detection, enhancing the overall security and reliability of the solar power system.
Communication Interfaces
Stay connected and informed through multiple communication options including RS485, Ethernet, and optional ZigBee, facilitating remote monitoring and management.
Specifications
| Rated AC Power Output | 14400 VA |
| Maximum AC Power Output | 14400 VA |
| AC Output Line Connections | 4-wire WYE (L1-L2-L3-N) plus PE or 3 wire Delta |
| AC Frequency Min-Nom-Max | 59.3 - 60 - 60.5 Hz |
| Max. Continuous Output Current | 40 A |
| GFDI Threshold | 1 A |
| Maximum DC Power | 19400 W |
| Maximum Input Voltage DC+ to DC- | 600 Vdc |
| Nominal Input Voltage DC+ to DC- | 400 Vdc |
| CEC Weighted Efficiency | 97% |
| SKU | PES-SPS-SIV-0465 |
|---|---|
| MPN | SE14.4K-US |
| Manufacturer | SolarEdge |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Length | |
| Pallet price | |
| Phase | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number |
