SolarEdge 50kW 208VAC 3-Phase Inverter with Synergy Technology
Discover the advanced SolarEdge SE50K-US02IBNZ4 inverter, designed for seamless integration into North America's 208VAC grids. Offering groundbreaking Synergy Technology, this inverter enhances energy management and operational efficiency. Key benefits include built-in arc fault protection and rapid shutdown capabilities, ensuring system safety and reliability.
Product Features
Synergy Technology for Enhanced Performance
Utilizing unique Synergy Technology, the SolarEdge SE50K-US02IBNZ4 maximizes system efficiency and reliability, delivering up to 50kW of power to meet high energy demands.
Pre-Commissioning for Rapid Installation
This inverter includes a pre-commissioning feature that automates system validation, allowing for faster setup and installation processes and ensuring all components are functioning correctly.
Built-in Arc Fault Protection
Stay protected with user-configurable arc fault protection, which is integrated and compliant with UL1699B standards, safeguarding the system from electrical malfunctions.
Module-Level Monitoring for Better Insights
The SE50K-US02IBNZ4 offers module-level monitoring capabilities using Ethernet or optional cellular communication, providing real-time data for precise energy management.
Smart Energy Management Features
Enhance energy use with export limitation capabilities, ensuring optimal energy distribution and compliance with regional grid requirements.
How It Works
The SolarEdge 50kW inverter operates by converting DC power from solar modules into AC power suitable for grid distribution. Key components enable easy installation, maintenance, and superior energy management.

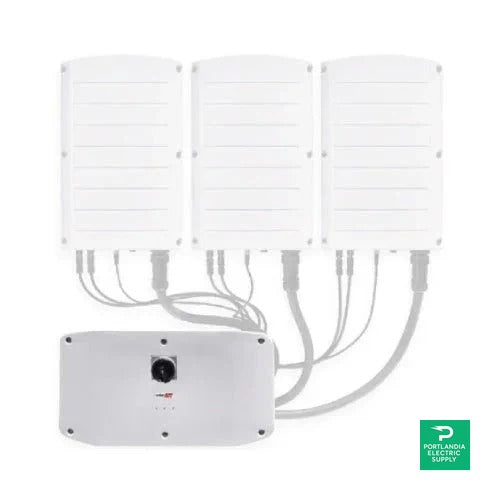

Three Synergy Units
Each inverter consists of three compact Synergy Units, allowing for simple two-person installation while ensuring each unit can operate independently for increased uptime.
Innovative Communication Interfaces
Multiple communication interfaces including RS485, Ethernet, and optional Wi-Fi or cellular, facilitate seamless integration into existing energy monitoring systems.
Integrated Surge Protection
Field-replaceable surge protection devices are integrated to withstand electrical surges and are monitored for performance, enhancing longevity and reliability.
Specifications
| Rated AC Active Output Power | 43200 / 50000 W |
| Maximum AC Apparent Output Power | 43200 / 50000 VA |
| AC Output Line Connections | 3W + PE, 4W + PE |
| AC Output Voltage (L-N) | 105-120-132.5 Vac |
| AC Output Voltage (L-L) | 183-208-229 Vac |
| AC Frequency | 59.5 - 60 - 60.5 Hz |
| Maximum Continuous Output Current | 120 / 139.5 Aac |
| Maximum DC Power (Module STC) | 64800 / 75000 W |
| Maximum Input Voltage DC+ to DC- | 600 Vdc |
| CEC Weighted Efficiency | 97 % |
| Protection Rating | NEMA 3R |
| Operating Temperature Range | -40 to +140 ºF |
