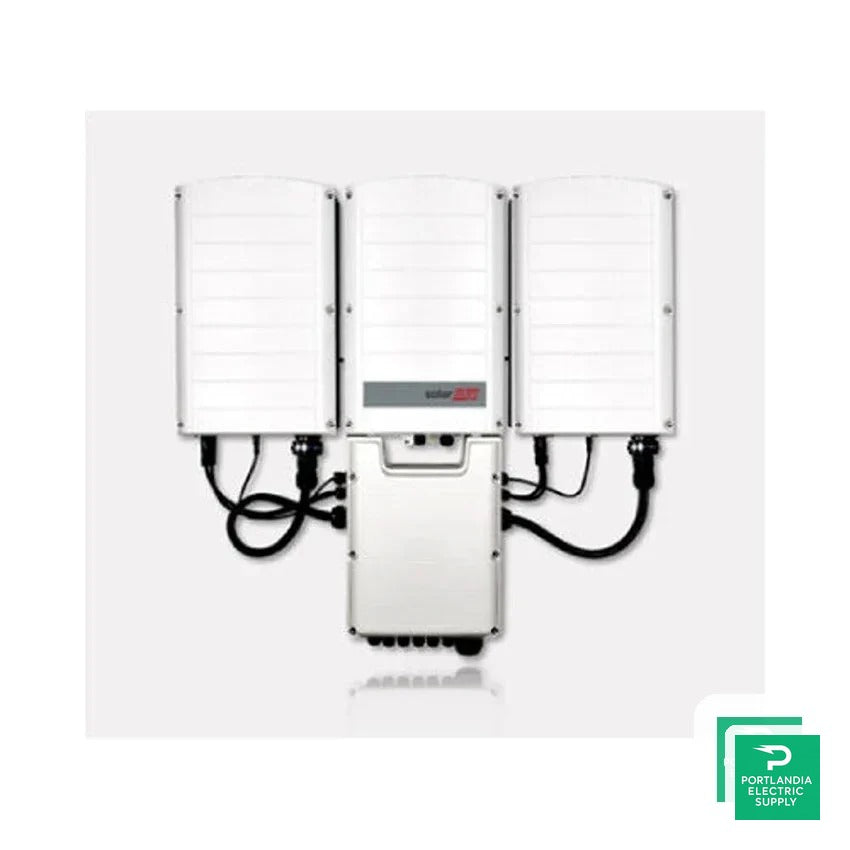

SolarEdge 66.6KW Primary Synergy 277-480v - SE66.6K-USRP0BNU4

Synergy Technology — 98.5% CEC Weighted Efficiency at 66.6 kW: SolarEdge's Synergy architecture divides the SE66.6K into independent functional units that together deliver 66,600 VA of rated and maximum AC output at a CEC weighted efficiency of 98.5% — one of the highest published efficiency ratings available for commercial three-phase string inverters in this power class — accepting up to 90,000W of DC input at STC and converting it to clean 277/480V three-phase AC output with minimal conversion losses, directly maximizing the energy yield and financial return of the PV system over its operating lifetime compared to lower-efficiency inverter alternatives in the same output range.

Power Optimizer Integration — Module-Level MPPT & Harvest Maximization: The SE66.6K is designed as the central inverter in a SolarEdge power optimizer system — working in conjunction with SolarEdge DC power optimizers mounted at each solar module to independently track and maximize the power point of every individual panel in the array regardless of shading, soiling, orientation mismatch, or manufacturing variation, eliminating the string-level mismatch losses that reduce energy harvest in conventional three-phase string inverter deployments on complex commercial rooftops, multi-orientation facades, and carport structures where partial shading is unavoidable and uniform string irradiance cannot be guaranteed across the full operating day.

Module-Level Monitoring — Ethernet, RS485 & Optional Cellular GSM: Built-in RS485 and Ethernet communication interfaces connect the SE66.6K directly to the SolarEdge monitoring platform — streaming real-time module-level power, voltage, and energy data from every optimizer in the connected array to the SolarEdge cloud monitoring portal and installer app — while an optional cellular GSM communication module enables full monitoring and remote management capability at sites without available wired network infrastructure, providing system owners, O&M teams, and EPCs with the complete performance visibility needed to detect underperforming modules, validate system health, and document energy production for billing, incentive, and warranty purposes.

Modular Design — Two-Person Installation, Independent Unit Serviceability: Synergy's modular architecture splits the SE66.6K into independently operable units that mount on walls or standard inverter rails — allowing a standard two-person installation crew to handle each unit individually without specialized lifting equipment — and enabling field service teams to remove, replace, or upgrade a single unit while the remaining units continue operating and producing power, eliminating the full-system downtime that conventional monolithic commercial inverter service requires and significantly reducing O&M labor costs and energy production losses over the system's operational lifespan on commercial rooftop, ground-mount, and carport installations.

NEC 690.11 & 690.12 Compliant — Rapid Shutdown & Arc Fault Protection: The SE66.6K integrates rapid shutdown functionality compliant with NEC Article 690.12 — automatically reducing DC conductor voltage within the array boundary to safe levels upon loss of AC grid power or manual activation, enabling first responders to work safely on and around commercial rooftops where the inverter is installed — and arc fault circuit protection compliant with NEC Article 690.11 that continuously monitors DC circuits for arc fault signatures and disconnects the affected circuit before arc-initiated fires can develop, backed by a built-in DC safety switch and optional DC surge protection device for comprehensive protection of the full DC system from grid to module level.

Independent Unit Operation & High System Uptime: Each Synergy unit within the SE66.6K operates independently with its own DC input, power conversion stage, and AC output contribution — meaning a fault, service event, or planned replacement affecting one unit does not interrupt the operation of the remaining units, which continue converting and delivering power to the grid at their individual rated capacity throughout the service event, maintaining system-level energy production and minimizing the financial impact of individual unit maintenance requirements compared to conventional single-unit commercial inverters of equivalent total output.

Integrated DC Safety Switch & Optional Surge Protection: A built-in DC safety switch provides a lockable, code-compliant DC disconnect point at the inverter for installation and maintenance isolation without requiring a separate external DC disconnect enclosure — simplifying the balance-of-system design and reducing equipment and labor costs on commercial installations — while the optional DC surge protection device (SPD) protects the inverter's internal power electronics from transient overvoltage events caused by nearby lightning strikes and switching surges that would otherwise reach the inverter through the DC string wiring from the rooftop array.

Versatile Inverter Communication & Remote Management: The combination of RS485, Ethernet, and optional cellular GSM communication options gives installers and system operators the flexibility to integrate the SE66.6K into virtually any commercial site's network architecture — using wired Ethernet for sites with available IT infrastructure, RS485 for daisy-chained multi-inverter communication in larger commercial arrays, or cellular GSM for remote and rural installations where neither Ethernet nor RS485 network infrastructure is available — with all three pathways delivering the same full module-level monitoring and remote management capability through the SolarEdge monitoring platform and API.
