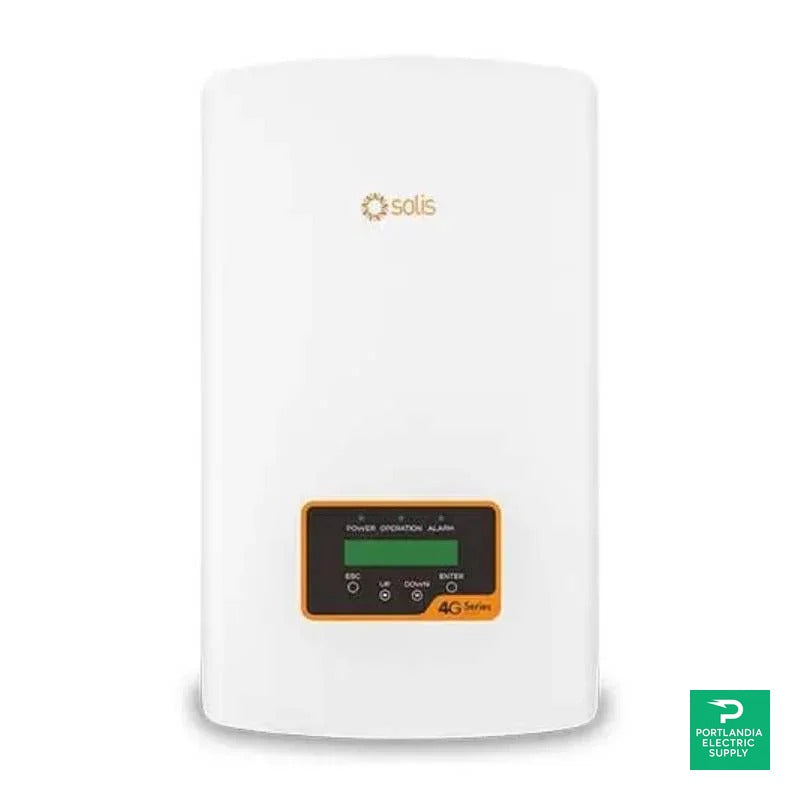

Solis 2.5kW 1-Phase 2-MPPT String Inverter - 1P2.5K-4G-US-SPRT

Solis 2.5kW Single Phase 2-MPPT Inverter - 1P2.5K-4G-US-SPRT

The Solis 1P2.5K-4G-US-SPRT inverter is designed specifically to maximize solar energy efficiency. This single-phase inverter features a 2-MPPT design, ensuring optimal power generation even under fluctuating solar conditions. Its robust performance, compact design, and adaptable connection to the grid highlight its contribution to sustainable energy solutions.

Product Features

High Conversion Efficiency

With a maximum efficiency reaching up to 98.1%, the Solis 1P2.5K-4G-US-SPRT ensures that solar power is converted to usable electrical energy with minimal losses, providing an effective and reliable power solution.

Advanced Technology Integration

The inverter is equipped with super high-frequency switching technology, which allows for a wider voltage range and low startup voltage. This ensures continuous power conversion and is particularly beneficial in optimizing power output in varying sunlight conditions.

Compact and Lightweight Design

The Solis 2.5kW inverter boasts a compact and lightweight design, facilitating easy installation and integration into existing solar setups while minimizing spatial requirements.

Flexible Grid Connectivity

This inverter is engineered for friendly and adaptable connections to the grid, ensuring compliance with various grid standards and enhancing grid interoperability with the integrated Export Power Management (EPM).

Precise MPPT Algorithm

Featuring a dual MPPT tracking system, the inverter precisely optimizes power output, which is instrumental in maximizing the efficiency of solar power systems under diverse environmental conditions.

How It Works

The Solis 1P2.5K-4G-US-SPRT inverter efficiently converts direct current (DC) generated by solar panels into alternating current (AC) suitable for home or business consumption. Its intuitive components work together to optimize energy conversion effectively.

DC Input System

The DC input system channels the energy collected by the solar panels through a maximum voltage limit of 550V, allowing for considerable energy input without overloading the inverter.

MPPT Tracking

The built-in dual MPPT (Maximum Power Point Tracking) components monitor and extract the maximum possible energy from each string of solar panels, adapting to changes in light intensity and panel temperature.

AC Output System

The converted power is transmitted through the AC output system, ensuring that the energy provided to your electrical grid is stable and consistent, with a rated output power of 2.5kW and peak output capabilities of 2.8kW.

Specifications

Specifications & Documents: Full specifications & datasheet for Solis 2.5kW 1-Phase 2-MPPT String Inverter - 1P2.5K-4G-US-SPRT
