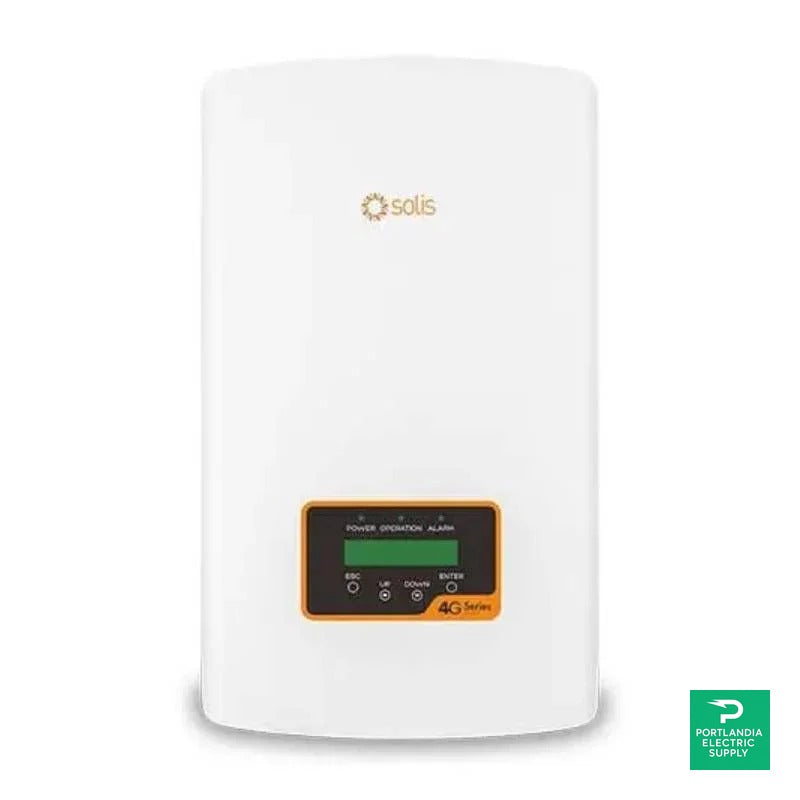

Solis 5.0kW 1-Phase String Inverter - 2-MPPT Design
The Solis 1P 5.0kW -4G-US-SPRT inverter is an exceptional choice for dependable energy conversion, integrating the advantages of high precision MPPT algorithms and a compact design. This inverter maximizes solar energy use with its superb efficiency of up to 98.1%, ensuring optimal performance and energy savings for residential and commercial uses.
Product Features
Outstanding Efficiency
Achieve a peak efficiency of 98.1%, providing maximum energy conversion and minimizing power losses, which significantly enhances overall solar panel efficiency.
Dual MPPT Technology
The dual MPPT (Maximum Power Point Tracking) feature allows precise energy tracking and harvesting from solar arrays, ensuring substantial performance gains even in complex systems.
Lightweight and Compact Design
Designed with a user-friendly compact form factor, this inverter is lightweight and easy to install, making it suitable for various settings and space constraints.
Advanced Connectivity
This inverter seamlessly integrates with grid systems through a user-friendly interface and offers multiple communication options, including RS485, Wi-Fi, and GPRS support as optional features.
Integrated Export Power Manager
Utilizes an Export Power Manager to effectively manage and regulate power output, ensuring compliance with regional grid requirements and enhancing operational flexibility.
How It Works
The Solis 1P5K-4G inverter intelligently manages power conversion from DC to AC while maintaining high performance and reliability. Its advanced processors accurately track maximum power points and adapt output levels to suit load demands.
MPPT Controllers
These controllers continuously analyze solar array outputs to determine the optimal power levels, enhancing overall system efficacy and energy production.
Grid Synchronization
Enables smooth and reliable integration with electrical grids, ensuring stable energy delivery while maintaining high power quality standards.
User Interface and Display
Equipped with a clear LCD display, this inverter provides real-time data on power generation and system status, facilitating easy monitoring and management.
Specifications
| Recommended max. PV power | 5.8kW |
| Max. input voltage | 600V |
| Rated voltage | 330V |
| Start-up voltage | 120V |
| MPPT voltage range | 90-520V |
| Max. input current | 11A/11A |
| Rated output power | 5kW |
| Max. efficiency | 98.1% |
| Ingress protection | IP65 |
| Operating ambient temperature range | -25 ~ +60°C |
Specifications & Documents: Full specifications & datasheet for Solis 5.0kW 1-Phase 2-MPPT String Inverter - 1P5K-4G-US-SPRT
