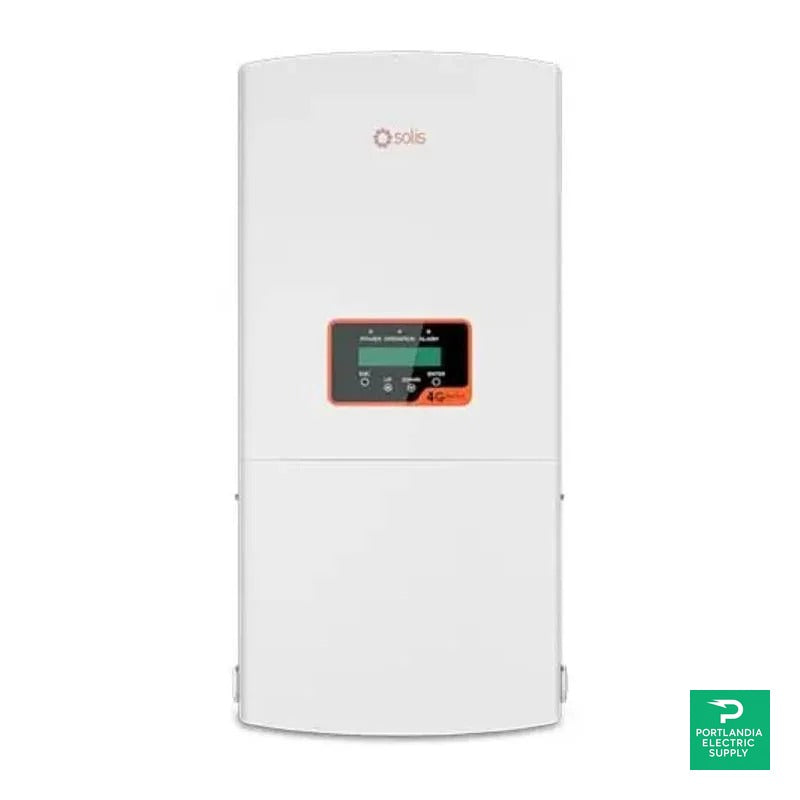

Solis 6.0kW 1-Phase 3-MPPT String Inverter
The Solis 6.0kW-4G-US-SPRT inverter is a state-of-the-art device designed to optimize solar energy conversion for residential use. This efficient inverter, featuring a single-phase operation with three Maximum Power Point Tracking (MPPT) systems, enhances energy capture and system performance. Tailored for easy integration with both 240V and 208V grid systems, it offers high efficiency, safety, and robust compliance with industry standards.
Product Features
Advanced MPPT Technology
Equipped with three MPPT systems, the Solis 1P6K-4G-US-SPRT increases energy harvest by optimizing the power output under varied weather conditions, maximizing efficiency and reliability.
High Efficiency Rating
Achieve substantial energy conversion with a peak efficiency of 97.8%, ensuring that you make the most out of your solar energy system.
Comprehensive Protection Features
Built-in protection mechanisms, including DC reverse-polarity protection, AC short circuit protection, and grid monitoring, ensure safe and reliable operation, safeguarding your investment.
Flexible Communication Protocols
With optional cellular and Wi-Fi capabilities, the inverter supports easy remote monitoring and control, enhancing user convenience and system management.
Ready for Future Compliance
Designed in compliance with current industry standards like UL 1741-SA, Rule 21, and SunSpec, it is prepared for upcoming regulation changes to protect your investment over time.
How It Works
The Solis inverter operates by converting the DC power generated by solar panels into AC power, which can be used by standard household appliances. It intelligently adapts to changes in solar irradiance levels to maximize power output and efficiency.
MPPT Adaptability
The inverter's MPPT systems continuously track the optimal voltage and current levels to maximize power extraction, making it highly efficient under fluctuating environmental conditions.
Inverter Control Panel
The user-friendly LCD display provides clear monitoring and configuration options, allowing for straightforward setup and real-time performance tracking.
Integrated Safety Mechanisms
An array of integrated protection features such as AFCI and rapid shutdown ensure compliance with safety regulations, preventing hazardous incidents effectively.
Specifications
| Max. DC Input Power (watts) | 7200 |
| Max. Voltage (volts) | 600 |
| Rated Voltage (volts) | 330 |
| Startup Voltage (volts) | 120 |
| Operating MPPT Voltage Range (volts) | 100-500 |
| Nominal Grid Voltage (volts) | 240/208 |
| Max. Output Current 240V (amps) | 25 |
| Peak Efficiency | 97.8% |
| Dimensions (W x H x D) | 342mm x 732mm x 249mm |
| Weight | 45.2 lbs (20.5 kg) |
