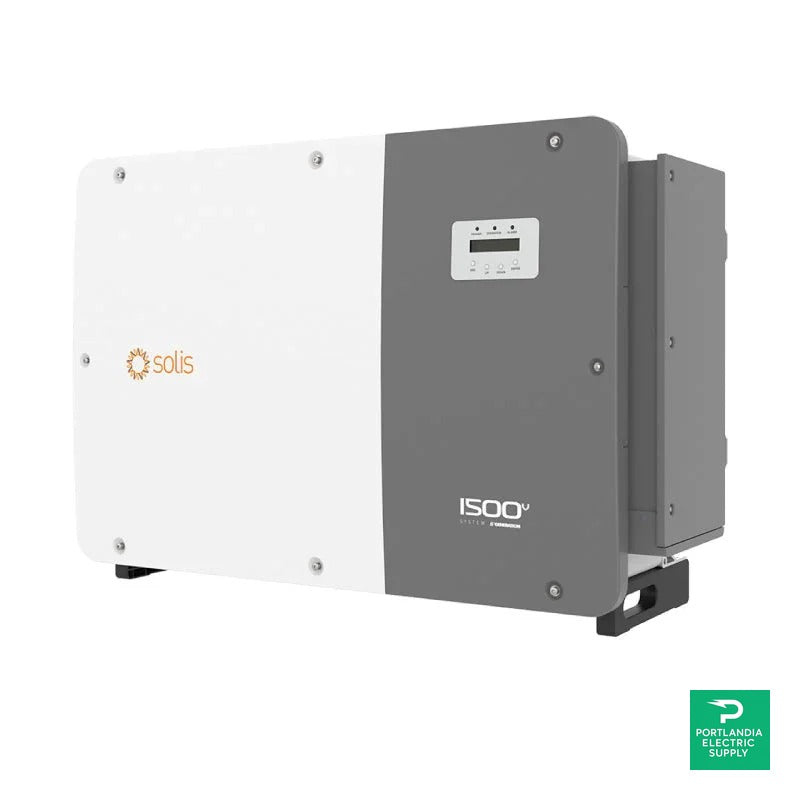

Solis 255kW 3-Phase 12-MPPT String Inverter with 5 Year Standard Warranty - 255K EHV-5G-US-PLUS
Solis 255kW 3-Phase 12-MPPT String Inverter with 5 Year Standard Warranty - 255K EHV-5G-US-PLUS
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0293
- MPN
- 255K EHV-5G-US-PLUS
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Solis. 50,000+ SKUs from 169 authorized brands.
Solis 255kW 3-Phase 12 MPPT Inverter
Commercial String Inverter | 1500 VDC | 5-Year Standard Warranty
99.0%
Max Efficiency
12
MPPT Trackers
255 kW
AC Output
Product Overview
The Solis 255K EHV-5G-US-PLUS is a robust, high-performance solar PV inverter designed to maximize energy capture with its advanced 12-MPPT configuration. Ideal for utility-scale installations, it offers superior efficiency of up to 99.0%, delivering reliable power conversion in diverse environmental conditions.
Why Choose Solis 255K EHV-5G?
- ✓ 12 independent MPPT trackers with 24 string inputs for maximum energy harvest
- ✓ 1500 VDC architecture reduces BOS costs and boosts system efficiency
- ✓ Type 4X enclosure with C5 anti-corrosion rating for harsh environments
- ✓ Intelligent fan-cooling for optimal thermal management
- ✓ 5-year standard warranty with extensions available
- ✓ Advanced grid support features including reactive power control
Technical Specifications
| Model | Solis-255K EHV-5G-US-PLUS |
| AC Output Power | 255 kW / 255 kVA @ 600 VAC (3Ø/PE, 60 Hz) |
| Max DC Voltage | 1500 VDC |
| MPPT Configuration | 12 independent trackers, 24 string inputs |
| MPPT Voltage Range | 480–1500 V |
| Max Efficiency | 99.0% |
| CEC Efficiency | 98.5% |
| Enclosure Rating | Type 4X (C5 anti-corrosion) |
| Cooling System | Intelligent fan-cooling |
| Warranty | 5-year standard (extensions available) |
Certifications & Compliance
✓ UL 1741 SA/SB Certified | ✓ IEEE 1547-2018 Compliant | ✓ Rule 21 | ✓ CA SGIP Eligible
Documentation
⏱ Lead Time: In Stock | Typical delivery: 4-10 days
Contact us for current availability and project pricing.
| SKU | PES-SPS-SIV-0293 |
|---|---|
| MPN | 255K EHV-5G-US-PLUS |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Warranty (years) | 5 |
No documents available for this product. Contact us to request documentation.
