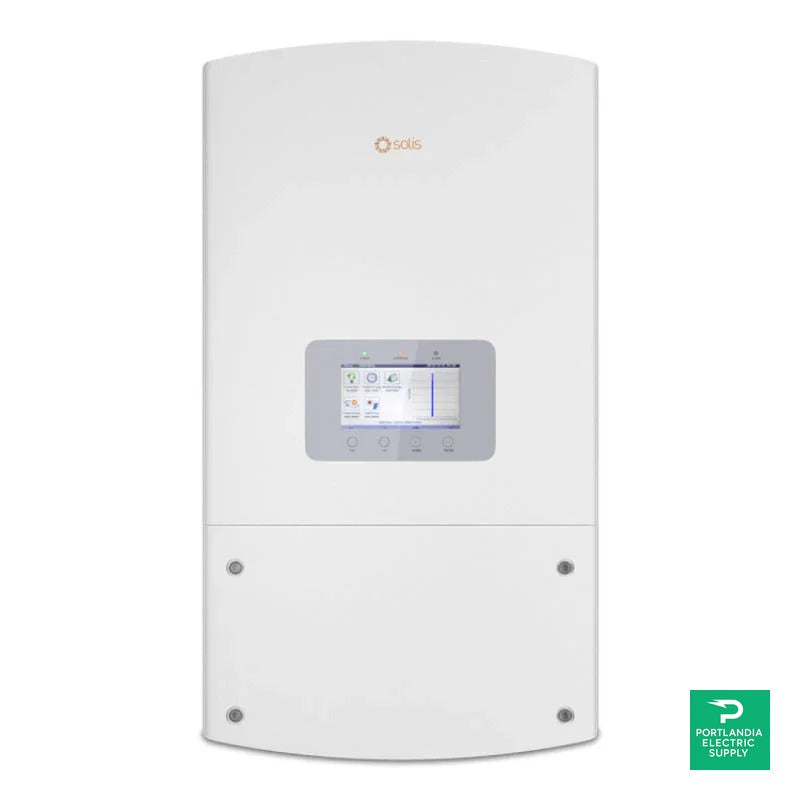

Solis 30kW 3-Phase Inverter with 10-Year Warranty
The Solis 30K-US-LSW inverter is a powerful and efficient solution designed for commercial and industrial applications, ensuring reliable energy conversion. Featuring top-notch efficiency, a transformer-less design, and superior safety mechanisms, this inverter is tailored to meet the needs of large-scale power systems, making it an ideal choice for maximum energy yield and system longevity.
Product Features
High Efficiency Performance
Achieve optimal energy conversion with Solis 30K-US-LSW, boasting a maximal efficiency of 98.6%, ensuring minimal energy loss and peak operational performance.
Advanced Cooling Design
Experience enhanced durability with the natural convection cooling concept, which ensures efficient heat dissipation without mechanical fans, contributing to quieter operation and reduced maintenance needs.
Flexible Connectivity Options
Seamlessly integrate your inverter with various systems using Modbus RTU communications and optional Wi-Fi, providing versatile connectivity to monitor and manage your setup efficiently.
Robust Safety and Protection
The Solis 30K-US-LSW is equipped with comprehensive protections, including DC reverse-polarity and anti-islanding protection, ensuring safe and reliable operation in all conditions.
User-Friendly Interface
Navigate through system information effortlessly with the intuitive 7-inch LCD display, offering clear and concise data visualization for user-friendly operation.
How It Works
Featuring a sophisticated transformer-less architecture, the Solis 30K-US-LSW inverter swiftly adapts to varying solar input conditions, expertly managing power conversion through its efficient MPPT and innovative safety features.
Multiple MPPT Channels
Utilize the four MPPT channels to maximize energy harvesting from different sources, boosting the overall efficiency and flexibility of the PV system.
Integrated Safety Features
Ensure operational safety with integrated AFCI to prevent potential fires caused by DC arcs, enhancing the system€™s reliability.
Efficient Power Output
Benefit from its substantial output capacity, providing industry-leading power factor and current handling, maintaining steady energy delivery to the grid.
Specifications
| Model Name | Solis-30K-US-LSW |
| Recommended Max. PV Power | 45 kW |
| Max. Input Voltage | 1000 V |
| Start-Up Voltage | 350 V |
| MPPT Voltage Range | 200 - 800 V |
| Rated Output Power | 30 kW |
| Max. Apparent Output Power | 30 kVA |
| Max. Efficiency | 98.6% |
| Ingress Protection | TYPE 4X |
| Operating Temperature Range | -13 °F to 140 °F (-25°C to 60°C) |
| SKU | PES-SPS-SIV-0306 |
|---|---|
| MPN | 30K-US-LSW |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Voltage | |
| Warranty (years) | 10 |
