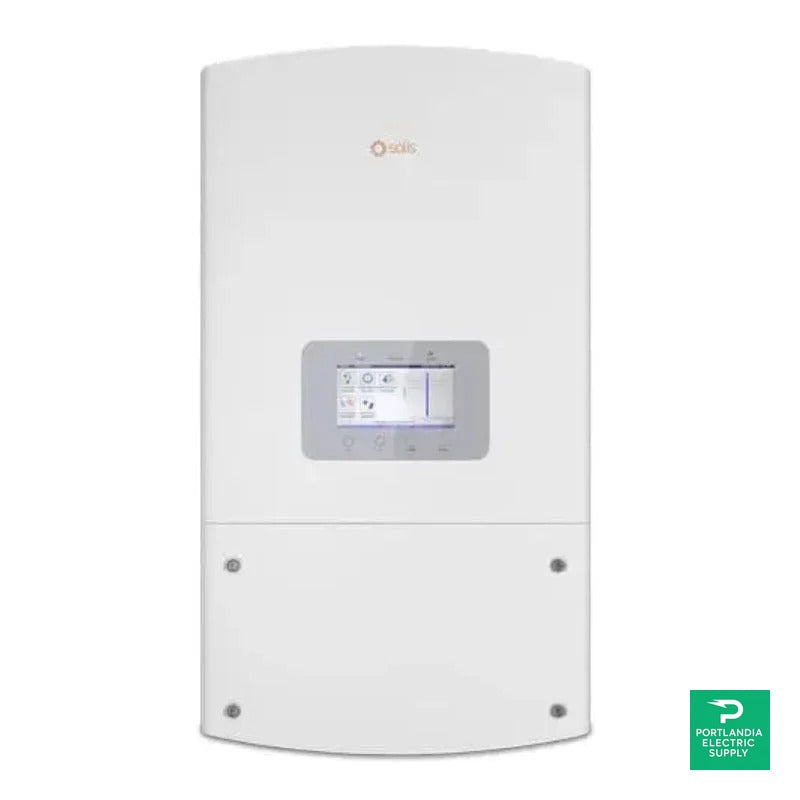

Solis 36kW 3-Phase 4-MPPT W/Fan 480VAC String Inverter
Introducing the Solis 36K-US-F-LSW, a top-tier 36kW inverter designed for efficiency and reliability in commercial, industrial, and utility applications. This inverter, featuring 4 MPPTs and a 480VAC output, ensures optimal energy conversion with a remarkable 98.6% maximum efficiency. Packed within a robust, corrosion-resistant NEMA 4X enclosure, its transformerless design is ideal for projects requiring substantial power output combined with smart technology integration.
Product Features
Advanced Efficiency
Experience superior power conversion with a stunning 98.6% max efficiency. The Solis 36K-US-F-LSW inverter ensures minimal energy loss, optimizing performance in various conditions.
Durable and Compact Design
This inverter boasts a lightweight and compact form that's housed in a durable NEMA 4X enclosure, offering excellent protection against environmental factors while conserving space.
Versatile Application
Ideal for broad application use, this inverter supports commercial, industrial, and utility-scale deployments, enhancing its adaptability to different energy needs.
Multi-MPPT Design
Incorporating 4 MPPTs, the Solis 36K-US-F-LSW ensures efficient energy capture from photovoltaic systems with fast response times under diverse solar conditions.
Integrated Communication
The inverter includes multiple communication options, such as RS-485 Modbus, with Wi-Fi capabilities for seamless integration and monitoring through the Solis Mobile App.
How It Works
The Solis 36K-US-F-LSW operates by efficiently converting DC power generated by solar panels into AC power suitable for grid use, employing advanced technology for optimal performance.
DC Input Management
With a maximum input power of 54kW and a flexible voltage range, the inverter's input management maximizes power intake and conversion efficiency.
AC Output Capability
Capable of delivering a consistent 36kW output to the grid, this inverter ensures reliable energy supply with minimal distortion.
Protection Features
Equipped with comprehensive protection features, including integrated AFCI and rapid shutdown capabilities, the inverter safeguards system integrity.
Specifications
| Rated Output Power | 36 kW |
| Max. Efficiency | 98.6% |
| Max. Input Voltage | 1000 V |
| Rated Grid Voltage | 3/PE, 480 V |
| Operating Temperature Range | -13 F to 140 F |
| Cooling Concept | Natural convection |
| Dimensions (W*H*D) | 21.1*38.0*14.1 in |
| Weight | 127 lbs |
| Communication | RS485, Modbus RTU |
| Ingress Protection | TYPE 4X |
| SKU | PES-SPS-SIV-0151 |
|---|---|
| MPN | 36K-US-F-LSW |
| Manufacturer | Solis |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Shop by inverter type | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number | |
| Voltage | |
| Warranty (years) | 10 |
No documents available for this product. Contact us to request documentation.
