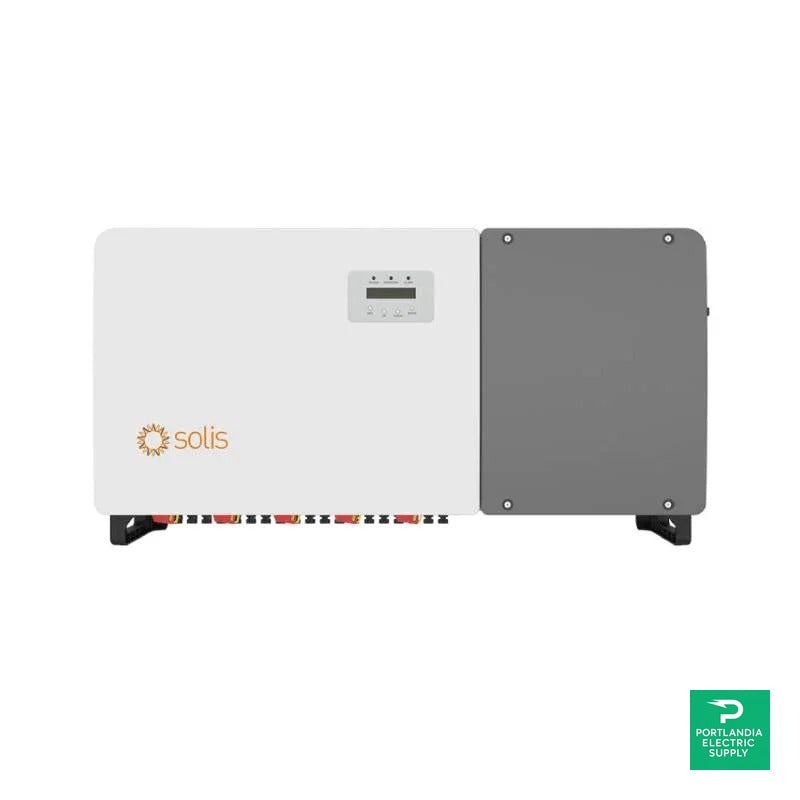

Solis 75kW 3-Phase 8-MPPT Inverter with Advanced AFCI Protection
The Solis 75kW-5G-US-APST inverter offers a robust and efficient solution for large-scale solar power systems, incorporating state-of-the-art MPPT technology and advanced safety features. With a substantial energy conversion efficiency, this inverter maximizes power generation and reliability, ensuring optimal performance for your solar installations. Designed for easy integration, it provides seamless monitoring and control, aligning with modern smart grid requirements.
Product Features
Intelligent MPPT Technology
Equipped with 8 MPPTs, the Solis 75K-5G-US-APST enhances PV energy harvesting, maximizing output even under diverse weather conditions.
Advanced AFCI Protection
Ensures a high level of safety with integrated AFCI technology, proactively mitigating fire risks with precision.
Robust Energy Efficiency
Achieve up to 98.8% efficiency, leveraging advanced algorithms to enhance power yield and support bi-facial solar panels.
Comprehensive Compliance
Meets crucial standards including UL 1741 SA and IEEE 1547, aligning with CA Rule 21 to facilitate grid compatibility.
Smart Monitoring Capabilities
Native support for intelligent string monitoring and I-V curve scanning ensures accurate performance tracking and system diagnostics.
How It Works
The Solis 75K-5G-US-APST inverter operates by converting DC power from solar panels into AC power for grid or consumption use. Its multi-MPPT configuration optimizes energy acquisition by managing different string voltages efficiently, while smart grid integration facilitates enhanced control and data communication features.
Efficient Power Conversion
The inverter efficiently converts incoming DC electricity into usable AC electricity for domestic, commercial, or grid distribution.
Advanced Safety Systems
Embedded protective features such as AFCI and PID recovery ensure system safety and enhance module longevity.
Communication Interfaces
Features RS485 and Ethernet connectivity, with optional Wi-Fi and cellular support for remote monitoring and firmware upgrades.
Specifications
| Max. Input Voltage | 1000 V |
| Rated Voltage | 600 V |
| Start-up Voltage | 195 V |
| MPPT Voltage Range | 180-1000 V |
| Rated Output Power | 75 kW |
| Max. Efficiency | 98.8% |
| Protection Features | DC reverse-polarity, Ground fault, Anti-islanding, AFCI |
| Dimensions (W*H*D) | 41.9*22.3*13.6 in (1065*567*344.5 mm) |
| Weight | 187 lbs (85 kgs) |
| Rated Grid Voltage | 3Ф/PE, 480 V |
| SKU | PES-SPS-SIV-0098 |
|---|---|
| MPN | 75K-5G-US-APST |
| Manufacturer | Solis |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Warranty (years) | 10 |
