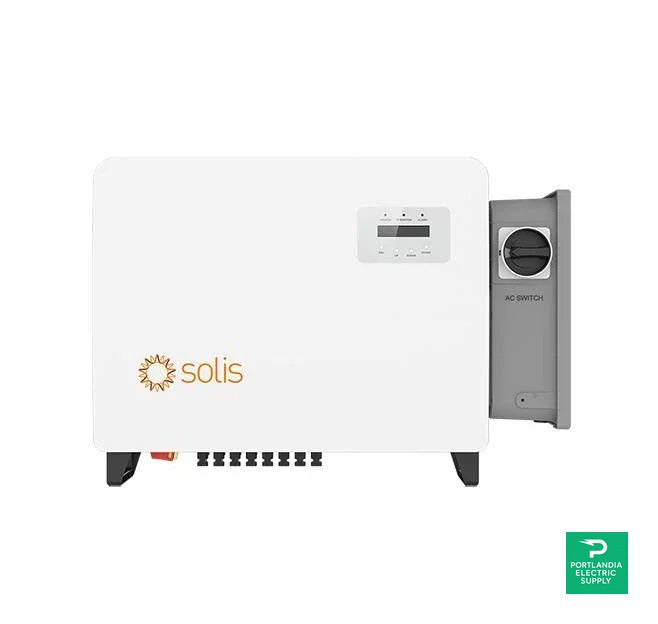

Solis Three Phase Grid-Tied PV String Inverters - S6-GC40K-US
The Solis S6-GC40K-US inverter is designed to enhance the efficiency of photovoltaic systems by storing energy to support the transition towards a zero-carbon life. Incorporating advanced features, this inverter serves both residential and commercial solar installations, offering reliable and efficient energy conversion to meet diverse power needs.
Product Features
High Efficiency Performance
The Solis S6-GC40K-US inverter, with its high efficiency rating, ensures optimal energy conversion, capturing maximum sunlight to power your system effectively, resulting in reduced power loss.
Robust Safety Mechanisms
Equipped with comprehensive safety features such as ground fault monitoring, anti-islanding protection, and integrated arc-fault circuit interrupter (AFCI), this inverter prioritizes user safety while maintaining uninterrupted power delivery.
Advanced Cooling System
Featuring an intelligent redundant fan-cooling mechanism, the S6-GC40K-US maintains efficient operation by effectively managing the system temperature to prevent overheating and ensure longevity.
Flexible Connection Options
Seamlessly integrates with MC4 connectors for DC input and utilizes OT terminals for AC connections, offering versatile installation options that suit various system configurations.
Comprehensive Monitoring
With integrated support for RS485 and optional Wi-Fi or cellular communication, the inverter allows remote monitoring and management, providing real-time data and system performance insights.
How It Works
This inverter converts the DC power generated by solar panels into AC power for use in homes or sent back to the grid. It efficiently manages this conversion process while ensuring maximum power output and safety.
DC to AC Conversion
The primary function of the inverter is to convert direct current (DC) from the solar panels into alternating current (AC), which is usable within household electrical systems or supplied back to the grid.
MPPT Tracking
Equipped with multiple maximum power point tracking (MPPT) capabilities, it optimally aligns with the panel's performance to ensure maximum energy harvest under varying sunlight conditions.
Grid Management
Supports active grid management with integrated functions to maintain stability and adapt to grid requirements, ensuring consistent performance and power output.
Specifications
| Maximum Input Voltage | 1000 V |
| Rated Voltage | 600 V |
| Start-up Voltage | 195 V |
| MPPT Voltage Range | 180-1000 V |
| Maximum Input Current | 10*32 A |
| Max. Short Circuit Current | 10*50 A |
| Rated Output Power | 90 kW |
| Max. Apparent Output Power | 90 kVA |
| Rated Grid Voltage | 3Ф/PE, 480 V |
| Max. Efficiency | 98.8% |
| SKU | PES-SPS-SIV-0052 |
|---|---|
| MPN | S6-GC40K-US |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
