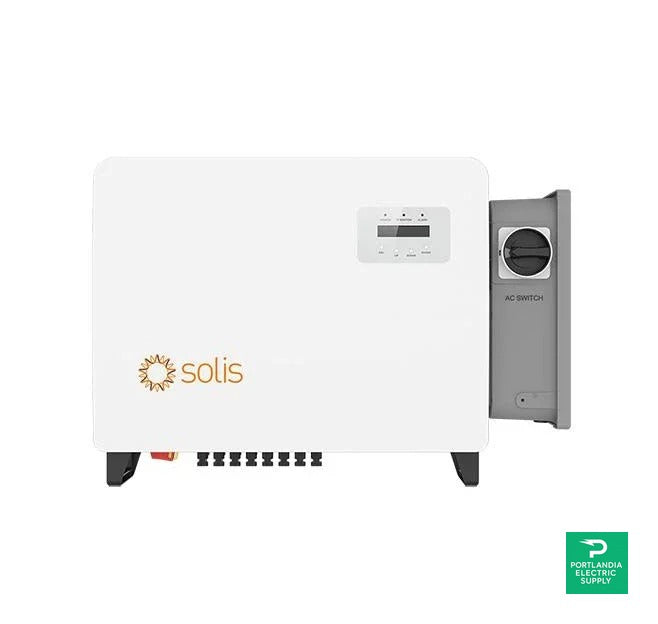

Solis Three Phase Grid-Tied PV String Inverters - Model S6-GC50K-US
The Solis S6-GC50K-US is a cutting-edge three-phase grid-tied inverter designed for high-efficiency energy management in photovoltaic systems. This powerful product integrates seamlessly into solar installations, providing users with reliable energy conversion. Its compact design and advanced technological features are crafted to support substantial energy outputs, ensuring both functionality and sustainability in residential and commercial solar applications.
Key Features
Advanced Grid Compatibility
The Solis S6-GC50K-US inverter features exceptional grid compatibility, supporting various grid standards to ensure stable energy distribution in diverse environments, making it profoundly versatile.
High Efficiency Conversion
Equipped with state-of-the-art technology, this inverter achieves up to 98.8% efficiency, optimizing energy conversion and maximizing output from your PV system.
Robust Build Quality
The inverter is built to last, featuring Type 4X protection against harsh environmental conditions, ensuring durability in a wide range of climates.
Intelligent Monitoring
With integrated intelligent string monitoring and smart I-V curve scanning, the S6-GC50K-US offers real-time data analysis, allowing for efficient system management and troubleshooting.
Safety First Approach
The system includes comprehensive safety features such as AFCI protection, ground fault monitoring, and surge protection, providing peace of mind and safeguarding your setup from potential issues.
How It Works
The Solis S6-GC50K-US inverter operates as a bridge between solar panels and the electrical grid, converting DC power from solar panels into AC power for home or business use. Its sophisticated control systems ensure optimal output and integrate advanced safety features for efficient and secure operation.
MPPT Technology
This inverter employs Maximum Power Point Tracking (MPPT) technology to maximize energy harvest by continuously optimizing power output from each solar panel array.
Integrated Power Controls
The inverter's integrated power controls facilitate seamless interaction with the grid, adjusting to varying conditions and maintaining optimal power flow.
Customizable Interfaces
Offering a range of connectivity options, this inverter includes RS485 and optional Wi-Fi or Cellular capabilities for remote monitoring and control through the SolisCloud platform.
Specifications
| Max. Input Voltage | 1000 V |
| Rated Voltage | 720 V |
| String Current | up to 16 A |
| Operating Temperature Range | -22°F to 140°F (-30°C to +60°C) |
| Max. Efficiency | 98.7% - 98.8% |
| Protection Rating | Type 4X |
| Communication Interfaces | RS485, Wi-Fi, Cellular |
| Dimensions (W*H*D) | 41.9*22.3*13.6 inches |
| Weight | 200 lbs (91 kgs) |
| Compliance | UL1741SB, IEEE 1547-2018 |
