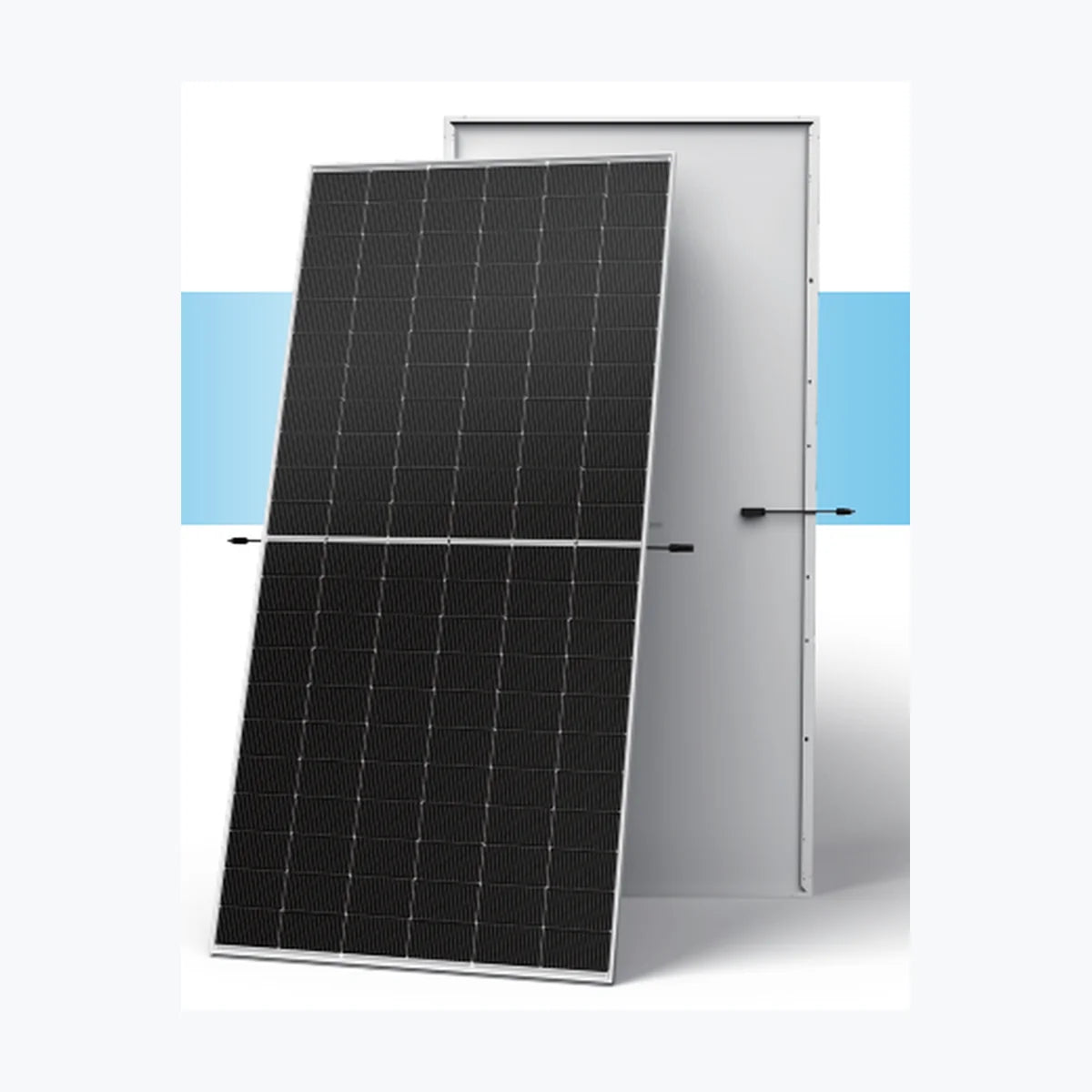

Trina Solar 625W TOPCon N-Type Bifacial Solar Panel
Model No. 625 | TOPCon, N-type | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Trina Solar 625W TOPCon N-Type bifacial solar panel is built for high output and dependable long-term performance. It combines advanced cell technology with a strong dual-glass design for improved durability. The module delivers 625 Wp of maximum power and reaches 23.1% efficiency. It is designed for utility-scale and commercial installations that need strong energy yield and stable operation. Its 132-cell layout supports efficient system design and better space utilization. The panel also offers a 12-year product warranty and a 30-year power warranty profile, making it a strong fit for demanding projects.
Key Benefits
High Power Output: The module delivers up to 625 Wp for stronger project-level energy generation.
High Efficiency: With 23.1% efficiency, the panel supports greater energy harvest from limited roof or ground space.
TOPCon N-Type Technology: The N-type TOPCon platform is designed for better performance and long-term reliability.
Bifacial Energy Gain: The bifacial dual-glass structure can capture reflected light from the rear side for extra yield.
Low Degradation Profile: The warranty curve supports 99% in year one and 87.4% at 30 years.
Harsh-Environment Ready: Anti-reflection glass, IP68 protection, and a robust frame support stable outdoor operation.
How It Works
This solar panel converts sunlight into electricity through advanced monocrystalline N-type cells. The TOPCon structure helps improve carrier movement and reduce electrical losses. That supports higher efficiency across a wide operating range. The bifacial format also allows the rear side to contribute additional output when light reflects from nearby surfaces. Dual-glass construction helps protect the module while supporting long service life. The panel is also designed to perform well in real-world conditions, including temperature changes, low irradiation, and large system voltages. This makes it suitable for modern solar arrays that prioritize output, durability, and long-term value.
Sunlight Conversion: The monocrystalline cells absorb sunlight and convert it into usable direct current power. The design supports efficient energy conversion across the module surface.
TOPCon Cell Structure: TOPCon technology helps reduce resistance losses and improve electrical performance. That contributes to higher module efficiency and better energy yield.
Bifacial Dual-Glass Design: The module can use reflected light from the rear side when installed above reflective surfaces. The dual-glass build also strengthens protection against outdoor wear.
Technical Specifications
| Brand | Trina Solar Co., Ltd. |
| Model Number | 625 |
| Technology | TOPCon, N-type |
| Product Type | Bifacial dual-glass monocrystalline module |
| Maximum Power (Pmax) | 625 Wp |
| Voltage at Maximum Power (Vmpp) | 41.7 V |
| Current at Maximum Power (Impp) | 15 A |
| Open Circuit Voltage (Voc) | 49.9 V |
| Short Circuit Current (Isc) | 15.92 A |
| Panel Efficiency | 23.1% |
| Second Power Rating | 478 Wp |
| Second Vmpp | 39.1 V |
| Second Impp | 12.21 A |
| Second Voc | 47.3 V |
| Second Isc | 12.83 A |
| Panel Efficiency Range | 22.2 ~ 23.3% |
| Power Range | 600 ~ 630 Wp |
| Power Tolerance | 0 ~ +0.81% |
| Temperature | 43±2 °C |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.24%/°C |
| Temperature Coefficient of Isc | 0.04%/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 35 A |
| Panel Dimensions | 2382 x 1134 x 30 mm |
| Weight | 30 kg |
| Cell Number | 132 |
| Glass Type | Anti-reflection coating glass |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 compatible |
| Product Warranty | 12 years |
| Power Warranty | 1 year of 99%, 30 years of 87.4% |
| Total Degradation Rate | 0.42% |
| Seller Name | Trina Solar Co., Ltd. |
| Country of Origin | China |
Certifications & Compliance
Certifications: IEC61215, IEC61730, IEC61701, IEC62716, UL61730, ISO 9001, ISO 14001, ISO14064, ISO45001, ISO14067, ISO14025
Inverter Compatibility: Compatible with mainstream system components and 1500V solar systems
Environmental: Certified low-carbon footprint with verified sustainability and quality management standards
Warranty: 12-year product warranty and 30-year power warranty, with 99% output in year one and 87.4% at year 30
