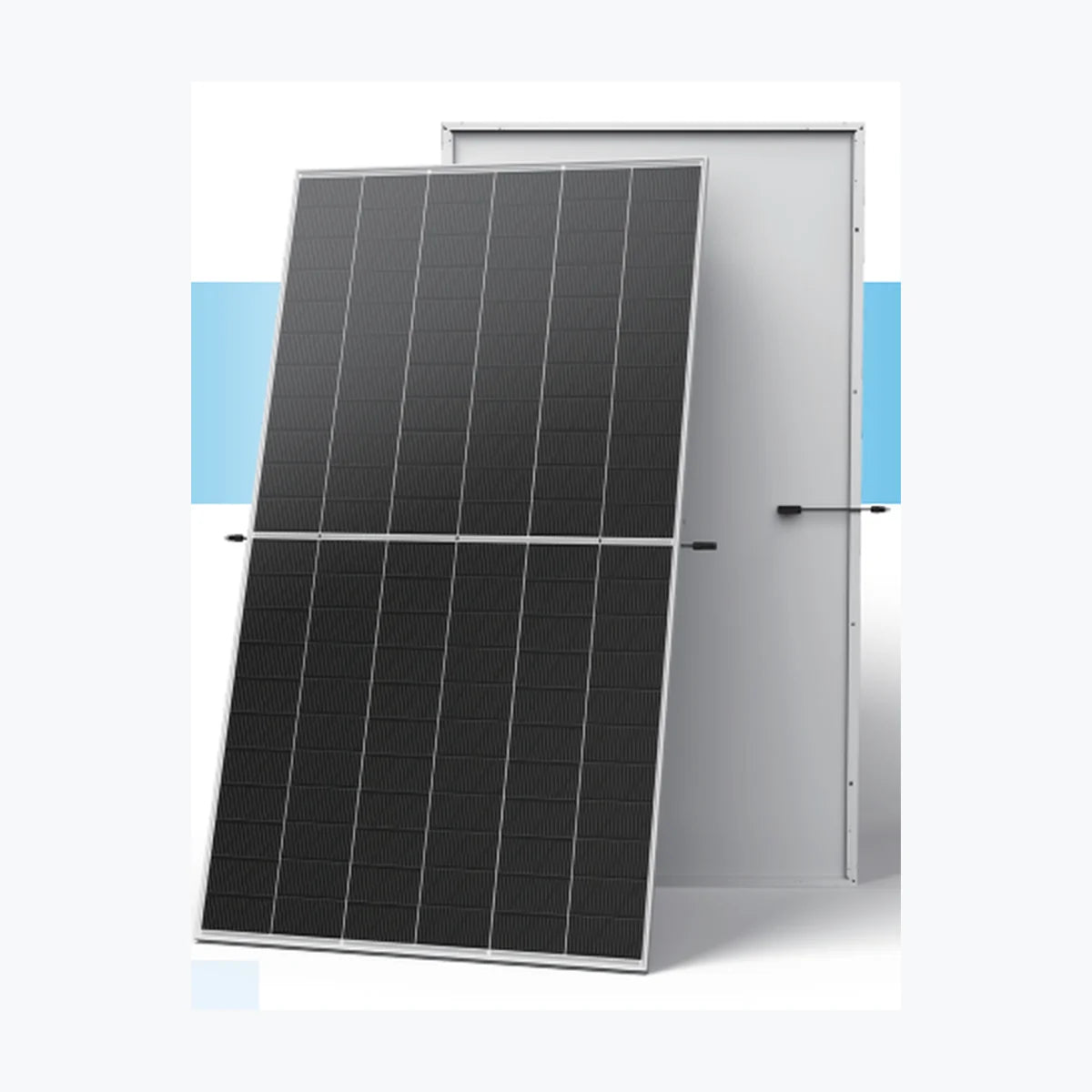

Trina Solar 695 695W N-Type TOPCon Monocrystalline Solar Panel
Model No. 695 | N-Type TOPCon | 132 Half-Cell | Monocrystalline | 1500V System Voltage
Product Overview
The Trina Solar 695W solar panel is built for high-output performance and dependable long-term energy generation. It uses N-type TOPCon monocrystalline technology to improve efficiency and support strong yield in demanding projects. The module is designed for utility-scale and commercial installations that need reliable power density. Its large-format construction helps maximize installed capacity while maintaining stable electrical performance. With a 12-year product warranty and a 25-year power warranty, this panel is positioned for projects that value durability and predictable output.
Key Benefits
High Power Output: Delivers up to 695Wp for strong energy production in space-limited systems.
High Efficiency Design: Reaches 22.4% efficiency, helping convert more sunlight into usable electricity.
N-Type TOPCon Technology: Supports improved performance and long-term stability through advanced cell architecture.
Low Degradation Rate: Features only 0.42% annual degradation, helping preserve output over time.
Strong System Compatibility: Works with 1500V systems and uses MC4 connectors for straightforward integration.
Built for Harsh Conditions: Supports operation from -40 to 70 °C and includes IP68 junction box protection.
How It Works
This solar panel converts sunlight into direct current through high-performance N-type monocrystalline cells. The TOPCon structure supports better electron flow and helps reduce power loss. Its 132-cell design increases the active generation area and supports higher voltage and current output. Anti-reflection glass improves light capture across changing angles and conditions. The half-cell format helps manage electrical resistance and improves shading tolerance. Together, these features help the module deliver stable energy production in large-scale solar systems.
N-Type TOPCon Cell Conversion: Sunlight is absorbed by N-type cells and converted into electrical energy. The TOPCon layer supports efficient charge collection and reduced recombination losses.
Half-Cell Power Architecture: The 132 half-cell layout helps lower resistance inside the module. It also improves performance under partial shading and uneven light conditions.
Weather-Ready Module Design: Anti-reflection glass, anodized aluminium framing, and IP68 protection support reliable outdoor operation. These components help the panel perform consistently in tough environments.
Technical Specifications
| Technology | TOPCon, N-type |
| Type | Monocrystalline |
| Model Number | 695 |
| Seller Name | Trina Solar Co., Ltd. |
| Country of Origin | China |
| Maximum Power (Pmax) | 695 Wp |
| Voltage at Maximum Power (Vmpp) | 40.3 V |
| Current at Maximum Power (Impp) | 17.25 A |
| Open Circuit Voltage (Voc) | 48.3 V |
| Short Circuit Current (Isc) | 18.28 A |
| Panel Efficiency | 22.4 % |
| Power Tolerance | 0 ~ +0.5 % |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 30 A |
| Module Dimensions | 2384 x 1303 x 33 mm |
| Weight | 32.9 kg |
| Cell Number | 132 |
| Glass Type | Anti-reflection coating glass |
| Glass Thickness | 3.2 mm |
| Frame Type | Anodized aluminium |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 |
| Operating Temperature Range | -40 to 70 °C |
| Temperature | 43±2 °C |
| Temperature Coefficient of Pmax | -0.29 %/°C |
| Temperature Coefficient of Voc | -0.24 %/°C |
| Temperature Coefficient of Isc | 0.04 %/°C |
| Cable Cross Section | Not specified |
Certifications & Compliance
Certifications: IEC61215, IEC61730, IEC61701, IEC62716, UL61730.
Inverter Compatibility: Suitable for mainstream 1500V solar system components.
Environmental: ISO 9001, ISO 14001, ISO14064, ISO45001, ISO14067, ISO14025.
Warranty: 12-year product warranty and 25-year power warranty, with 89.4% remaining output at year 25 and 0.42% total degradation rate.
