Enphase Hold Down Kit For PV Breakers In IQ Combiner - X-IQ-NA-HD-125A

Enphase Hold Down Kit for PV Breakers in IQ Combiner - X-IQ-NA-HD-125A

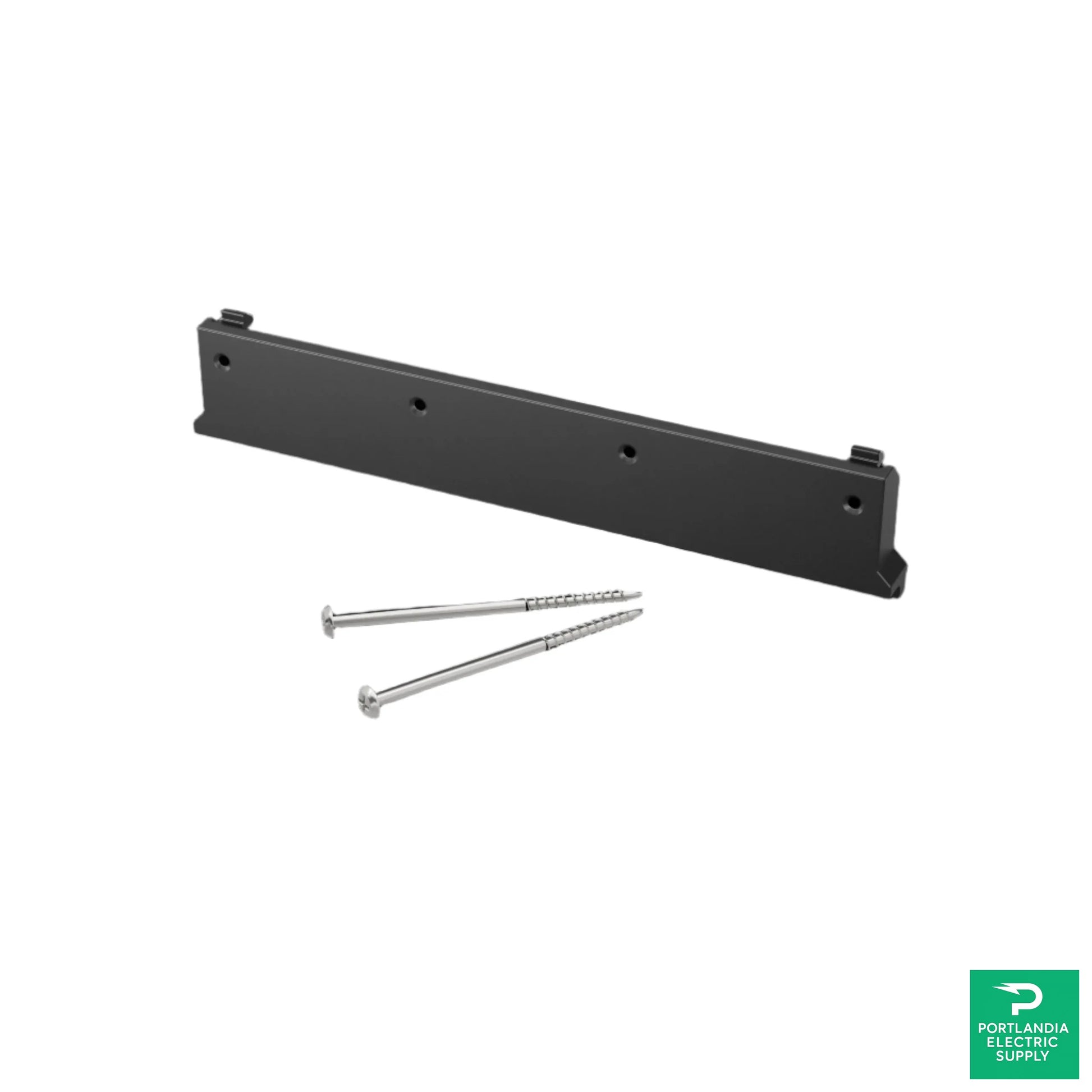

The Enphase Hold Down Kit, model X-IQ-NA-HD-125A, is essential for securely installing IQ8 PV breakers within the IQ Combiner 4/4C. This kit ensures a safe and stable connection for up to two breakers on the same side of the busbar, providing reliable operation and user assurance. With its straightforward installation process, this kit enhances the functionality of your solar energy system by ensuring everything stays in place, even under challenging conditions.

Product Features

Easy Installation

This hold down kit simplifies the installation of breakers in the IQ Combiner 4/4C by including a retainer and screws. The Enphase X-IQ-NA-HD-125A ensures a smooth setup, allowing installers to quickly and confidently secure each breaker, which saves time and effort during the installation process.

Secure Connections

Designed specifically for IQ8 PV breakers, this kit enhances operational safety by supporting up to two circuit breakers tightly. The hold down mechanism prevents accidental disconnection, which is crucial for maintaining the efficiency of the solar power system and ensuring user safety.

High-Quality Components

The components of the Enphase Hold Down Kit are crafted from durable materials, ensuring longevity and resistance to wear. This quality ensures that the kit can withstand various environmental conditions without compromising its performance, contributing to the overall reliability of the installation.

Compatible Design

This hold down kit is meticulously designed to fit seamlessly within the IQ Combiner 4/4C. By following the included instructions, users can achieve a perfect fit that optimizes the setup of the solar energy system, enhancing overall performance.

Includes Essential Hardware

The kit comes with everything needed for installation, including a retainer and screws. This all-in-one solution simplifies the installation process, ensuring that users have what they need to complete their setups without requiring additional components.

How It Works

The Enphase Hold Down Kit operates by utilizing a robust retainer that snaps securely into place over a designated hole in the IQ Combiner exterior. Once in position, circuit breakers can be installed directly onto it, providing a strong, reliable hold. The design allows for both ease of installation and accessibility, ensuring that your electrical connections remain secure throughout operation.

Retainer Mechanism

The innovative retainer snaps into the interior backpan, creating a stable anchor point for the circuit breakers. This design helps to distribute weight and load across the system, reducing stress on individual components and maximizing durability.

Screw Assembly

The two included screws ensure that the circuit breakers remain tightly fastened to the retainer, maintaining optimum electrical contact and minimizing any potential risk of disconnection during use.

Safety Integration

Built with safety in mind, the kit includes several precautions to prevent damage to the busbar and related components, ensuring that all installations comply with safety standards. These safety features are particularly important during initial setup and in the event of system maintenance.
