What is the Victron Orion-Tr 24/24-12A used for?

The Orion-Tr 24/24-12A is a DC-DC converter designed to convert 24V input voltage to a stable 24V output. It is ideal for applications requiring isolated voltage conversion, such as RVs, boats, and off-grid systems.

Is the output voltage adjustable?

Yes, the output voltage can be adjusted from 20V to 30V using the built-in potentiometer, allowing users to tailor power supply according to system requirements.

Does it have protection features?

Absolutely. The Orion-Tr includes overload protection, short circuit protection, and thermal protection to prevent damage to the device and connected components.

Can I control the Orion-Tr remotely?

Yes, it features a remote on/off capability, making integration with other systems easier without needing high-current switches.

What is the maximum output current?

The Victron Orion-Tr 24/24-12A provides a continuous output current of up to 12A, suitable for powering multiple 24V devices safely.

Home
Batteries Accessories
Victron Orion-Tr 24/24-12A (280W) - ORI242428110

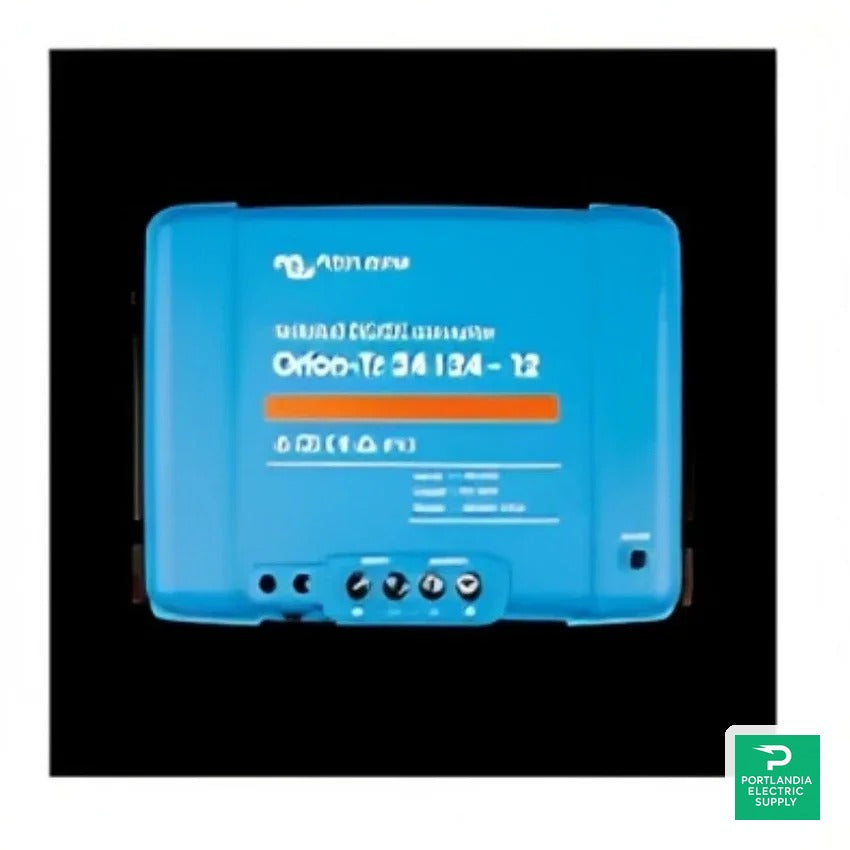

Victron Orion-Tr 24/24-12A (280W) - ORI242428110 — front view

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Victron Orion-Tr 24/24-12A (280W) - ORI242428110

Trusted by 1,000s of Contractors & Installers

Available to Order

SKU PES-PA-ELC-0624

OEM Authorized Dealer Full OEM Warranty

$110.90 USD

$ $110.90 USD

Sold out

LOWEST PRICE Save $4.10 vs the lowest of 1 tracked competitor

Quantity

Datasheet

Manual

Warranty

Multi-unit or project order?Get a Volume Quote →

Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

SKU: PES-PA-ELC-0624
MPN: ORI242428110
Min purchase: 10 pcs

Complete the job

Compatible gear contractors pair with this item

Hybrid inverter Sol-Ark 18kW Inverter SA-18K-2P 48VDC 120/240V | Outdoor Grid-tied and Off-grid

$6,106.00

Battery rack EG4 3-Slot Battery Rack â€“ Heavy-Duty Indoor Cabinet with 300A Busbars

$439.99

Secure Payment Methods

Available to Order

Order today — we confirm lead time at checkout

Volume Pricing

Call 888-876-0007 for a pallet-quote

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Victron Orion-Tr 24/24-12A (280W) - ORI242428110 $110.90

Specifications

Datasheet

Power Rating 280W

Amperage 12A

Certifications<

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Victron Energy ORI242428110 Orion-Tr 24/24-12A (280W) - ORI242428110

The Victron Orion-Tr 24/24-12A DC-DC converter is designed for dependable voltage conversion, making it an essential component in various applications. With a powerful 280W output, this isolated converter ensures optimal performance while enhancing the efficiency of your system. Its robust design allows for versatility in different environments, making it a favored choice among enthusiasts looking for quality and reliability from Victron Energy.

Product Features

Isolated DC-DC Conversion

This Victron Energy converter utilizes isolated technology to provide safe and stable voltage adjustments, which minimizes the risk of electrical issues. It offers enhanced protection for sensitive components by ensuring secure and reliable power supply, key for any critical setup.

Adjustable Output Voltage

The output voltage can be easily adjusted, enabling users to tailor the power supply according to their specific needs. This flexibility makes the Orion-Tr suitable for diverse applications where precise voltage is vital for optimal performance.

Overload and Short Circuit Protection

The Orion-Tr converter features built-in overload and short circuit protection. This safeguards both the device and connected components from potential damage, enhancing the longevity and reliability of the entire system.

Remote On/Off Feature

This model allows for a remote on/off control, facilitating user convenience by eliminating the need for high current switches. This feature makes it easy to integrate with existing systems, contributing to a smoother operational flow.

Thermal Protection for High Temperatures

Equipped with thermal protection, this converter automatically reduces output current in high ambient temperatures. This ensures consistent operation without overheating, providing peace of mind during extended use.

How It Works

The Victron Orion-Tr DC-DC converter operates efficiently by transforming the input voltage to a desired output voltage suitable for diverse electrical components. With its simple installation and user-friendly design, it provides accessible configurations for both technical and non-technical users.

Input Connection

The input connection harnesses the incoming voltage from your power source, ensuring it is ready for adjustment to the required output voltage. This initial phase is critical for ensuring proper functionality of the converter.

Output Adjustment Mechanism

The built-in potentiometer allows users to adjust the output directly, making it user-friendly for those familiar with electrical systems. This feature highlights its flexibility by allowing fine-tuning to meet specific power requirements.

Safety Features

The combination of thermal and short circuit protections enhances the safety of the device and connected loads. These features are imperative to maintaining system integrity and protecting sensitive equipment.

Specifications

Model	Victron Orion-Tr 24/24-12A
Input Voltage Range	16-35V
Output Voltage	24V nominal, adjustable between 20-30V
Max Continuous Output Current	12A
Overload Protection	Yes
Dimensions (HxWxD)	100 x 113 x 47 mm
Weight	0.42 kg
Working Temperature Range	-20 to +55 °C
Efficiency	87%
Protection Class	IP43

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Victron Energy ORI242428110 Orion-Tr 24/24-12A (280W) - ORI242428110

Product Features

Isolated DC-DC Conversion

Adjustable Output Voltage

Overload and Short Circuit Protection

Remote On/Off Feature

Thermal Protection for High Temperatures

How It Works

Input Connection

Output Adjustment Mechanism

Safety Features

Specifications

Model	Victron Orion-Tr 24/24-12A
Input Voltage Range	16-35V
Output Voltage	24V nominal, adjustable between 20-30V
Max Continuous Output Current	12A
Overload Protection	Yes
Dimensions (HxWxD)	100 x 113 x 47 mm
Weight	0.42 kg
Working Temperature Range	-20 to +55 °C
Efficiency	87%
Protection Class	IP43
