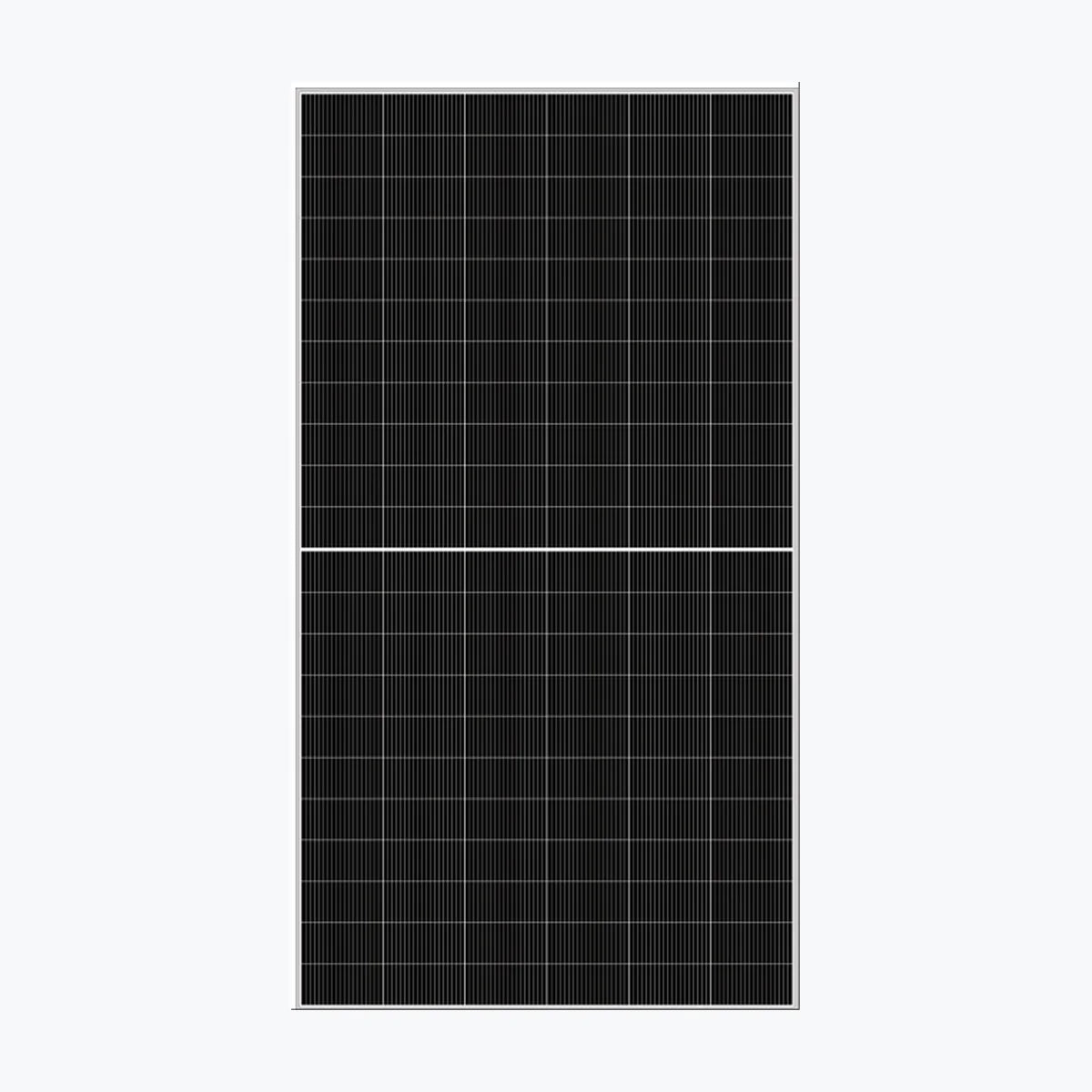

Ocean Solar AOX-132G12HC740W

Type Monocrystalline Model No. AOX-132G12HC740W Product Warranty 12 Years Power Warranty 10 Years of 90 %, 30 Years of 80 % Total Degradation Rate ⏳ 0.67 % Power Tolerance -3 ~ +3 % Maximum Power (Pmax) 740 Wp Voltage at Maximum Power (Vmpp) 42.1 V Current at Maximum Power (Impp) 17.58 A Open Circuit Voltage (Voc) 48.6 V Short Circuit Current (Isc) 18.56 A Panel Efficiency 23.8 % Maximum Power (Pmax) 557 Wp Voltage at Maximum Power (Vmpp) 39.5 V Current at Maximum Power (Impp) 14.1 A Open Circuit Voltage (Voc) 46 V Short Circuit Current (Isc) 14.89 A Temperature 45±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2382x1303x33 mm Weight 31 kg Cell Size 210×105 mm Cell Number 132 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type EVA Back Cover Type TPT F

Technology: TOPCon, N-type
Power Range: 700 ~ 750 Wp
Panel Efficiency: 22.5 ~ 24.2 %
Weight: 31 kg
Seller Name: Jiangsu Ocean Solar Co., Ltd.
Country: China
