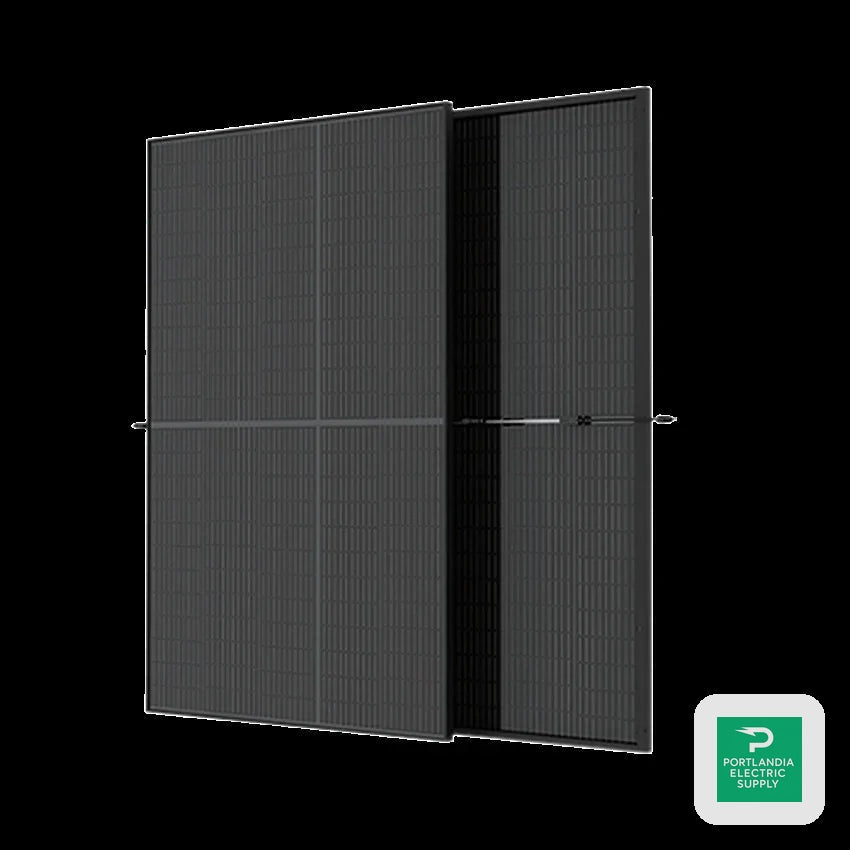

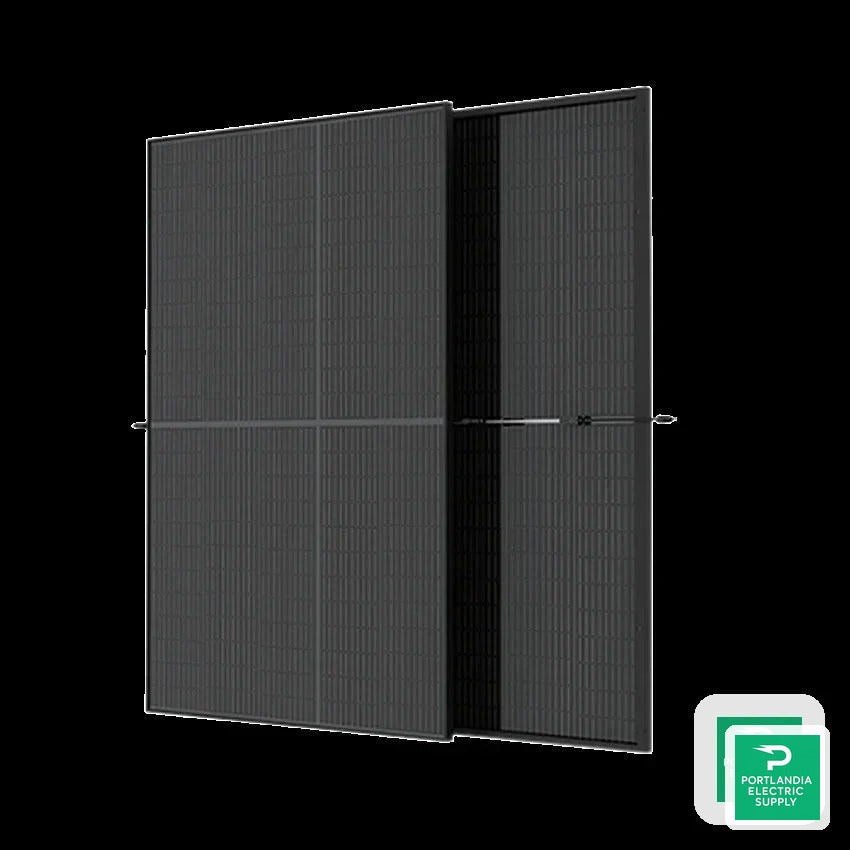

Trina Solar Vertex S Series 390W 120 1/2 Cells Bifacial Clear Monocrystalline Solar Panel - TSM-DE09C.07 390W

Trina Solar Vertex S Series 390W 120 1/2 Cells Bifacial Clear Monocrystalline Solar Panel - TSM-DE09C.07 390W

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In Stock

SKU PES-SPS-SPL-0046

Trina Solar Vertex S Series 390W 120 1/2 Cells Bifacial Clear Monocrystalline Solar Panel - TSM-DE09C.07 390W

$168.66 USD

$ $168.66 USD

Sale Sold out

$/watt

$168.66/per panel

Quantity

Secure Payment Methods

In Stock

Get yours today!

9+ sold

In the last 7 days

Flat Rate Shipping - Calculated at Checkout

Delivery timeframe shown above at checkout

Lifetime Customer Support

Unlimited lifetime support, always available.

In High Demand! Order Now To Secure Your Items

Request a Free Quote

Got Questions? We’re Here to Help!

Our support team is ready to assist you with product guidance, order details, or any questions you might have.

(888) 876-0007

Instant Live Chat

Mon-Fri 10am-6pm EST

View full details

Specifications

Datasheet

Rated Power (Pmax) 390 W

Open Circuit Voltage (Voc) 40.8 V

Max Power Voltage (Vmp) 33.8 V

Short Circuit Current (Isc) 12.14 A

Max Power Current (Imp) 11.54 A

Module Efficiency 20.3%

Cell Type Monocrystalline

Cell Count 120 half-cut (6x20)

Bifacial Yes (bifaciality 70%+/-5%)

Max System Voltage 1500 V DC (IEC/UL)

Max Series Fuse 25 A

Temperature Coefficient Pmax -0.34%/C

Temperature Coefficient Voc -0.25%/C

Temperature Coefficient Isc +0.04%/C

NOCT 43 C (+/-2)

Operating Temperature -40 to +85 C

Power Tolerance 0 to +5 W

Pallet & Bulk Packaging

Per Pallet 36 panels

Per Container 828 panels

System Compatibility

ConnectorMC4 EVO2 / TS4

FrameAnodized aluminum alloy (black)

BacksheetTransparent

Max modules per string (1500V)36

Bifaciality70%+/-5%

Need help sizing? Call (888) 876-0007

Certifications

IEC 61215Design qualification and type approval

IEC 61730Safety qualification

UL 61730North American safety standard

IEC 61701Salt mist corrosion resistance

IEC 62716Ammonia corrosion resistance

ISO 9001/14001/14064/45001Quality, environmental, GHG, OHS management

What is your return policy?

Returns are free in the first 30 days with no restocking or processing fees, although the customer may be responsible for paying return shipping. See our complete return policy on our Shipping, Delivery, and Returns page linked in the footer of this website.

What’s covered by your return policy?

Our returns policy covers all purchases made through Portlandia Electric Supply. For warranty issues, as authorized distributors, we honor the full manufacturer warranty of ALL the brands on our website. See our complete returns and warranty policies on our Shipping, Deliver, and Returns page.

How long will it take to receive my order?

All orders are processed within 72 hours and you can expect delivery on most orders within 5-7 business days. You will receive access to our customer portal after ordering, where it is easy to track all your shipments. See our Shipping, Delivery and Returns page for more details.

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Our legendary lifetime customer support has helped make us the #1 online solar retailer! We have a dedicated team of solar professionals standing by to help you navigate the world of solar with ease. From selecting the perfect solar kit to installation and beyond, we provide support and expertise at every step of the journey.If you need help with ordering, shipping, troubleshooting, expanding your system, warranty issues, or anything else you have questions about for as long as you own your Portlandia Electric Supply equipment, we’ve got you covered: we’re always only a phone call or email away.

Trina Solar Vertex S 390W Bifacial Monocrystalline Panel

Discover the efficiency and reliability of the Trina Solar TSM-DE09C.07 390W solar panel. With its innovative bifacial design and monocrystalline technology, this panel is crafted to deliver superior energy performance, making it a perfect choice for sustainable energy solutions. The Vertex S Series ensures optimal power generation with a sleek, modern approach, ideal for both residential and commercial applications.

Product Features

High Energy Output

Designed with bifacial technology, the Trina Solar TSM-DE09C.07 390W panel maximizes energy capture from both sides, effectively boosting overall power production in various light conditions.

Durable Monocrystalline Structure

The monocrystalline solar cells offer exceptional efficiency and long-term reliability, ensuring that this panel provides a consistent energy supply, perfect for any setup.

Innovative Design

Featuring a sleek and durable frame, this solar panel is built to withstand harsh weather conditions while maintaining its aesthetic appeal and functionality.

Advanced Compatibility

This panel is designed for compatibility with a wide range of solar installations, enhancing its versatility and ease of integration into existing systems.

Environmental Impact

Reduce your carbon footprint by utilizing this energy-efficient solar panel, contributing to cleaner, sustainable power solutions for a greener future.

How It Works

The Trina Solar Vertex S Series harnesses solar energy by using advanced bifacial monocrystalline cells that capture light from both sides. This optimal design allows for increased energy capture, providing efficient power production even in lower light conditions.

Monocrystalline Cells

These high-performance cells play a crucial role in converting sunlight into electrical energy with superior efficiency.

Bifacial Technology

This technology enables the panel to utilize reflected sunlight, enhancing energy yield by capturing light from the back side.

Durable Construction

The robust design ensures long-term exposure to environmental elements without compromising performance or longevity.

Specifications

Rated Power Output	390W
Solar Cell Type	Monocrystalline
Bifacial Gain	Up to 25%
Panel Dimensions	1765mm x 1040mm x 30mm
Weight	21.5kg
Operating Temperature Range	-40C to +85C
Warranty	25-year performance warranty
Efficiency	Up to 20.4%
Front Glass	3.2mm, AR-coated glass
Frame Material	Anodized aluminum alloy

What is your return policy?

What’s covered by your return policy?

How long will it take to receive my order?

What are your financing and payment options?

We offer several ways to pay to make getting your solar kit simple:

Credit Card: if the purchase is greater than your card’s limit, you can split the cost onto multiple cards as well as Paypal, financing through Affirm, and ACH/bank transfer

You can arrange financing during the checkout process, or scroll further down this page for more details. Please note, if you'd like to finance your order, you can do so instantly, right at checkout.

How does your Lifetime Customer Support work?

Trina Solar Vertex S 390W Bifacial Monocrystalline Panel

Product Features

High Energy Output

Designed with bifacial technology, the Trina Solar TSM-DE09C.07 390W panel maximizes energy capture from both sides, effectively boosting overall power production in various light conditions.

Durable Monocrystalline Structure

The monocrystalline solar cells offer exceptional efficiency and long-term reliability, ensuring that this panel provides a consistent energy supply, perfect for any setup.

Innovative Design

Featuring a sleek and durable frame, this solar panel is built to withstand harsh weather conditions while maintaining its aesthetic appeal and functionality.

Advanced Compatibility

This panel is designed for compatibility with a wide range of solar installations, enhancing its versatility and ease of integration into existing systems.

Environmental Impact

Reduce your carbon footprint by utilizing this energy-efficient solar panel, contributing to cleaner, sustainable power solutions for a greener future.

How It Works

Monocrystalline Cells

These high-performance cells play a crucial role in converting sunlight into electrical energy with superior efficiency.

Bifacial Technology

This technology enables the panel to utilize reflected sunlight, enhancing energy yield by capturing light from the back side.

Durable Construction

The robust design ensures long-term exposure to environmental elements without compromising performance or longevity.

Specifications

Rated Power Output	390W
Solar Cell Type	Monocrystalline
Bifacial Gain	Up to 25%
Panel Dimensions	1765mm x 1040mm x 30mm
Weight	21.5kg
Operating Temperature Range	-40C to +85C
Warranty	25-year performance warranty
Efficiency	Up to 20.4%
Front Glass	3.2mm, AR-coated glass
Frame Material	Anodized aluminum alloy
