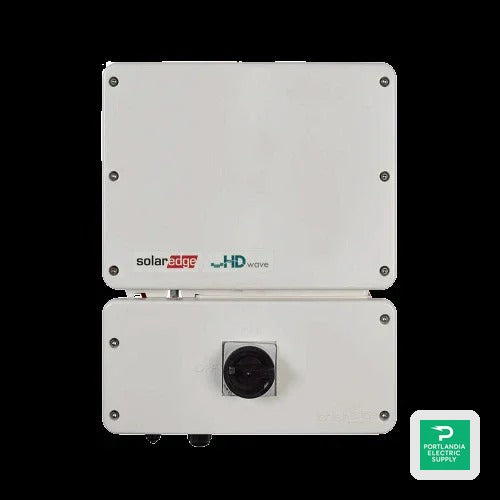

SolarEdge HD-WAVE 5.0kw 1-ph Inverter W/ Ev Charger - SE5000H-US000NNV2
SolarEdge HD-WAVE 5.0kw 1-ph Inverter W/ Ev Charger - SE5000H-US000NNV2
PayPal Pay in 4 interest-free payments of $327.55 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0421
- MPN
- SE5000H-US000NNV2
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for SolarEdge. 50,000+ SKUs from 169 authorized brands.
SolarEdge Single Phase Inverter with HD-Wave Technology
The SolarEdge SE5000H-US000NNV2 inverter brings advanced HD-Wave technology, delivering exceptional efficiency for your solar panel setup. Designed for North American systems, it ensures compliance with safety and grid standards, offering a streamlined installation process and robust performance for residential energy needs.
Product Features
Advanced HD-Wave Technology
Immerse yourself in superior solar energy conversion with HD-Wave technology, which enhances the efficiency and reliability of your power generation system.
Streamlined Installation
Enjoy quick and effortless installation, facilitated by the SolarEdge SetApp, ensuring your inverter is up and running with minimum hassle.
Optimized Energy Output
Maximize your solar energy harvest with a fixed voltage inverter, supporting extended string lengths for optimal deployment.
Comprehensive Safety Features
The inverter includes built-in arc fault protection and rapid shutdown capabilities, aligned with NEC 2014 and 2017 requirements to ensure user and infrastructure safety.
Built-in Monitoring and Connectivity
Monitor your solar system performance through integrated module-level monitoring, with optional Wi-Fi, Ethernet, and ZigBee communication support available.
How It Works
The SolarEdge inverter operates by effectively converting the DC power generated by solar panels into AC power, suitable for home use or grid export. It integrates multiple communication and safety features to enhance user experience and system reliability.
Efficient DC to AC Conversion
The core functionality lies in its ability to transform DC power from solar modules into usable AC power, maintaining high conversion efficiency.
Advanced Communication Interfaces
Multiple interfaces like RS485, Ethernet, and optional ZigBee or Cellular connections enable seamless system monitoring and integration.
Superb Safety Compliance
Equipped with safety compliance features, the inverter ensures adherence to UL and IEEE standards, protecting against faults and ensuring safe operation.
Specifications
| AC Output Power | 5000 VA |
| Maximum Efficiency | 99.2% |
| AC Output Voltage Range | 211 - 240 - 264 Vac |
| Operating Temperature Range | -40 to +60 C |
| Cooling Method | Natural Convection |
| Dimensions (HxWxD) | 21.3 x 14.6 x 7.3 inches |
| Weight | 38.8 lbs / 17.6 kg |
| NEMA Rating | NEMA 4X |
| Maximum Input Voltage | 480 Vdc |
| Communication Interfaces | RS485, Ethernet, ZigBee (optional), Cellular (optional) |
| SKU | PES-SPS-SIV-0421 |
|---|---|
| MPN | SE5000H-US000NNV2 |
| Manufacturer | SolarEdge |
