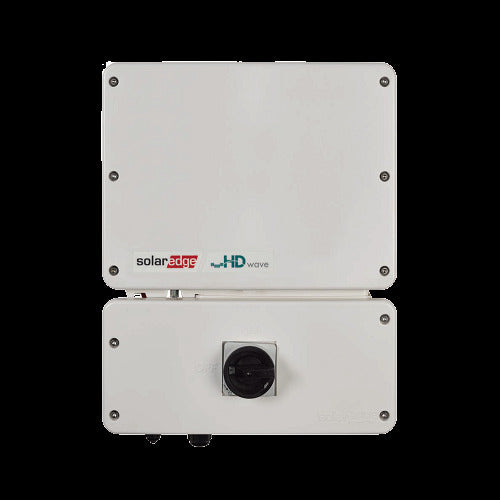

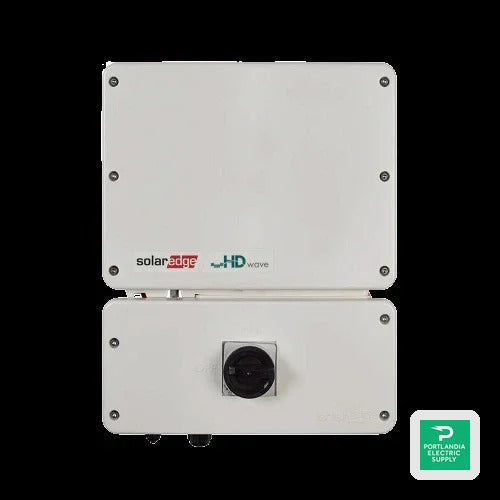

SolarEdge HD-WAVE 5.0kw 1-ph Inverter W/ Ev Charger - SE5000H-US000NNV2

SolarEdge HD-WAVE 5.0kw 1-ph Inverter W/ Ev Charger - SE5000H-US000NNV2

Return policy

Specification

  • SKU:PES-SPS-SIV-0421
  • Brands: SolarEdge
  • Compliance special features:
    • Rapid Shutdown Ready
  • Documents:
  • Height: 17.7
  • Length: 6.8
  • Phase:
    • Single Phase
View full details
  • Product Description

    SolarEdge Single Phase Inverter with HD-Wave Technology

    The SolarEdge SE5000H-US000NNV2 inverter brings advanced HD-Wave technology, delivering exceptional efficiency for your solar panel setup. Designed for North American systems, it ensures compliance with safety and grid standards, offering a streamlined installation process and robust performance for residential energy needs.

    Product Features

    Advanced HD-Wave Technology

    Immerse yourself in superior solar energy conversion with HD-Wave technology, which enhances the efficiency and reliability of your power generation system.

    Streamlined Installation

    Enjoy quick and effortless installation, facilitated by the SolarEdge SetApp, ensuring your inverter is up and running with minimum hassle.

    Optimized Energy Output

    Maximize your solar energy harvest with a fixed voltage inverter, supporting extended string lengths for optimal deployment.

    Comprehensive Safety Features

    The inverter includes built-in arc fault protection and rapid shutdown capabilities, aligned with NEC 2014 and 2017 requirements to ensure user and infrastructure safety.

    Built-in Monitoring and Connectivity

    Monitor your solar system performance through integrated module-level monitoring, with optional Wi-Fi, Ethernet, and ZigBee communication support available.

    How It Works

    The SolarEdge inverter operates by effectively converting the DC power generated by solar panels into AC power, suitable for home use or grid export. It integrates multiple communication and safety features to enhance user experience and system reliability.

    Efficient DC to AC Conversion

    The core functionality lies in its ability to transform DC power from solar modules into usable AC power, maintaining high conversion efficiency.

    Advanced Communication Interfaces

    Multiple interfaces like RS485, Ethernet, and optional ZigBee or Cellular connections enable seamless system monitoring and integration.

    Superb Safety Compliance

    Equipped with safety compliance features, the inverter ensures adherence to UL and IEEE standards, protecting against faults and ensuring safe operation.

    Specifications

    AC Output Power 5000 VA
    Maximum Efficiency 99.2%
    AC Output Voltage Range 211 - 240 - 264 Vac
    Operating Temperature Range -40 to +60 C
    Cooling Method Natural Convection
    Dimensions (HxWxD) 21.3 x 14.6 x 7.3 inches
    Weight 38.8 lbs / 17.6 kg
    NEMA Rating NEMA 4X
    Maximum Input Voltage 480 Vdc
    Communication Interfaces RS485, Ethernet, ZigBee (optional), Cellular (optional)
