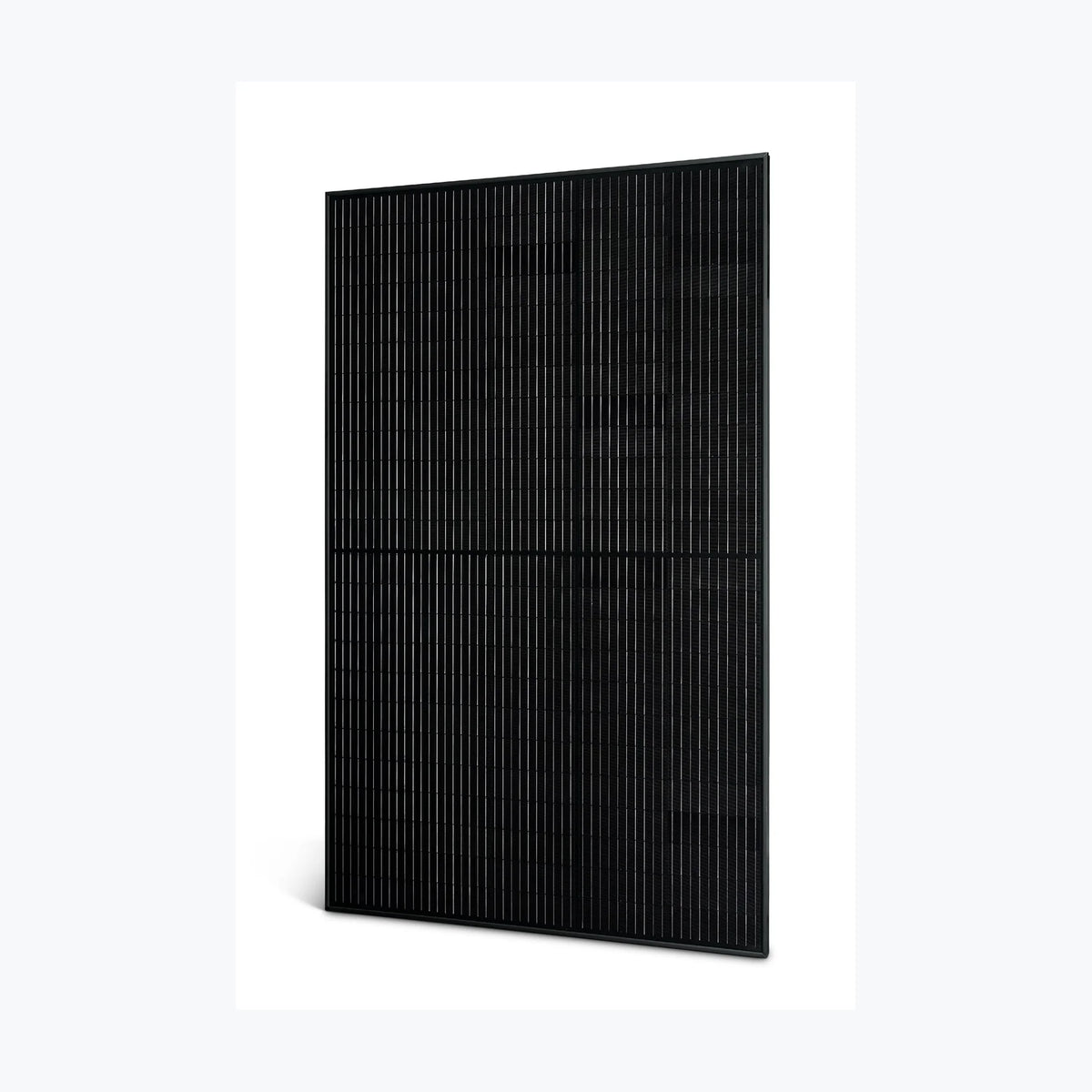

    3Sun 3SHMBTBA-435

    3Sun 3SHMBTBA-435

    $87.00 USD
    $87.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0107
    • Competitor price comparison: {"pes_price":87.0,"avg_competitor_price":142.51,"min_competitor_price":142.51,"max_competitor_price":142.51,"diff_pct":63.8,"competitor_count":1,"checked_at":"2026-07-21"}
    • Container price: $46,980.00 USD
    • Container qty: 720
    • Mpn: SHMBTBA-435
    • Odoo id: 26,827
    • Pallet price: $2,218.50 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 3SHMBTBA-435 Product Warranty 25 Years Power Warranty 30 Years of 91.8 % Total Degradation Rate ⏳ 0.27 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 35.58 V Current at Maximum Power (Impp) 12.23 A Open Circuit Voltage (Voc) 43.07 V Short Circuit Current (Isc) 13.01 A Panel Efficiency 22.6 % Maximum Power (Pmax) 329 Wp Voltage at Maximum Power (Vmpp) 33.84 V Current at Maximum Power (Impp) 9.71 A Open Circuit Voltage (Voc) 40.91 V Short Circuit Current (Isc) 10.5 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1754x1096x35 mm Weight 21.5 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type M

      Technology: HJT
      Power Range: 430 ~ 470 Wp
      Panel Efficiency: 22.4 ~ 24.5 %
      Weight: 21.5 kg
      Seller Name: 3Sun Srl
      Country: Italy
