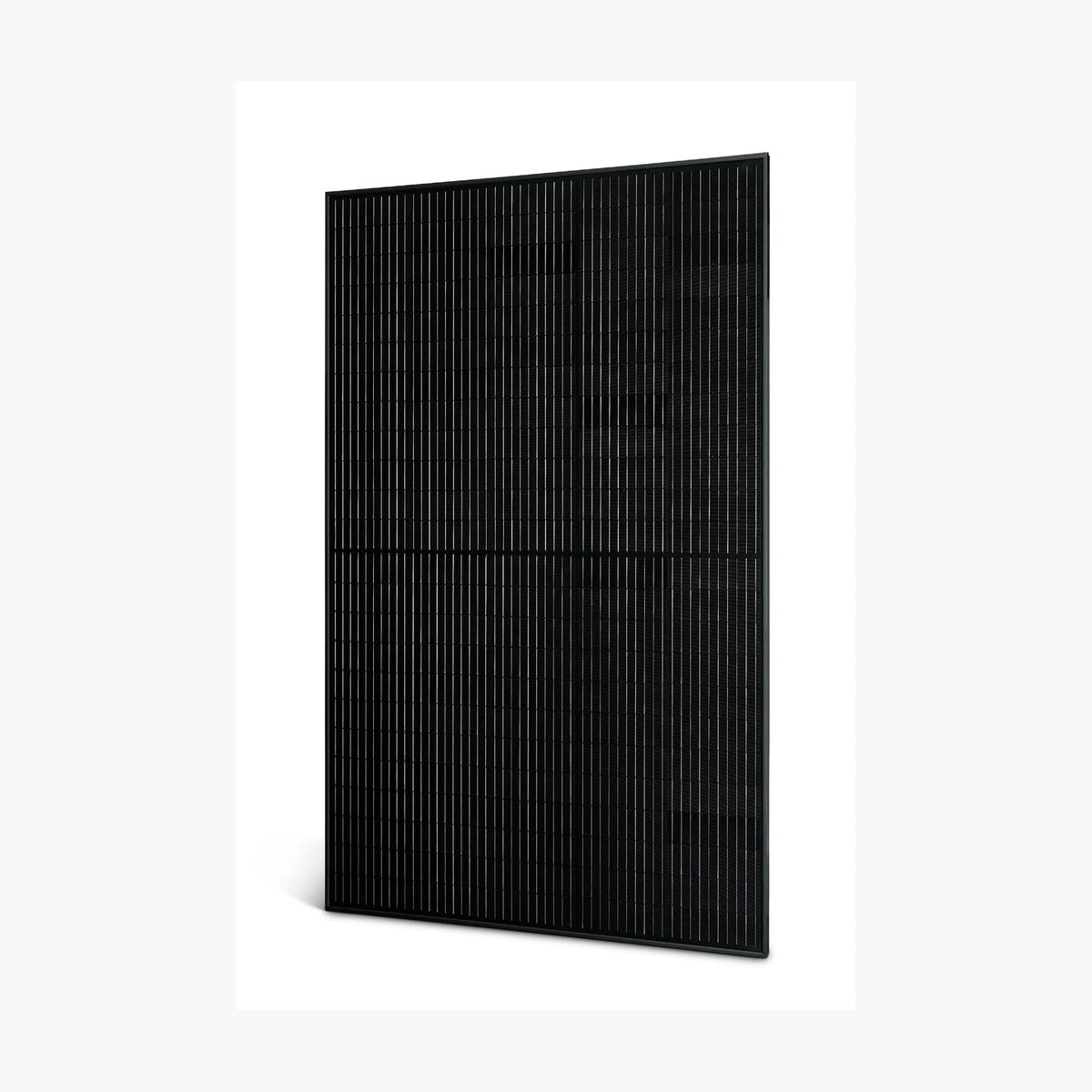

3Sun 3SHMBTBA-465
PayPal Pay in 4 interest-free payments of $23.25 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0113
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. 3SHMBTBA-465 Product Warranty 25 Years Power Warranty 30 Years of 91.8 % Total Degradation Rate ⏳ 0.27 % Maximum Power (Pmax) 465 Wp Voltage at Maximum Power (Vmpp) 36.35 V Current at Maximum Power (Impp) 12.8 A Open Circuit Voltage (Voc) 43.96 V Short Circuit Current (Isc) 13.6 A Panel Efficiency 24.2 % Maximum Power (Pmax) 352 Wp Voltage at Maximum Power (Vmpp) 34.59 V Current at Maximum Power (Impp) 10.17 A Open Circuit Voltage (Voc) 41.82 V Short Circuit Current (Isc) 10.97 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1754x1096x35 mm Weight 21.5 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type M
Technology: HJT
Power Range: 430 ~ 470 Wp
Panel Efficiency: 22.4 ~ 24.5 %
Weight: 21.5 kg
Seller Name: 3Sun Srl
Country: Italy
| SKU | PES-SPS-SOL-0113 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
