1 0

    In Stock

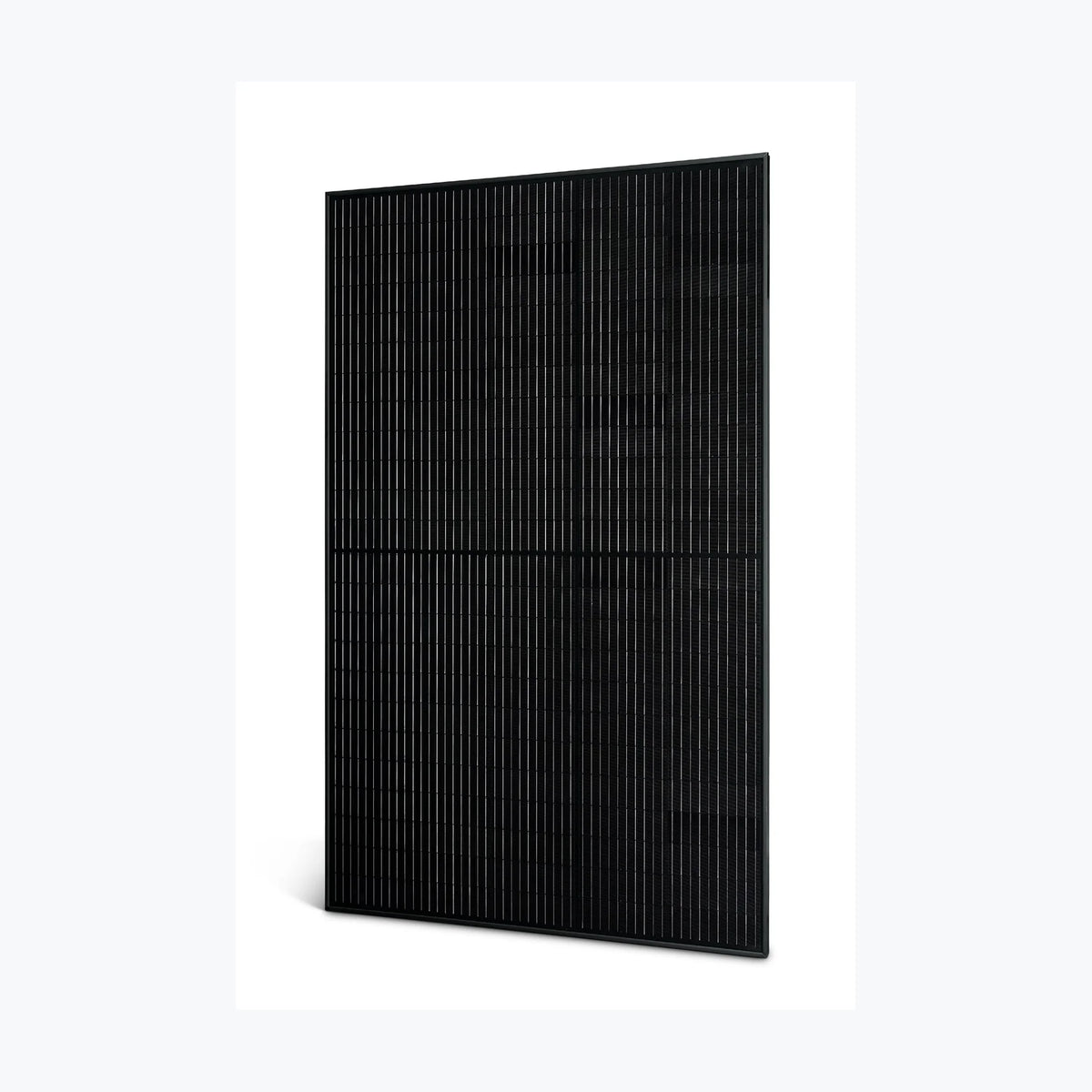

    3Sun 3SHMBTBA-470

    3Sun 3SHMBTBA-470

    $94.00 USD
    $94.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0114
    • Container price: $50,760.00 USD
    • Container qty: 720
    • Mpn: SHMBTBA-470
    • Odoo id: 26,834
    • Pallet price: $2,397.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. 3SHMBTBA-470 Product Warranty 25 Years Power Warranty 30 Years of 91.8 % Total Degradation Rate ⏳ 0.27 % Maximum Power (Pmax) 470 Wp Voltage at Maximum Power (Vmpp) 36.48 V Current at Maximum Power (Impp) 12.89 A Open Circuit Voltage (Voc) 44.11 V Short Circuit Current (Isc) 13.7 A Panel Efficiency 24.5 % Maximum Power (Pmax) 356 Wp Voltage at Maximum Power (Vmpp) 34.71 V Current at Maximum Power (Impp) 10.24 A Open Circuit Voltage (Voc) 41.97 V Short Circuit Current (Isc) 11.05 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.24 %/°C Temperature Coefficient of Voc -0.2 %/°C Temperature Coefficient of Isc 0.044 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1754x1096x35 mm Weight 21.5 kg Cell Number 120 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type

      Technology: HJT
      Power Range: 430 ~ 470 Wp
      Panel Efficiency: 22.4 ~ 24.5 %
      Weight: 21.5 kg
      Seller Name: 3Sun Srl
      Country: Italy
