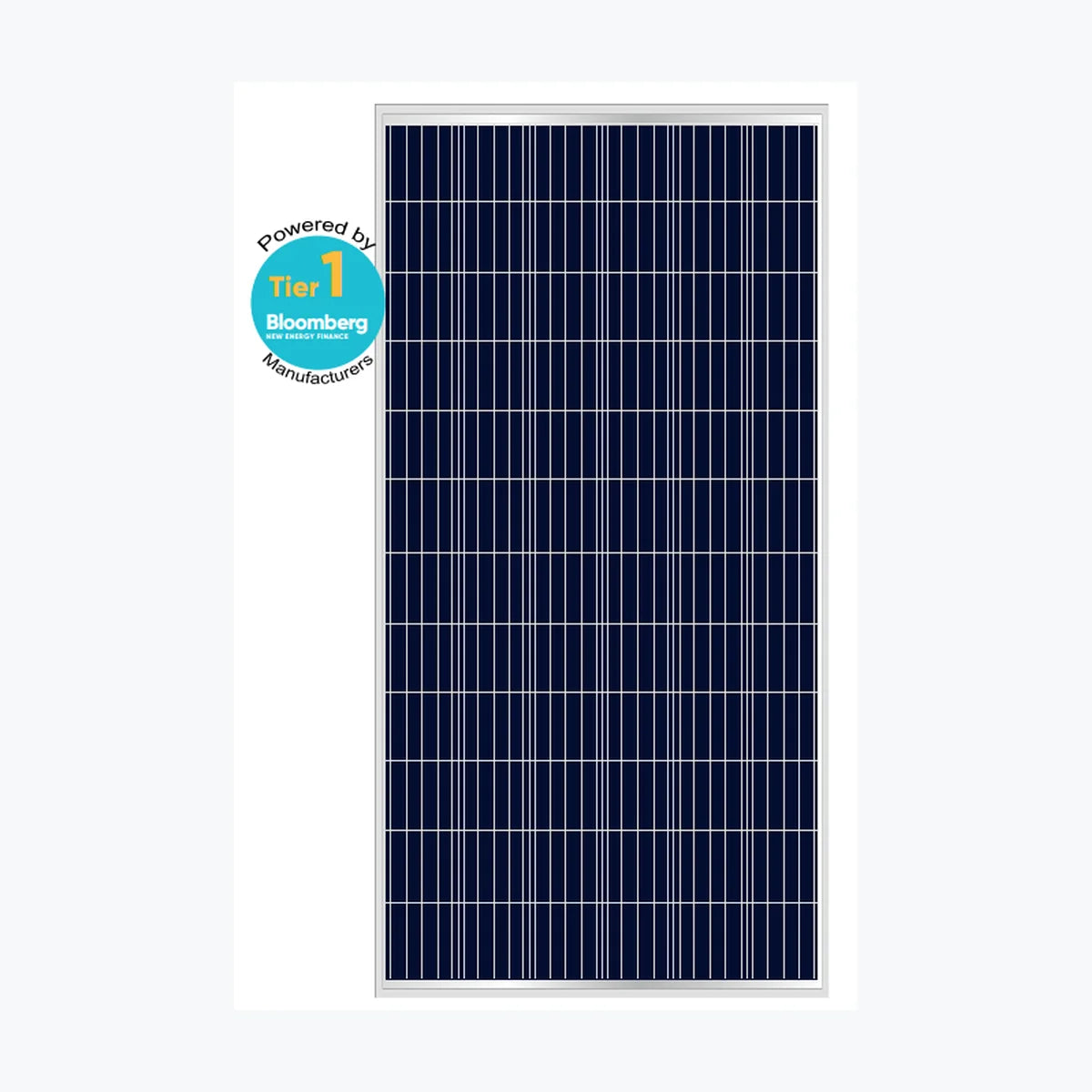

    ABi-Solar AB335-72P

    ABi-Solar AB335-72P

    $67.00 USD
    $67.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0138
    • Container price: $36,180.00 USD
    • Container qty: 720
    • Mpn: AB335-72P
    • Odoo id: 20,673
    • Pallet price: $1,708.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. AB335-72P Product Warranty 10 Years Power Warranty 12 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +4.99 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 37.7 V Current at Maximum Power (Impp) 8.89 A Open Circuit Voltage (Voc) 46.2 V Short Circuit Current (Isc) 9.2 A Panel Efficiency 17.26 % Maximum Power (Pmax) 248 Wp Voltage at Maximum Power (Vmpp) 35.3 V Current at Maximum Power (Impp) 7.02 A Open Circuit Voltage (Voc) 42.6 V Short Circuit Current (Isc) 7.43 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.39 %/°C Temperature Coefficient of Voc -0.3 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1956x992x40 mm Weight 21.5 kg Cell Size 156.75×156.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Dio

      Power Range: 325 ~ 340 Wp
      Panel Efficiency: 16.75 ~ 17.52 %
      Weight: 21.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
