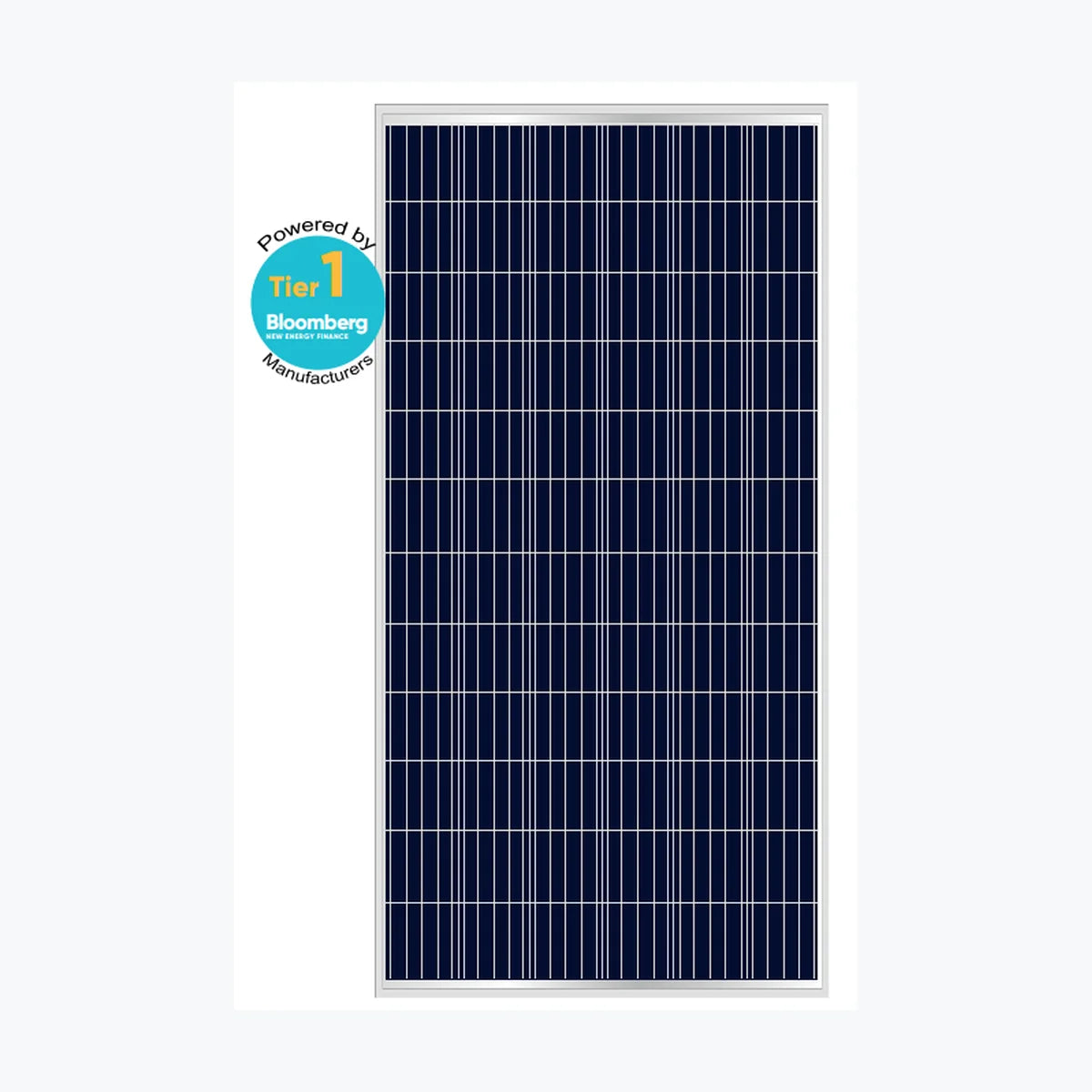

    ABi-Solar AB340-72P

    ABi-Solar AB340-72P

    $68.00 USD
    $68.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0140
    • Container price: $36,720.00 USD
    • Container qty: 720
    • Mpn: AB340-72P
    • Odoo id: 20,674
    • Pallet price: $1,734.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. AB340-72P Product Warranty 10 Years Power Warranty 12 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +4.99 % Maximum Power (Pmax) 340 Wp Voltage at Maximum Power (Vmpp) 37.9 V Current at Maximum Power (Impp) 8.98 A Open Circuit Voltage (Voc) 46.4 V Short Circuit Current (Isc) 9.3 A Panel Efficiency 17.52 % Maximum Power (Pmax) 252 Wp Voltage at Maximum Power (Vmpp) 35.5 V Current at Maximum Power (Impp) 7.1 A Open Circuit Voltage (Voc) 42.8 V Short Circuit Current (Isc) 7.49 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.39 %/°C Temperature Coefficient of Voc -0.3 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1956x992x40 mm Weight 21.5 kg Cell Size 156.75×156.75 mm Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diod

      Power Range: 325 ~ 340 Wp
      Panel Efficiency: 16.75 ~ 17.52 %
      Weight: 21.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
