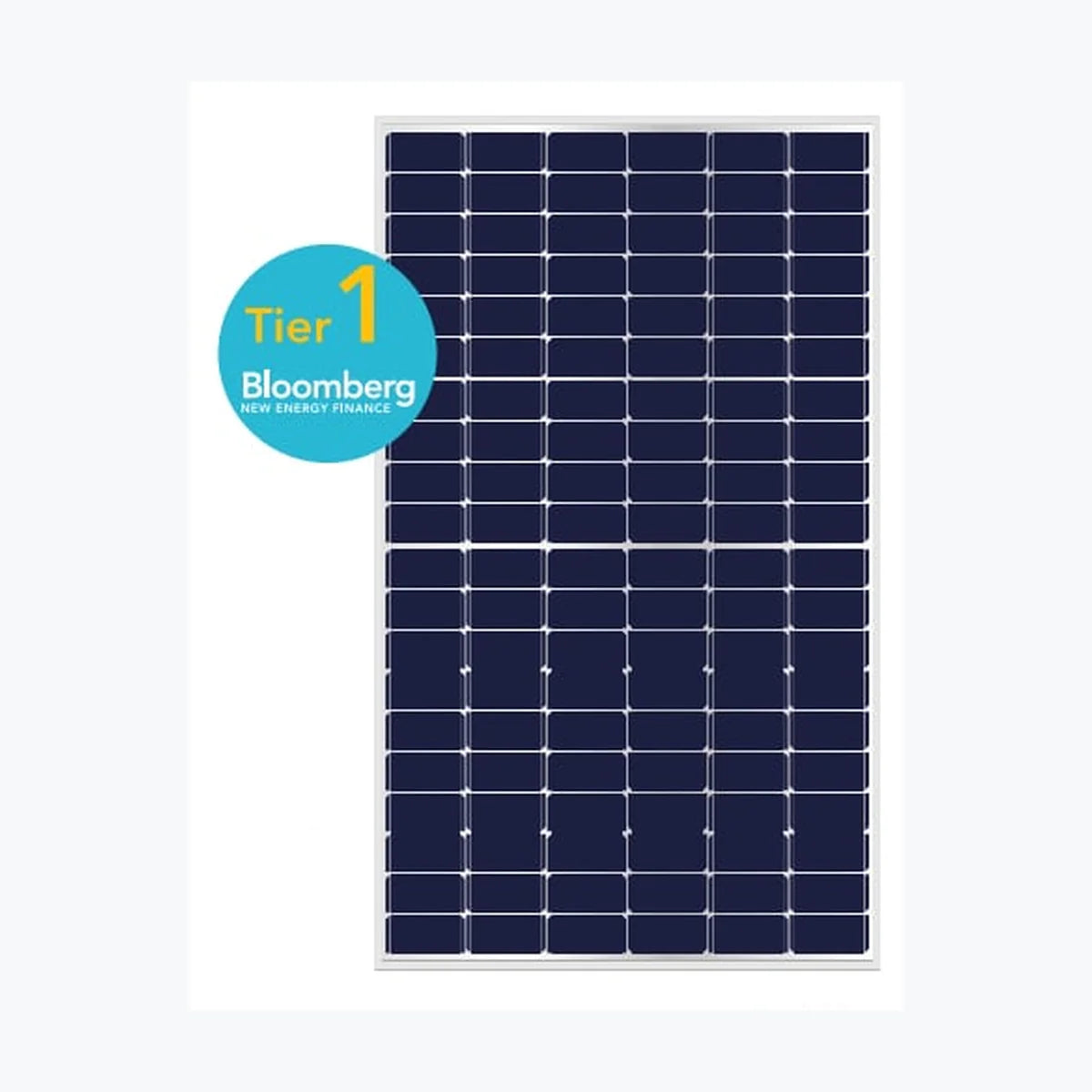

    ABi-Solar AB380-60MHC

    ABi-Solar AB380-60MHC

    $76.00 USD
    $76.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0146
    • Container price: $41,040.00 USD
    • Container qty: 720
    • Mpn: AB380-60MHC
    • Odoo id: 18,343
    • Pallet price: $1,938.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB380-60MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 83.1 % Total Degradation Rate ⏳ 0.68 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 380 Wp Voltage at Maximum Power (Vmpp) 34.3 V Current at Maximum Power (Impp) 11.09 A Open Circuit Voltage (Voc) 41.7 V Short Circuit Current (Isc) 11.98 A Panel Efficiency 20.9 % Maximum Power (Pmax) 281 Wp Voltage at Maximum Power (Vmpp) 32.4 V Current at Maximum Power (Impp) 8.67 A Open Circuit Voltage (Voc) 39.4 V Short Circuit Current (Isc) 9.67 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.39 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.049 %/°C Maximum System Voltage 1500 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1755x1038x5 mm Weight 19.5 kg Cell Number 120 Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 300 mm Do

      Power Range: 370 ~ 380 Wp
      Panel Efficiency: 20.3 ~ 20.9 %
      Weight: 19.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
