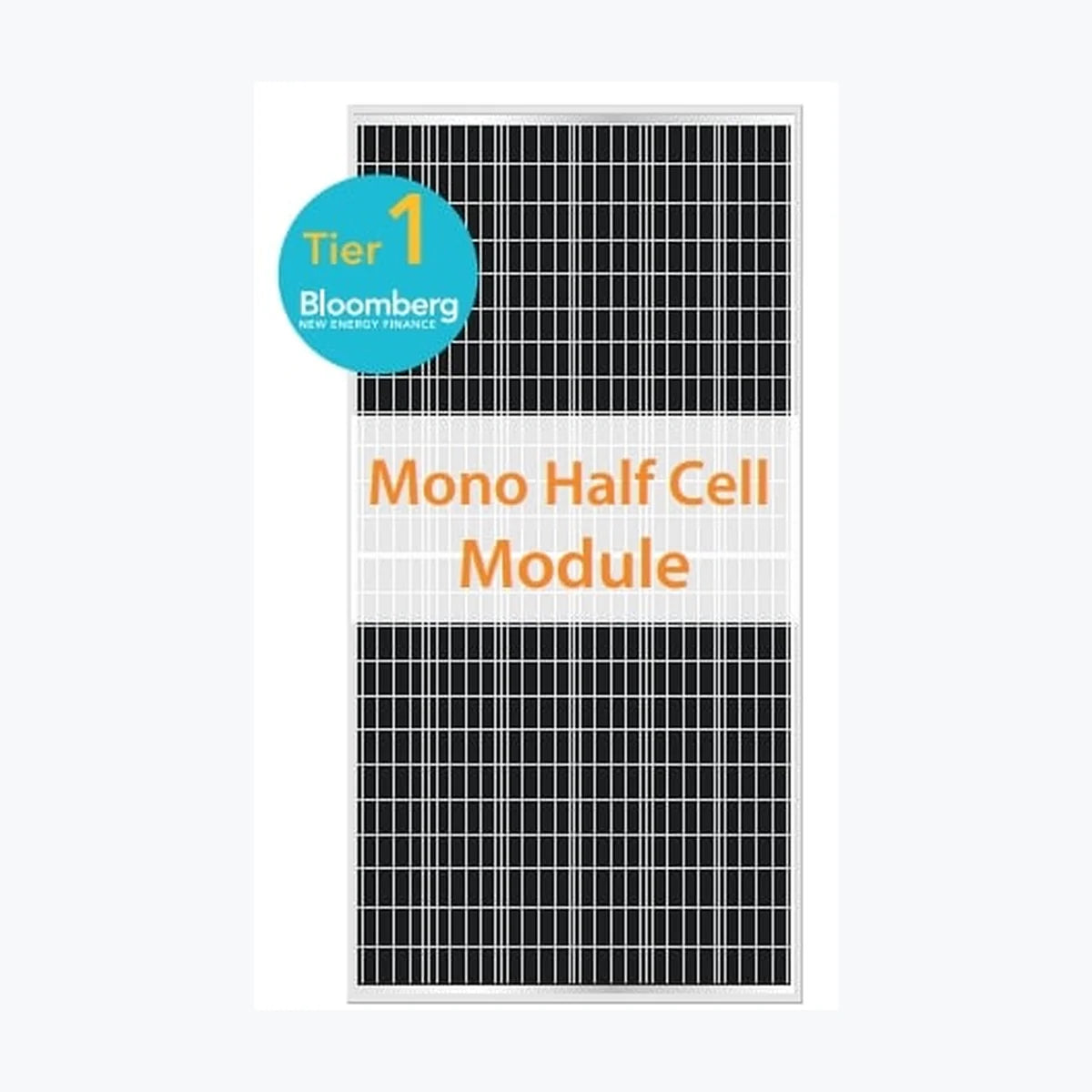

    ABi-Solar AB410-72MHC

    ABi-Solar AB410-72MHC

    $82.00 USD
    $82.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0149
    • Container price: $44,280.00 USD
    • Container qty: 720
    • Mpn: AB410-72MHC
    • Odoo id: 26,857
    • Pallet price: $2,091.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB410-72MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 80.68 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 410 Wp Voltage at Maximum Power (Vmpp) 41.64 V Current at Maximum Power (Impp) 9.85 A Open Circuit Voltage (Voc) 50.16 V Short Circuit Current (Isc) 10.6 A Panel Efficiency 20.38 % Maximum Power (Pmax) 306 Wp Voltage at Maximum Power (Vmpp) 38.77 V Current at Maximum Power (Impp) 7.89 A Open Circuit Voltage (Voc) 47.52 V Short Circuit Current (Isc) 8.55 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2008x1002x40 mm Weight 22.5 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Juncti

      Technology: PERC
      Power Range: 400 ~ 410 Wp
      Panel Efficiency: 19.88 ~ 20.38 %
      Weight: 22.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
