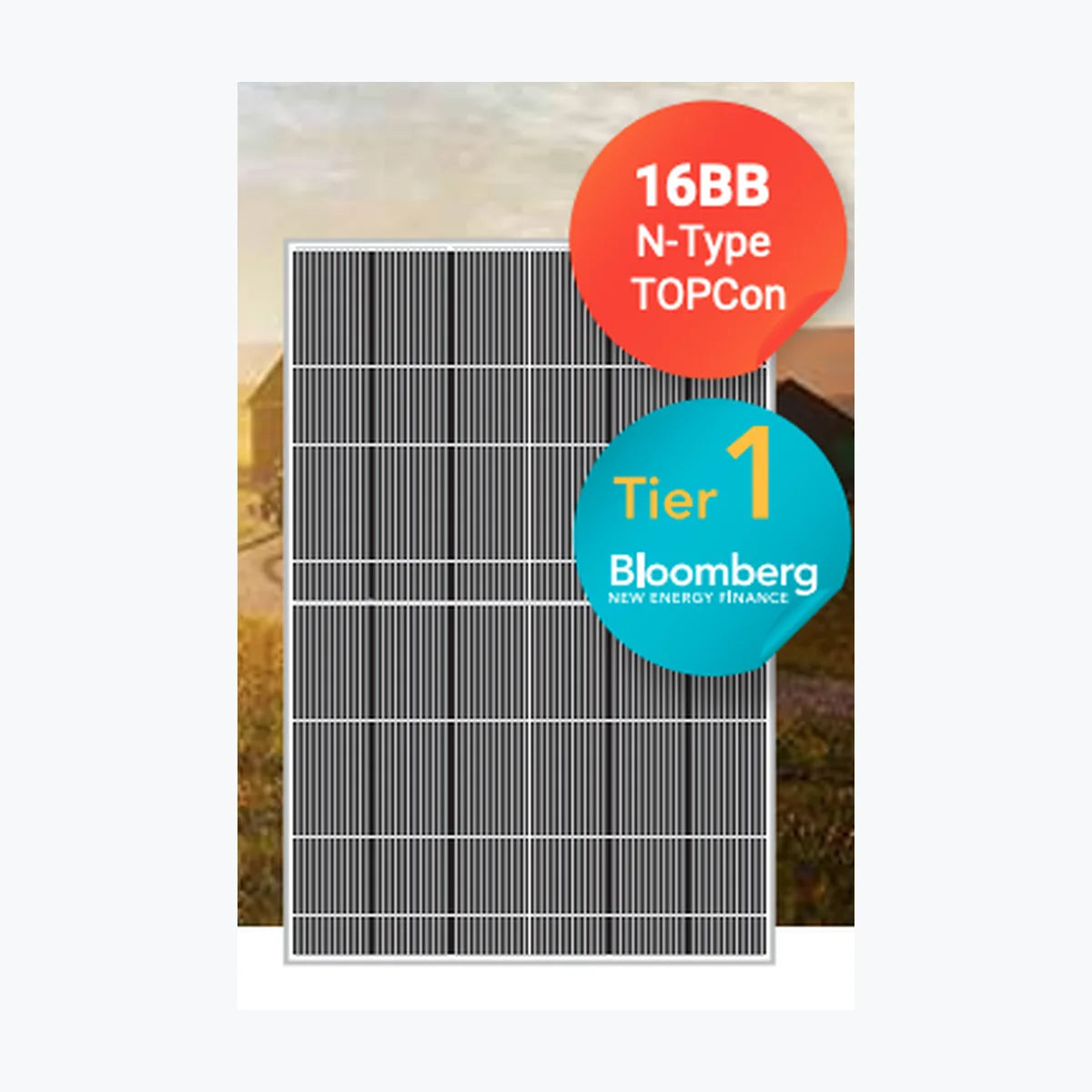

ABi-Solar AB425 54MHC
PayPal Pay in 4 interest-free payments of $29.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0154
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AB425 54MHC Product Warranty 12 Years Power Warranty 10 Years of 95.40 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 425 Wp Voltage at Maximum Power (Vmpp) 31.7 V Current at Maximum Power (Impp) 13.41 A Open Circuit Voltage (Voc) 38.3 V Short Circuit Current (Isc) 14.12 A Panel Efficiency 21.76 % Maximum Power (Pmax) 320.9 Wp Voltage at Maximum Power (Vmpp) 29.9 V Current at Maximum Power (Impp) 10.73 A Open Circuit Voltage (Voc) 36.1 V Short Circuit Current (Isc) 11.39 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 24.5 kg Cell Number 108 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type M
Power Range: 420 ~ 435 Wp
Panel Efficiency: 21.51 ~ 22.28 %
Weight: 24.5 kg
Seller Name: ABi-Solar Inc
Country: United States
| SKU | PES-SPS-SOL-0154 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
