    In Stock

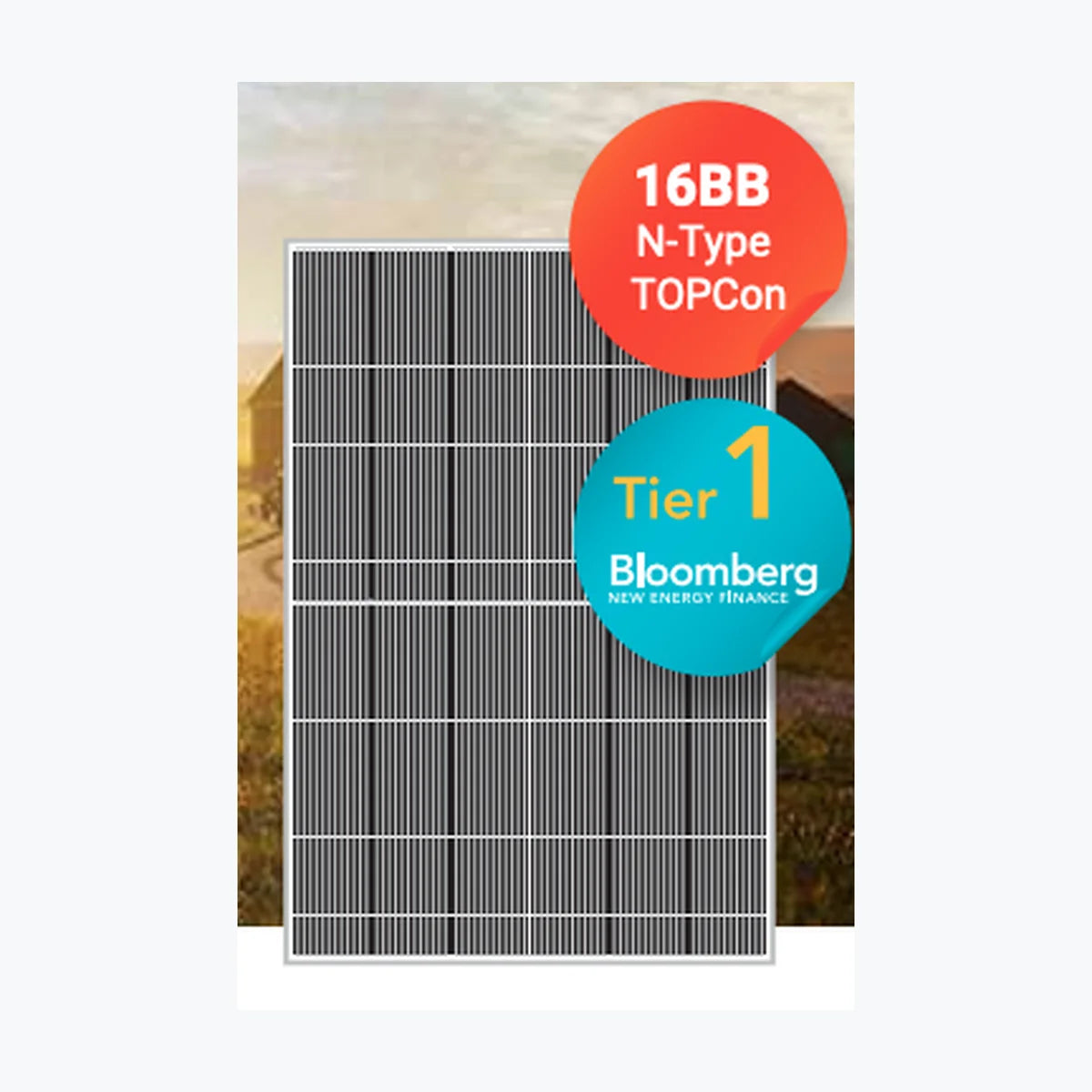

    ABi-Solar AB430 54MHC

    ABi-Solar AB430 54MHC

    $86.00 USD
    $86.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0155
    • Container price: $46,440.00 USD
    • Container qty: 720
    • Odoo id: 26,899
    • Pallet price: $2,193.00 USD
    • Pallet qty: 30
    • Unit price: $86.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. AB430 54MHC Product Warranty 12 Years Power Warranty 10 Years of 95.40 %, 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 31 V Current at Maximum Power (Impp) 13.47 A Open Circuit Voltage (Voc) 38.5 V Short Circuit Current (Isc) 14.19 A Panel Efficiency 22.02 % Maximum Power (Pmax) 324.3 Wp Voltage at Maximum Power (Vmpp) 30.1 V Current at Maximum Power (Impp) 10.78 A Open Circuit Voltage (Voc) 36.3 V Short Circuit Current (Isc) 11.45 A Temperature 44±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1722x1134x30 mm Weight 24.5 kg Cell Number 108 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4

      Power Range: 420 ~ 435 Wp
      Panel Efficiency: 21.51 ~ 22.28 %
      Weight: 24.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
