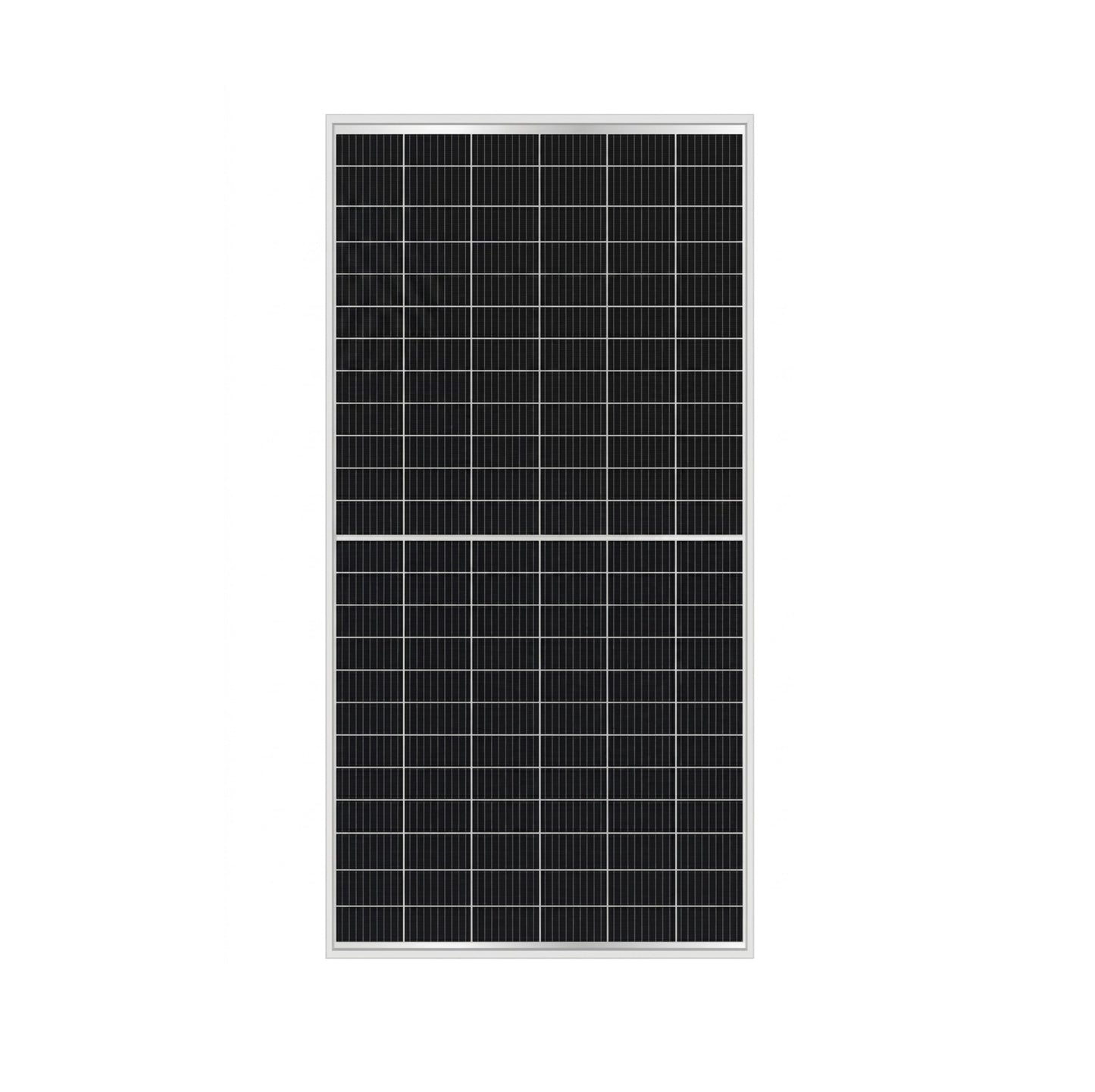

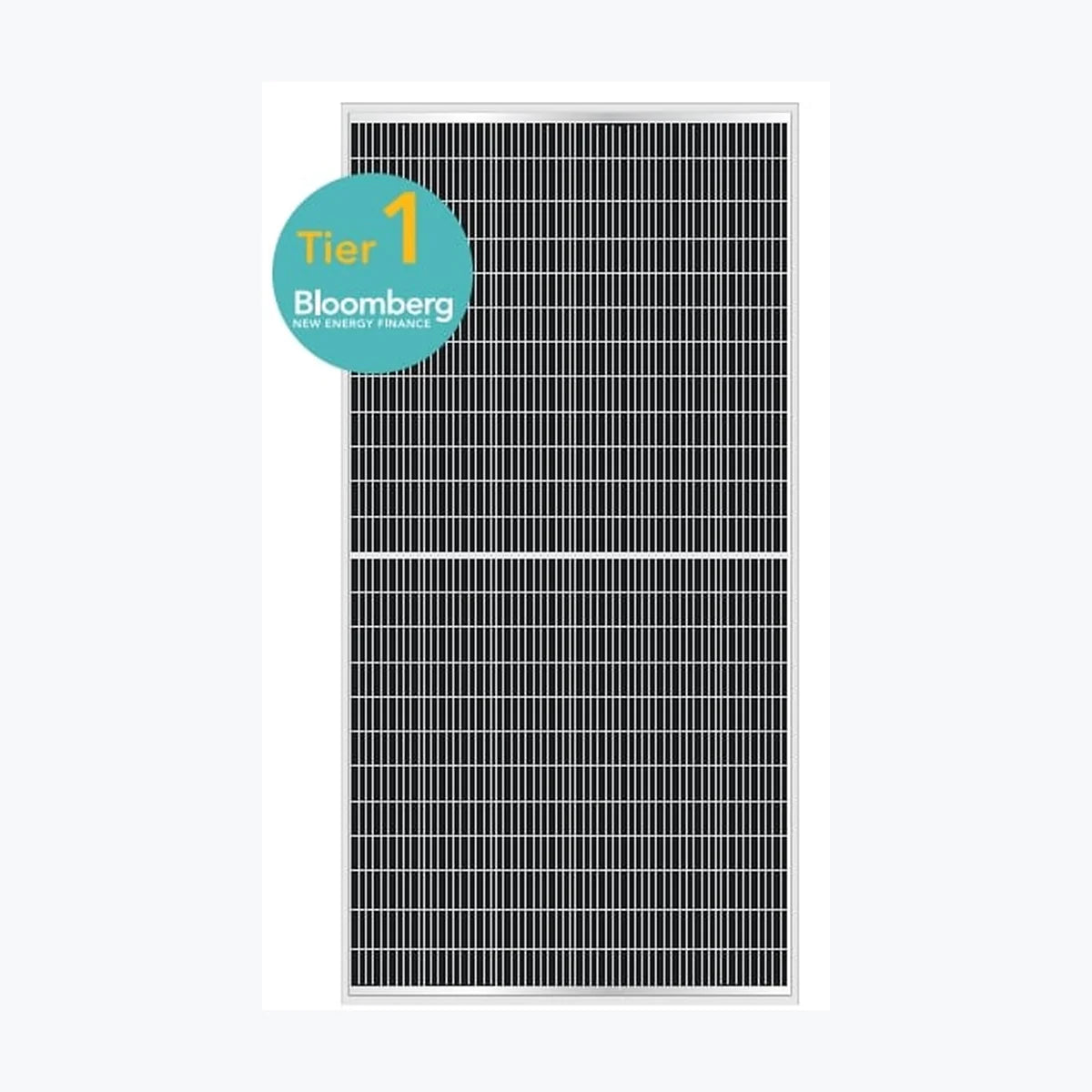

    ABi-Solar AB430-72MHC

    ABi-Solar AB430-72MHC

    $86.00 USD
    $86.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0156
    • Container price: $46,440.00 USD
    • Container qty: 720
    • Mpn: AB430-72MHC
    • Odoo id: 21,583
    • Pallet price: $2,193.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB430-72MHC Product Warranty 12 Years Power Warranty 12 Years of 93 %, 30 Years of 83 % Total Degradation Rate ⏳ 0.57 % Power Tolerance 0 ~ +0.5 % Maximum Power (Pmax) 430 Wp Voltage at Maximum Power (Vmpp) 40.84 V Current at Maximum Power (Impp) 10.53 A Open Circuit Voltage (Voc) 49.05 V Short Circuit Current (Isc) 11.04 A Panel Efficiency 19.78 % Maximum Power (Pmax) 320 Wp Voltage at Maximum Power (Vmpp) 37.7 V Current at Maximum Power (Impp) 8.49 A Open Circuit Voltage (Voc) 45.44 V Short Circuit Current (Isc) 8.9 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.36 %/°C Temperature Coefficient of Voc -0.295 %/°C Temperature Coefficient of Isc 0.039 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 2094x1038x35 mm Weight 27.8 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class I

      Power Range: 430 ~ 450 Wp
      Panel Efficiency: 19.78 ~ 20.7 %
      Weight: 27.8 kg
      Seller Name: ABi-Solar Inc
      Country: United States
