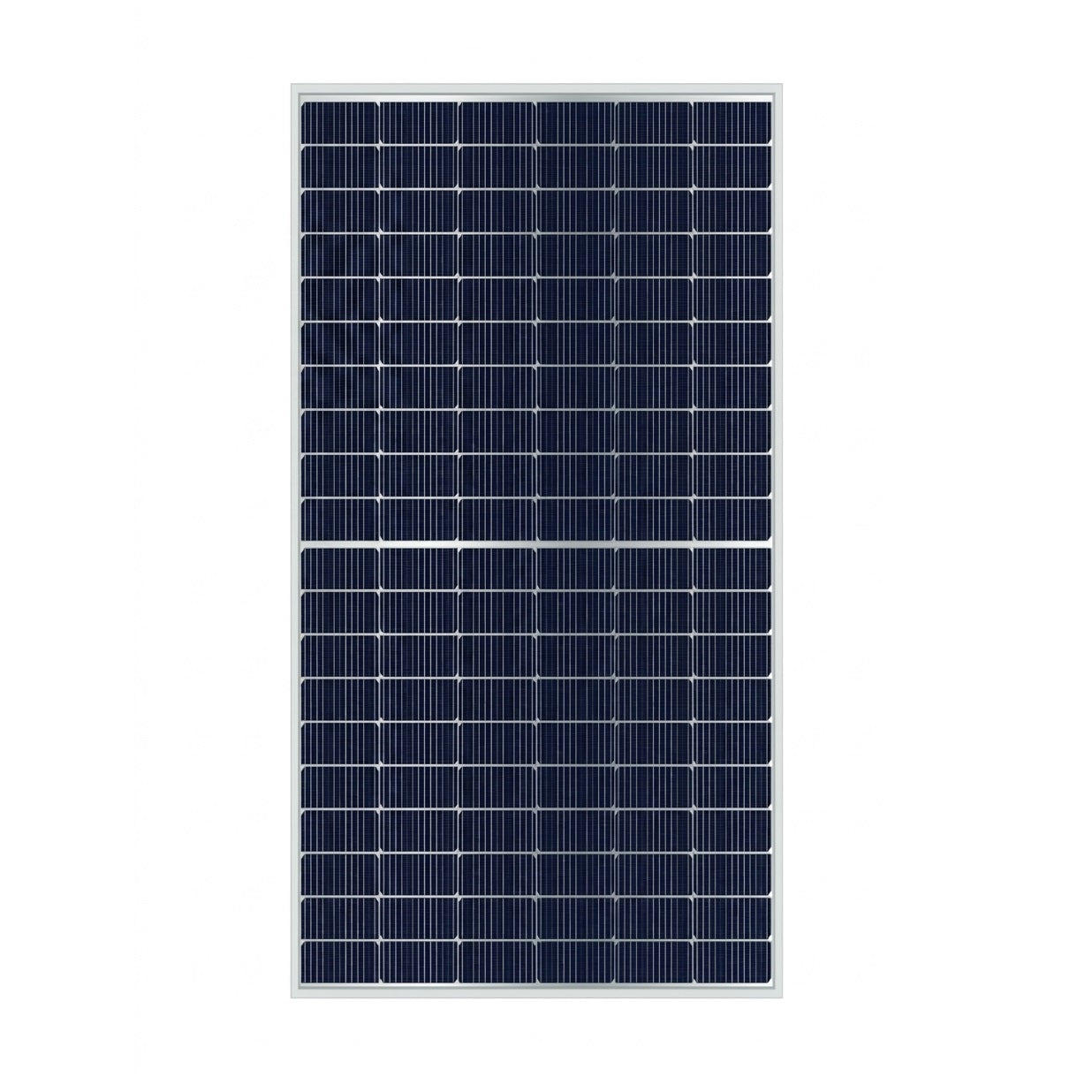

    ABi-Solar AB465-60MHC

    ABi-Solar AB465-60MHC

    $93.00 USD
    $93.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0164
    • Container price: $50,220.00 USD
    • Container qty: 720
    • Mpn: AB465-60MHC
    • Odoo id: 22,034
    • Pallet price: $2,371.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB465-60MHC Product Warranty 12 Years Power Warranty 10 Years of 91.2 %, 25 Years of 83.1 % Total Degradation Rate ⏳ 0.68 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 465 Wp Voltage at Maximum Power (Vmpp) 35.23 V Current at Maximum Power (Impp) 13.22 A Open Circuit Voltage (Voc) 41.78 V Short Circuit Current (Isc) 14.11 A Panel Efficiency 21.5 % Maximum Power (Pmax) 346 Wp Voltage at Maximum Power (Vmpp) 33.39 V Current at Maximum Power (Impp) 10.36 A Open Circuit Voltage (Voc) 39.6 V Short Circuit Current (Isc) 11.39 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.39 %/°C Temperature Coefficient of Voc -0.29 %/°C Temperature Coefficient of Isc 0.049 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1909x1134x35 mm Weight 23 kg Cell Number 120 Glass Type Tempered Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2

      Technology: PERC
      Power Range: 455 ~ 470 Wp
      Panel Efficiency: 21 ~ 21.7 %
      Weight: 23 kg
      Seller Name: ABi-Solar Inc
      Country: United States
