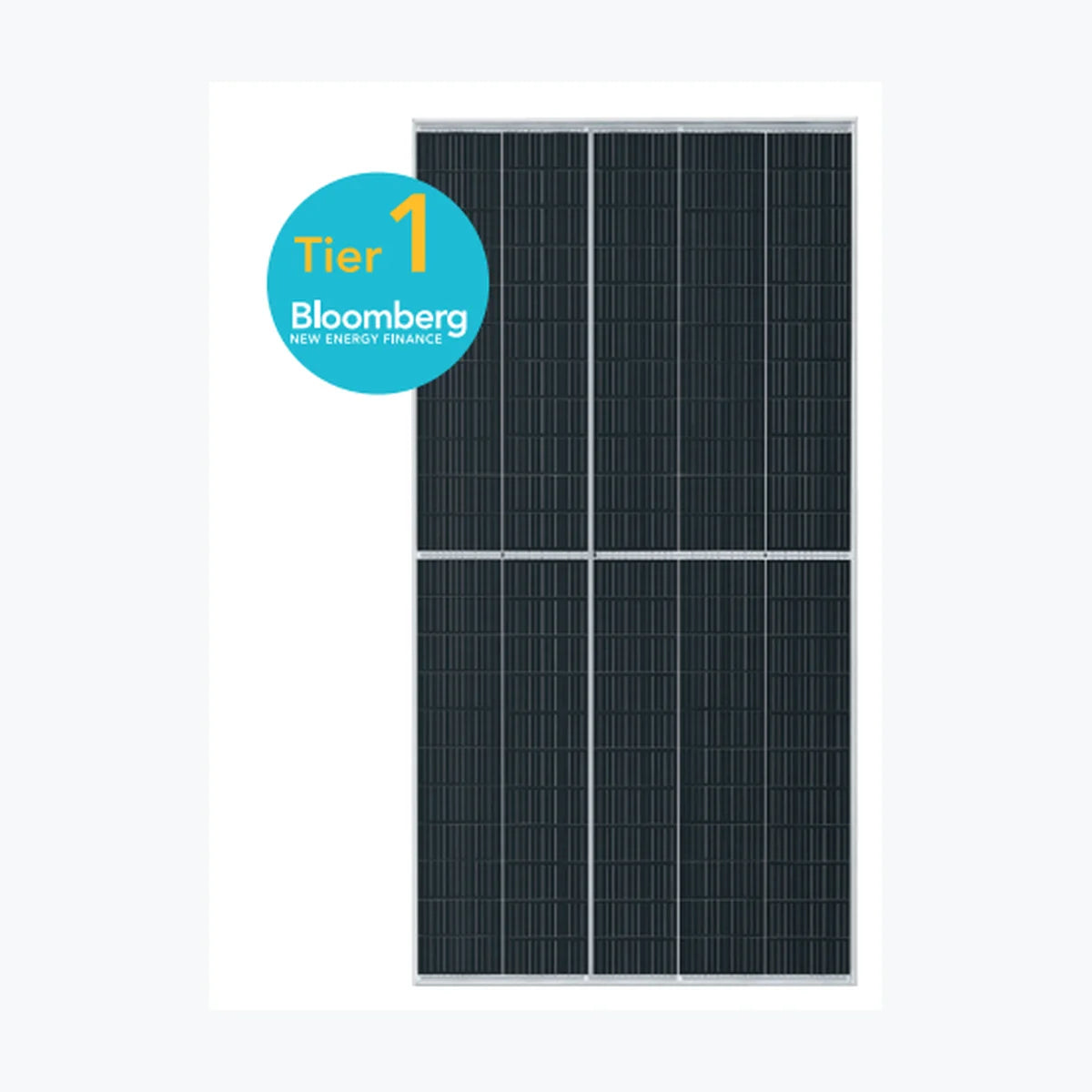

    ABi-Solar AB545-55MHC

    ABi-Solar AB545-55MHC

    $109.00 USD
    $109.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0170
    • Container price: $58,860.00 USD
    • Container qty: 720
    • Mpn: AB545-55MHC
    • Odoo id: 18,033
    • Pallet price: $2,779.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB545-55MHC Product Warranty 15 Years Power Warranty 15 Years of 87.4 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 545 Wp Voltage at Maximum Power (Vmpp) 31.43 V Current at Maximum Power (Impp) 17.35 A Open Circuit Voltage (Voc) 37.76 V Short Circuit Current (Isc) 18.47 A Panel Efficiency 20.86 % Maximum Power (Pmax) 413 Wp Voltage at Maximum Power (Vmpp) 29.2 V Current at Maximum Power (Impp) 14.15 A Open Circuit Voltage (Voc) 35.5 V Short Circuit Current (Isc) 14.88 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1096x35 mm Weight 28.6 kg Cell Number 110 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4

      Technology: PERC
      Power Range: 540 ~ 555 Wp
      Panel Efficiency: 20.67 ~ 21.24 %
      Weight: 28.6 kg
      Seller Name: ABi-Solar Inc
      Country: United States
