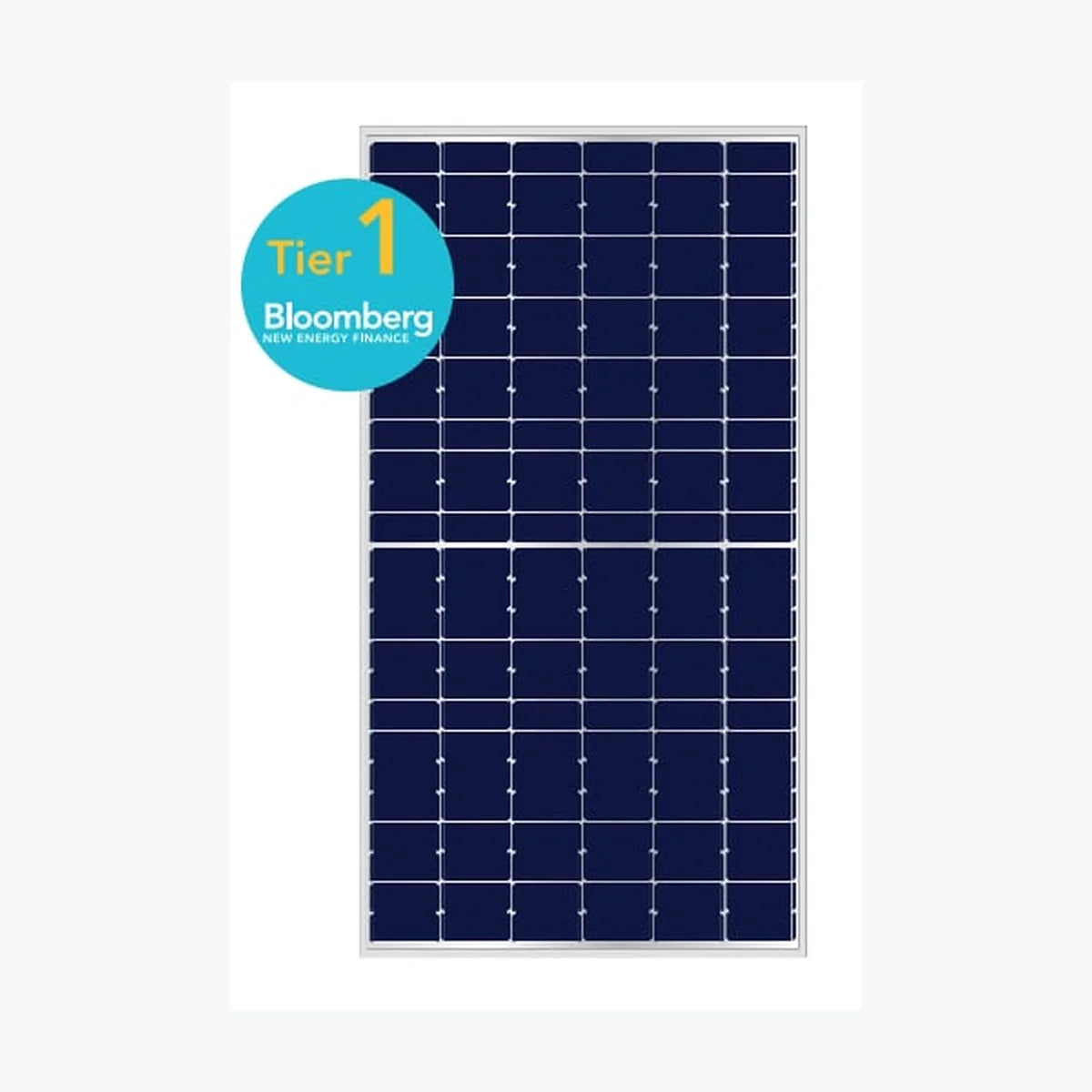

ABi-Solar AB585-78MHC
PayPal Pay in 4 interest-free payments of $40.95 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0176
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AB585-78MHC Product Warranty 12 Years Power Warranty 10 Years of 90.88 %, 25 Years of 80.68 % Total Degradation Rate ⏳ 0.77 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 585 Wp Voltage at Maximum Power (Vmpp) 44.41 V Current at Maximum Power (Impp) 13.18 A Open Circuit Voltage (Voc) 53.65 V Short Circuit Current (Isc) 13.85 A Panel Efficiency 20.94 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 41.39 V Current at Maximum Power (Impp) 10.51 A Open Circuit Voltage (Voc) 50.64 V Short Circuit Current (Isc) 11.19 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2464x1134x35 mm Weight 32.1 kg Cell Number 156 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Typ
Technology: PERC
Power Range: 575 ~ 590 Wp
Panel Efficiency: 20.58 ~ 21.12 %
Weight: 32.1 kg
Seller Name: ABi-Solar Inc
Country: United States
| SKU | PES-SPS-SOL-0176 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
