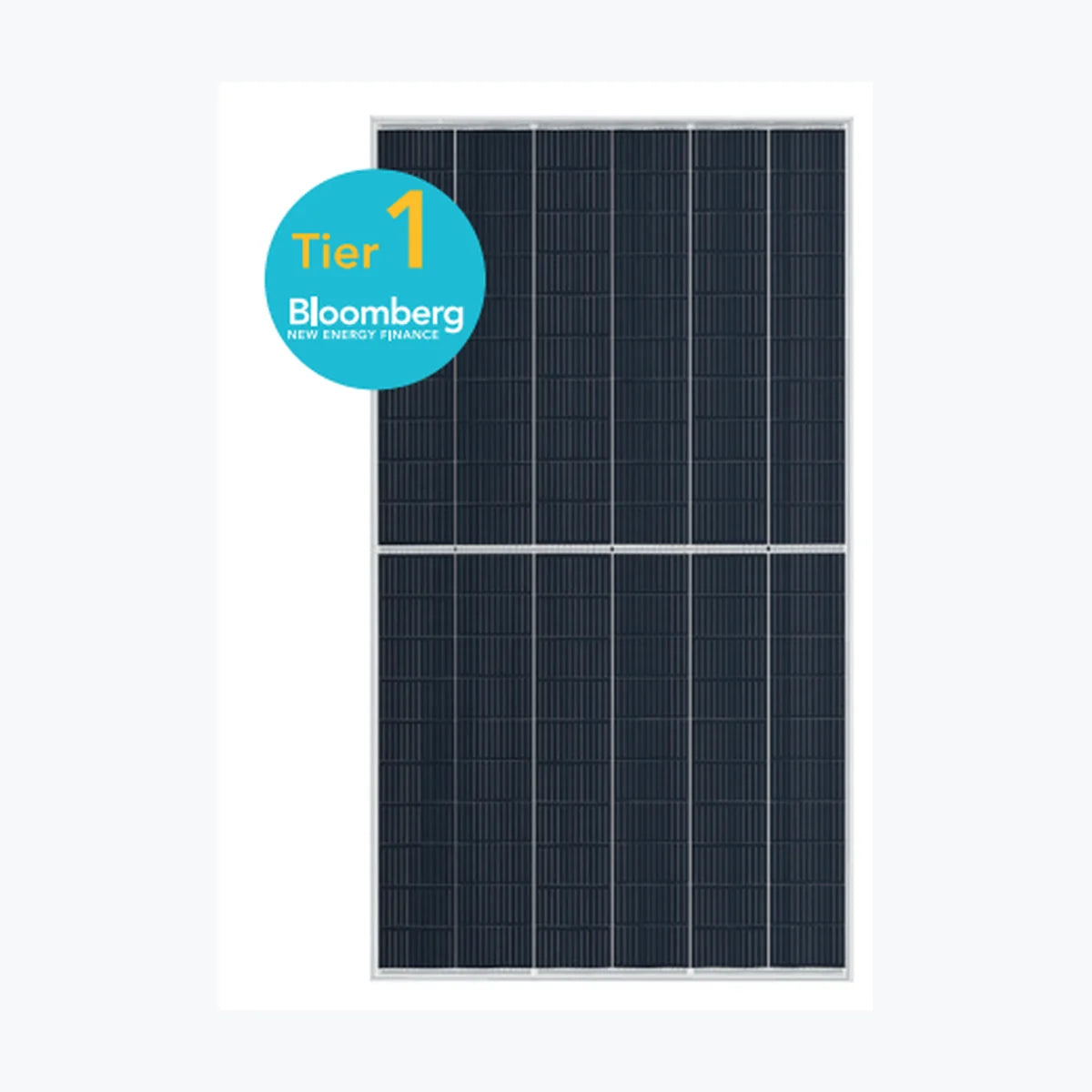

    ABi-Solar AB590-60MHC

    ABi-Solar AB590-60MHC

    $118.00 USD
    $118.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0178
    • Container price: $63,720.00 USD
    • Container qty: 720
    • Mpn: AB590-60MHC
    • Odoo id: 17,330
    • Pallet price: $3,009.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AB590-60MHC Product Warranty 15 Years Power Warranty 15 Years of 87.4 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 34.01 V Current at Maximum Power (Impp) 17.35 A Open Circuit Voltage (Voc) 41.12 V Short Circuit Current (Isc) 18.42 A Panel Efficiency 20.85 % Maximum Power (Pmax) 447 Wp Voltage at Maximum Power (Vmpp) 31.73 V Current at Maximum Power (Impp) 14.09 A Open Circuit Voltage (Voc) 38.72 V Short Circuit Current (Isc) 14.85 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.9 kg Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossec

      Technology: PERC
      Power Range: 590 ~ 605 Wp
      Panel Efficiency: 20.85 ~ 21.38 %
      Weight: 30.9 kg
      Seller Name: ABi-Solar Inc
      Country: United States
