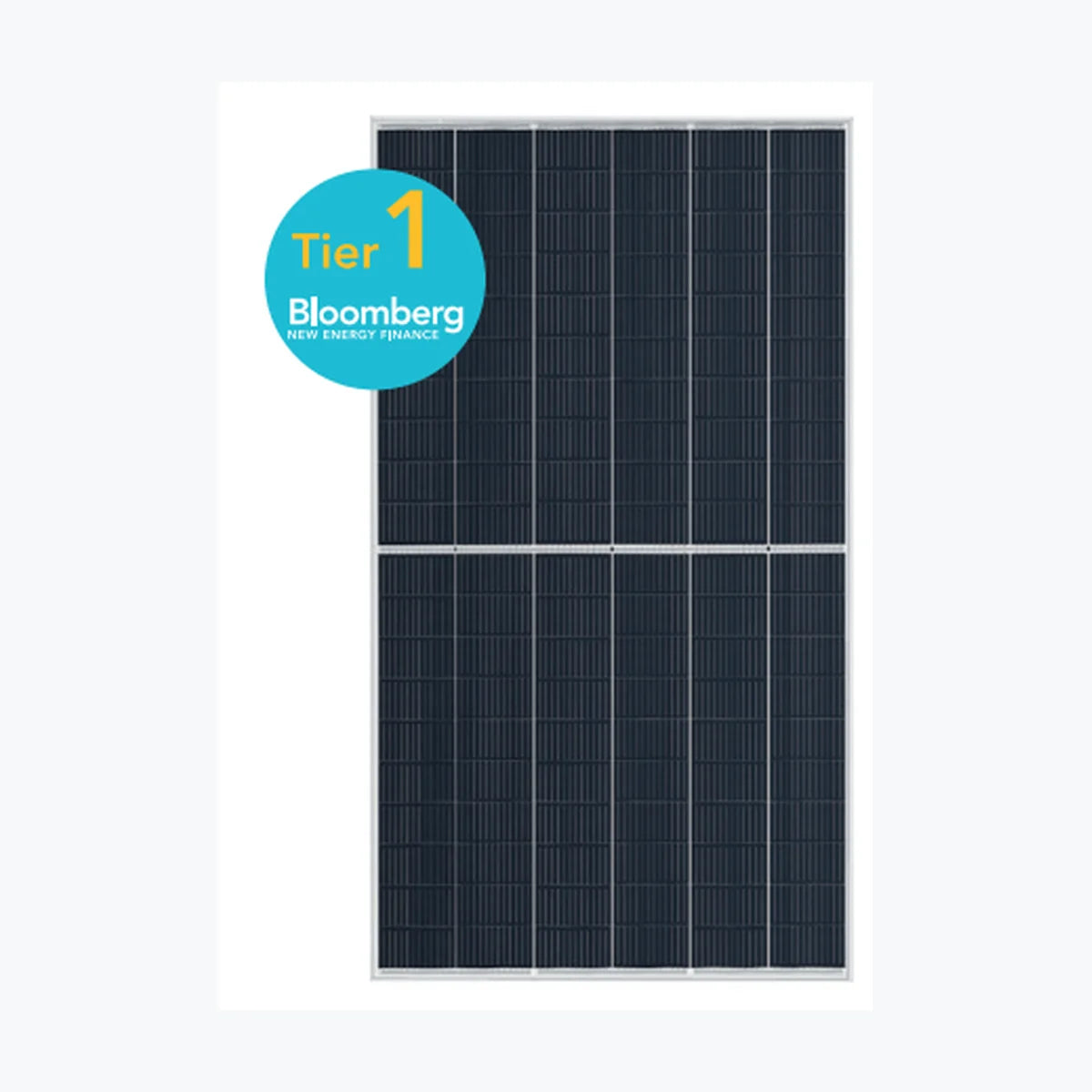

ABi-Solar AB605-60MHC
PayPal Pay in 4 interest-free payments of $42.35 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0185
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AB605-60MHC Product Warranty 15 Years Power Warranty 15 Years of 87.4 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 605 Wp Voltage at Maximum Power (Vmpp) 34.61 V Current at Maximum Power (Impp) 17.49 A Open Circuit Voltage (Voc) 41.72 V Short Circuit Current (Isc) 18.57 A Panel Efficiency 21.38 % Maximum Power (Pmax) 458 Wp Voltage at Maximum Power (Vmpp) 32.21 V Current at Maximum Power (Impp) 14.22 A Open Circuit Voltage (Voc) 39.31 V Short Circuit Current (Isc) 14.96 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1303x35 mm Weight 30.9 kg Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossec
Technology: PERC
Power Range: 590 ~ 605 Wp
Panel Efficiency: 20.85 ~ 21.38 %
Weight: 30.9 kg
Seller Name: ABi-Solar Inc
Country: United States
| SKU | PES-SPS-SOL-0185 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
