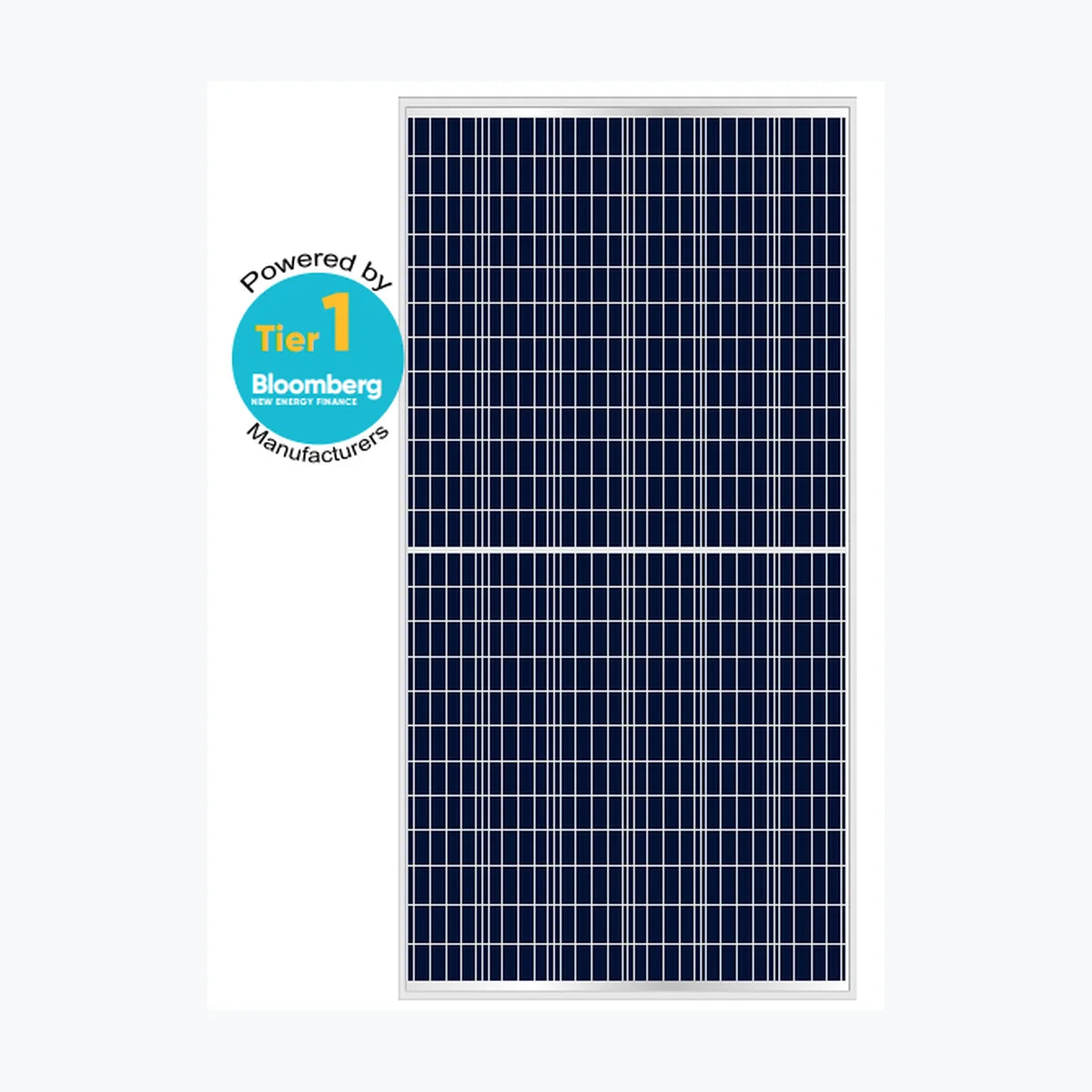

    ABi-Solar AB72-330PHC

    ABi-Solar AB72-330PHC

    $66.00 USD
    $66.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0194
    • Container price: $35,640.00 USD
    • Container qty: 720
    • Mpn: AB72-330PHC
    • Odoo id: 19,419
    • Pallet price: $1,683.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. AB72-330PHC Product Warranty 10 Years Power Warranty 12 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +4.99 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 38.3 V Current at Maximum Power (Impp) 8.62 A Open Circuit Voltage (Voc) 46 V Short Circuit Current (Isc) 9.11 A Panel Efficiency 16.67 % Maximum Power (Pmax) 242 Wp Voltage at Maximum Power (Vmpp) 35.28 V Current at Maximum Power (Impp) 6.88 A Open Circuit Voltage (Voc) 42.68 V Short Circuit Current (Isc) 7.33 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.39 %/°C Temperature Coefficient of Voc -0.3 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1996x992x40 mm Weight 22.5 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Prot

      Power Range: 330 ~ 345 Wp
      Panel Efficiency: 16.67 ~ 17.42 %
      Weight: 22.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
