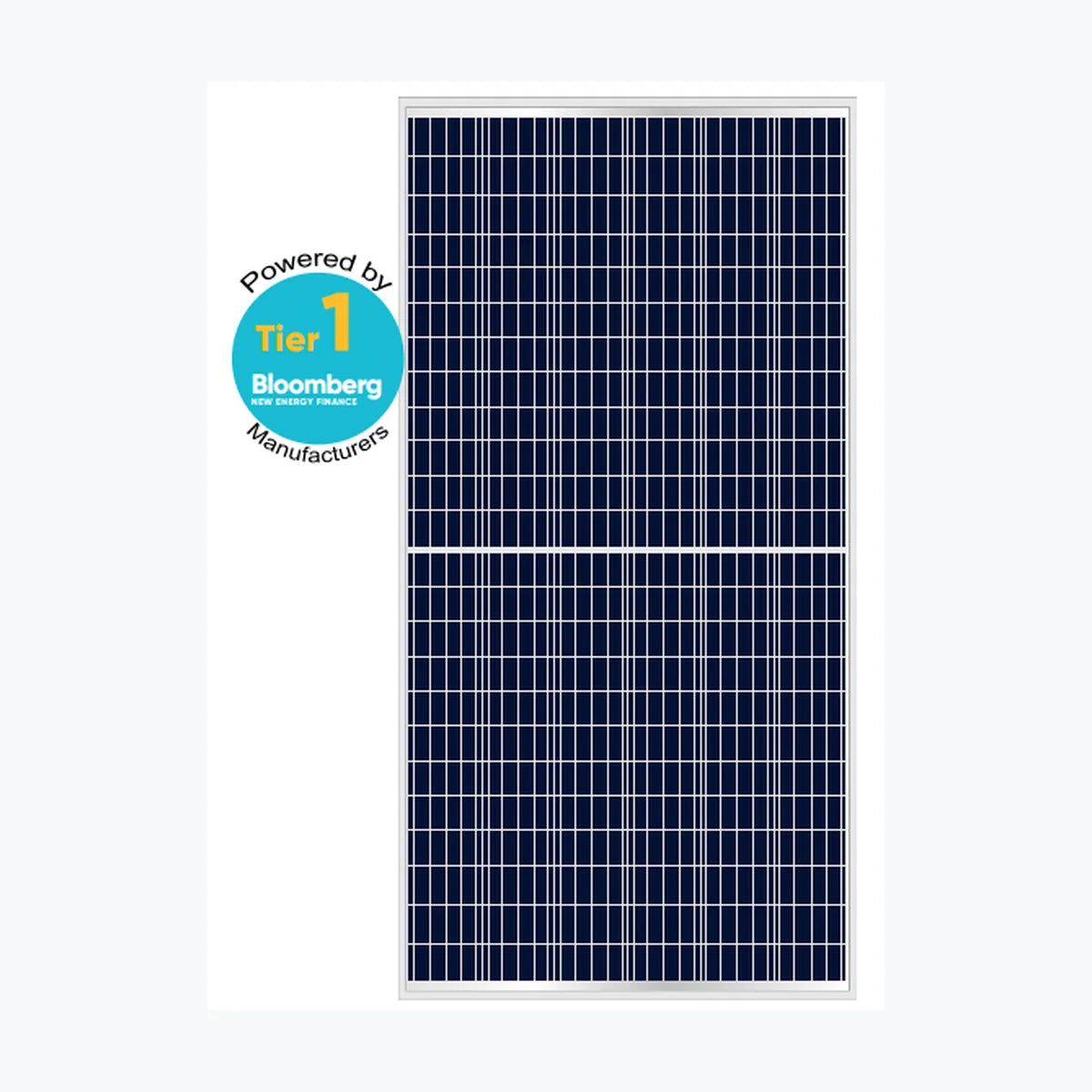

    ABi-Solar AB72-335PHC

    ABi-Solar AB72-335PHC

    $67.00 USD
    $67.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0195
    • Container price: $36,180.00 USD
    • Container qty: 720
    • Mpn: AB72-335PHC
    • Odoo id: 19,420
    • Pallet price: $1,708.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Polycrystalline Model No. AB72-335PHC Product Warranty 10 Years Power Warranty 12 Years of 90 %, 25 Years of 80 % Total Degradation Rate ⏳ 0.8 % Power Tolerance 0 ~ +4.99 % Maximum Power (Pmax) 335 Wp Voltage at Maximum Power (Vmpp) 38.5 V Current at Maximum Power (Impp) 8.71 A Open Circuit Voltage (Voc) 46.2 V Short Circuit Current (Isc) 9.19 A Panel Efficiency 16.92 % Maximum Power (Pmax) 246 Wp Voltage at Maximum Power (Vmpp) 35.47 V Current at Maximum Power (Impp) 6.95 A Open Circuit Voltage (Voc) 42.86 V Short Circuit Current (Isc) 7.39 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.39 %/°C Temperature Coefficient of Voc -0.3 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 20 A Panel Dimension (H/W/D) 1996x992x40 mm Weight 22.5 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Pr

      Power Range: 330 ~ 345 Wp
      Panel Efficiency: 16.67 ~ 17.42 %
      Weight: 22.5 kg
      Seller Name: ABi-Solar Inc
      Country: United States
