    In Stock

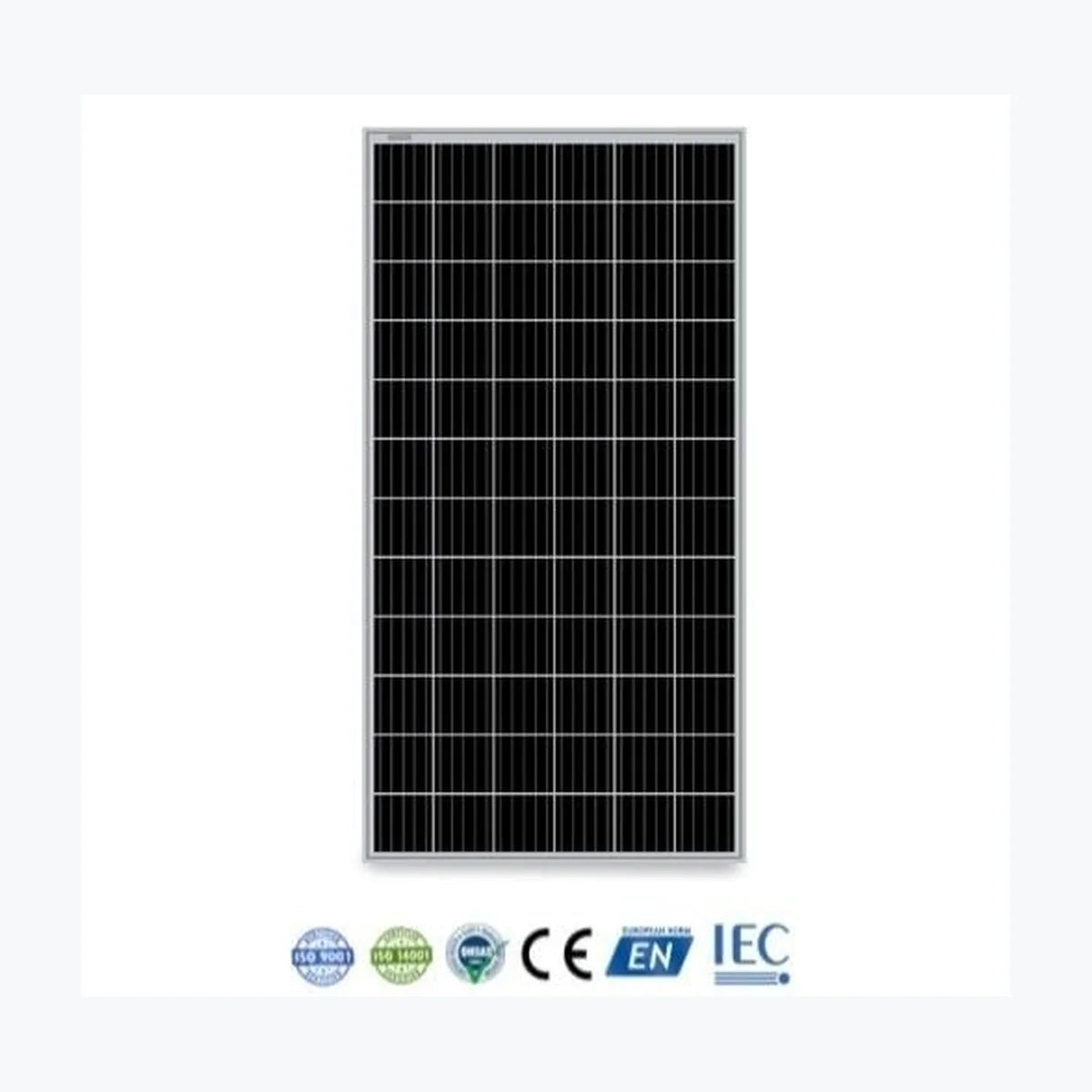

    ACS Enerji 420W

    ACS Enerji 420W

    $84.00 USD
    $84.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0204
    • Container price: $45,360.00 USD
    • Container qty: 720
    • Odoo id: 20,742
    • Pallet price: $2,142.00 USD
    • Pallet qty: 30
    • Unit price: $84.00 USD
    View full details

    Product Description

    • Type Monocrystalline Model No. 420W Product Warranty 10 Years Power Tolerance 0 ~ +1.5 % Maximum Power (Pmax) 420 Wp Voltage at Maximum Power (Vmpp) 41.6 V Current at Maximum Power (Impp) 10.1 A Open Circuit Voltage (Voc) 49.92 V Short Circuit Current (Isc) 10.65 A Panel Efficiency 21.12 % Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.28 %/°C Temperature Coefficient of Isc 0.048 %/°C Maximum System Voltage 1000 V Series Fuse Rating 15 A Panel Dimension (H/W/D) 1987x1001x35 mm Weight 22 kg Cell Size 158.75×158.75 mm Cell Number 72 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

      Technology: PERC
      Power Range: 400 ~ 420 Wp
      Panel Efficiency: 20.11 ~ 21.12 %
      Weight: 22 kg
      Seller Name: ACS Enerji (Lexron)
      Country: Turkey
