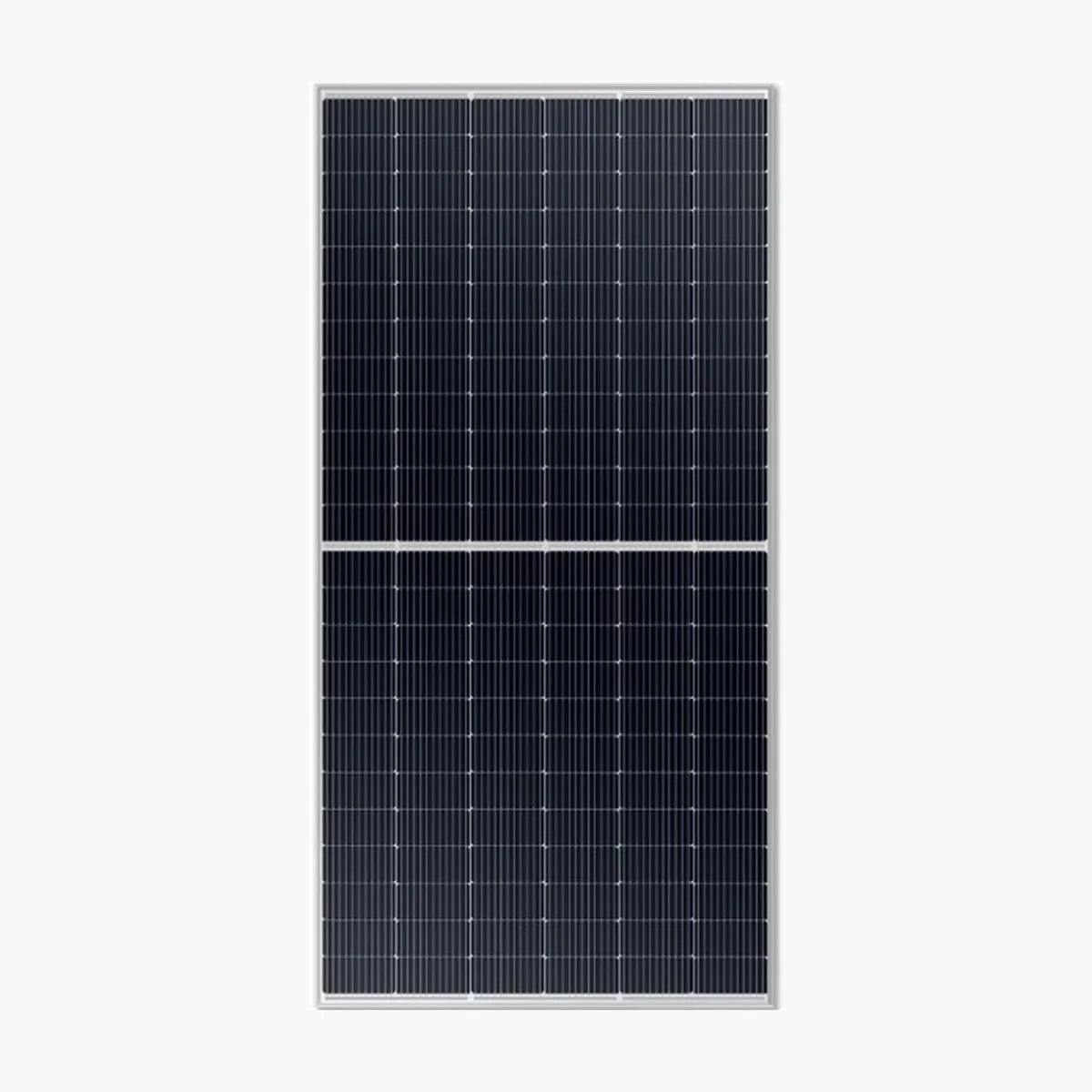

ACS Enerji 575W 575-600W N-Type TOPCon Monocrystalline Solar Panel
Model 575 | N-Type TOPCon | 144 Half-Cell | Monocrystalline | 1500V System Voltage
Product Overview
The ACS Enerji 575W N-Type TOPCon solar panel delivers exceptional performance for modern energy systems. This monocrystalline module features 144 half-cut cells using advanced tunnel oxide passivated contact technology. It achieves a maximum efficiency of 22.26% with a power output of 575 watts. The panel uses N-type silicon cells to minimize degradation and boost low-light performance. Its robust design withstands extreme temperatures from -40°C to 85°C. The 3.2mm tempered glass with anti-reflective coating ensures high light absorption. This panel is ideal for residential and commercial solar installations requiring high reliability. It supports a maximum system voltage of 1500V for efficient grid integration. The anodized aluminum frame provides structural strength and long-term durability. With a 30-year power warranty, it guarantees sustained energy production over decades. This product represents the future of efficient and sustainable solar energy generation.
Key Benefits
High Efficiency: Achieves 22.26% module efficiency with N-type TOPCon technology for maximum energy yield.
Low-Light Performance: Delivers excellent output during mornings, evenings, and cloudy days due to advanced cell design.
Reduced Degradation: N-type cells with TOPCon technology offer lower LID/LeTID degradation over the lifespan.
Superior Durability: Certified to withstand high wind loads (2400 Pa) and snow loads (5400 Pa) for long-term use.
Long Warranty: Includes a 30-year power warranty guaranteeing 87.4% output after 30 years of operation.
How It Works
This solar panel converts sunlight into electricity using advanced N-type monocrystalline cells. The tunnel oxide passivated contact layer reduces electron recombination at the cell surface. This process significantly increases cell-level efficiency above 22% compared to traditional PERC cells. The half-cut cell design reduces internal resistance and minimizes power loss. The multi-busbar configuration enhances current collection and improves overall performance. The anti-reflective coating ensures maximum light absorption while reducing surface dust accumulation. This technology enables stable energy output even under challenging environmental conditions. The hydrophobic surface promotes self-cleaning to maintain optimal performance year-round.
TOPCon Technology: The tunnel oxide layer passivates the silicon surface to prevent electron loss. This results in higher voltage and efficiency for every photon captured.
Half-Cut Cell Design: Cutting cells in half reduces the current flowing through each segment. This lowers resistive losses and improves performance in partial shading.
Anti-Reflective Coating: The specialized coating minimizes light reflection off the glass surface. This ensures more sunlight enters the cells to generate electricity.
Technical Specifications
| Maximum Power (Pmax) | 575 Wp |
| Power Range | 575 ~ 600 Wp |
| Module Efficiency | 22.26% ~ 23.23% |
| Voltage at Max Power (Vmpp) | 42.6 V |
| Current at Max Power (Impp) | 13.5 A |
| Open Circuit Voltage (Voc) | 51.12 V |
| Short Circuit Current (Isc) | 14.24 A |
| Cell Type | N-type Mono-crystalline |
| Cell Number | 144 cells (Half-Cut) |
| Dimensions (H/W/D) | 2278 x 1134 x 35 mm |
| Weight | 28 kg |
| Glass Thickness | 3.2 mm (Tempered, AR Coated) |
| Frame Material | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm² |
| Max System Voltage | 1500 V (IEC) |
| Fuse Rating | 30 A |
| Operating Temperature | -40°C to +85°C |
| Temp Coeff. of Pmax | -0.35%/°C |
| Temp Coeff. of Voc | -0.28%/°C |
| Temp Coeff. of Isc | +0.048%/°C |
| Nominal Cell Temp | 45±2°C |
| Power Tolerance | 0 ~ +5W (Positive) |
| Degradation Rate | 0.40% Annual (87.4% after 30 yrs) |
Certifications & Compliance
Certifications: IEC61215, IEC61730, IEC61701, IEC62716
Inverter Compatibility: Compatible with all standard grid-tie and hybrid inverters
Environmental: ISO 14001 Environmental Management, ISO 45001 Occupational Health
Warranty: 12 Years Product Warranty, 30 Years Power Warranty (87.4% output)
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
