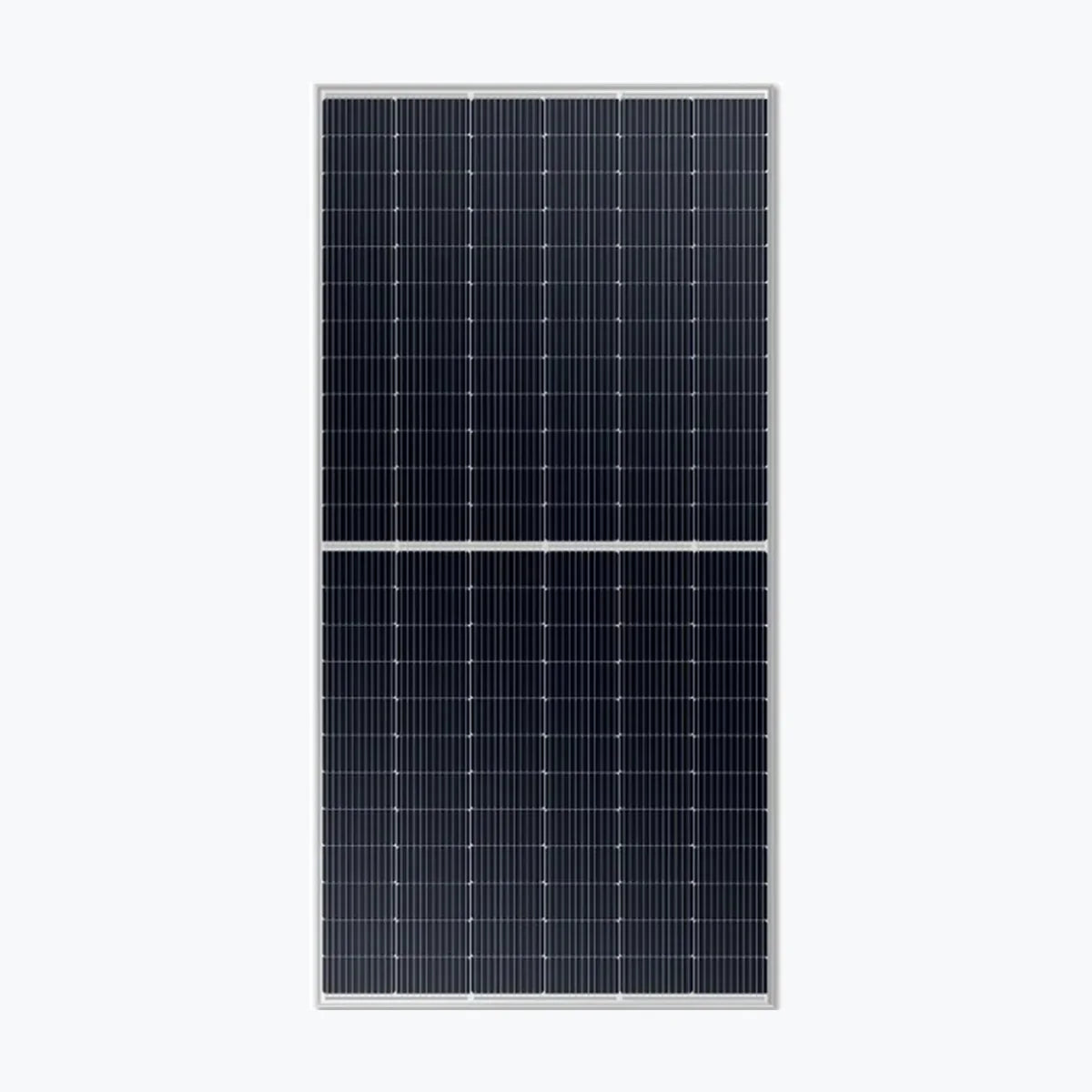

ACS Enerji 580W Lexron TOPCon N-Type Monocrystalline Solar Panel
Model 580W | TOPCon N-Type | 144 Half-Cell | Monocrystalline | 1500V System Voltage
Product Overview
The ACS Enerji 580W Lexron TOPCon N-Type Monocrystalline Solar Panel delivers exceptional performance for modern energy systems. This premium unit features advanced TOPCon technology with 144 half-cut N-type cells. It achieves a remarkable 22.45% efficiency rating under standard test conditions. The panel offers a positive power tolerance of 0 to +5W for guaranteed reliability. Its robust design withstands wind loads up to 2400 Pascal and snow loads of 5400 Pascal. The anti-reflective hydrophobic coating improves light absorption while reducing surface dust accumulation. This high-performance module is ideal for residential, commercial, and industrial solar applications. It ensures excellent performance even during low-light mornings, evenings, and cloudy days. The 30-year power warranty guarantees 87.4% output after three decades of operation.
Key Benefits
Advanced TOPCon Technology: N-type modules with TOPCon technology offer lower LID/LeTID degradation and better low-light performance.
High Power Output: The 580W nameplate capacity ensures high energy generation for maximum system efficiency.
Superior Durability: Certified to withstand extreme wind loads of 2400 Pascal and snow loads of 5400 Pascal.
Self-Cleaning Surface: Anti-reflective hydrophobic coating improves light absorption and reduces surface dust accumulation naturally.
Long-Term Warranty: Includes a 12-year product warranty and a 30-year power warranty guaranteeing 87.4% output.
How It Works
This solar panel converts sunlight into electricity using advanced N-type monocrystalline cells with TOPCon technology. The 144 half-cut cell design reduces electrical resistance and improves current collection efficiency significantly. When photons strike the cell surface, they excite electrons to create a flow of direct current. The anti-reflective coating maximizes light absorption by minimizing surface reflection losses. This ensures high energy output even in low-light conditions like early mornings or cloudy days.
Photon Absorption: Photons from sunlight hit the N-type silicon cells and excite electrons to create an electric flow. This process generates direct current that can be converted into usable alternating current for your home.
Low-Light Performance: The TOPCon technology enables excellent performance during mornings, evenings, and cloudy days. This ensures consistent energy generation even when sunlight intensity is lower than standard conditions.
Dust Reduction: The hydrophobic coating creates a self-cleaning surface that reduces dust accumulation on the panel. This maintains high light absorption efficiency without requiring frequent manual cleaning.
Technical Specifications
| Maximum Power (Pmax) | 580 Wp |
| Power Range | 575 ~ 600 Wp |
| Module Efficiency | 22.45% (STC) |
| Cell Technology | N-Type TOPCon Monocrystalline |
| Cell Number | 144 Half-Cut Cells |
| Voltage at Max Power (Vmpp) | 42.75 V |
| Current at Max Power (Impp) | 13.57 A |
| Open Circuit Voltage (Voc) | 51.3 V |
| Short Circuit Current (Isc) | 14.31 A |
| Maximum System Voltage | 1500 V (IEC) |
| Series Fuse Rating | 30 A |
| Temperature Coefficient of Pmax | -0.35%/°C |
| Temperature Coefficient of Voc | -0.28%/°C |
| Temperature Coefficient of Isc | 0.048%/°C |
| Nominal Operating Cell Temp (NOCT) | 45±2°C |
| Operating Temperature Range | -40°C to +85°C |
| Panel Dimensions (H/W/D) | 2278 x 1134 x 35 mm |
| Weight | 28 kg |
| Front Cover Glass | 3.2mm AR Coated Tempered Glass |
| Frame Material | 35mm Anodized Aluminum Alloy |
| Junction Box | IP68 Rated |
| Cable Crossection | 4 mm² |
| Connector Type | MC4 EVO2 or Compatible |
| Power Tolerance | 0 to +5W Positive |
| Degradation Rate (Year 1) | 1% |
| Annual Power Attenuation | 0.40% |
Certifications & Compliance
Certifications: IEC61215, IEC61730, IEC61701, IEC62716
Inverter Compatibility: Compatible with all standard PV inverters featuring MC4 connectors
Environmental: ISO 9001 Quality Management, ISO 14001 Environmental Management, ISO 45001 Occupational Health
Warranty: 12-Year Product Warranty, 30-Year Power Warranty (87.4% output at year 30)
