In Stock

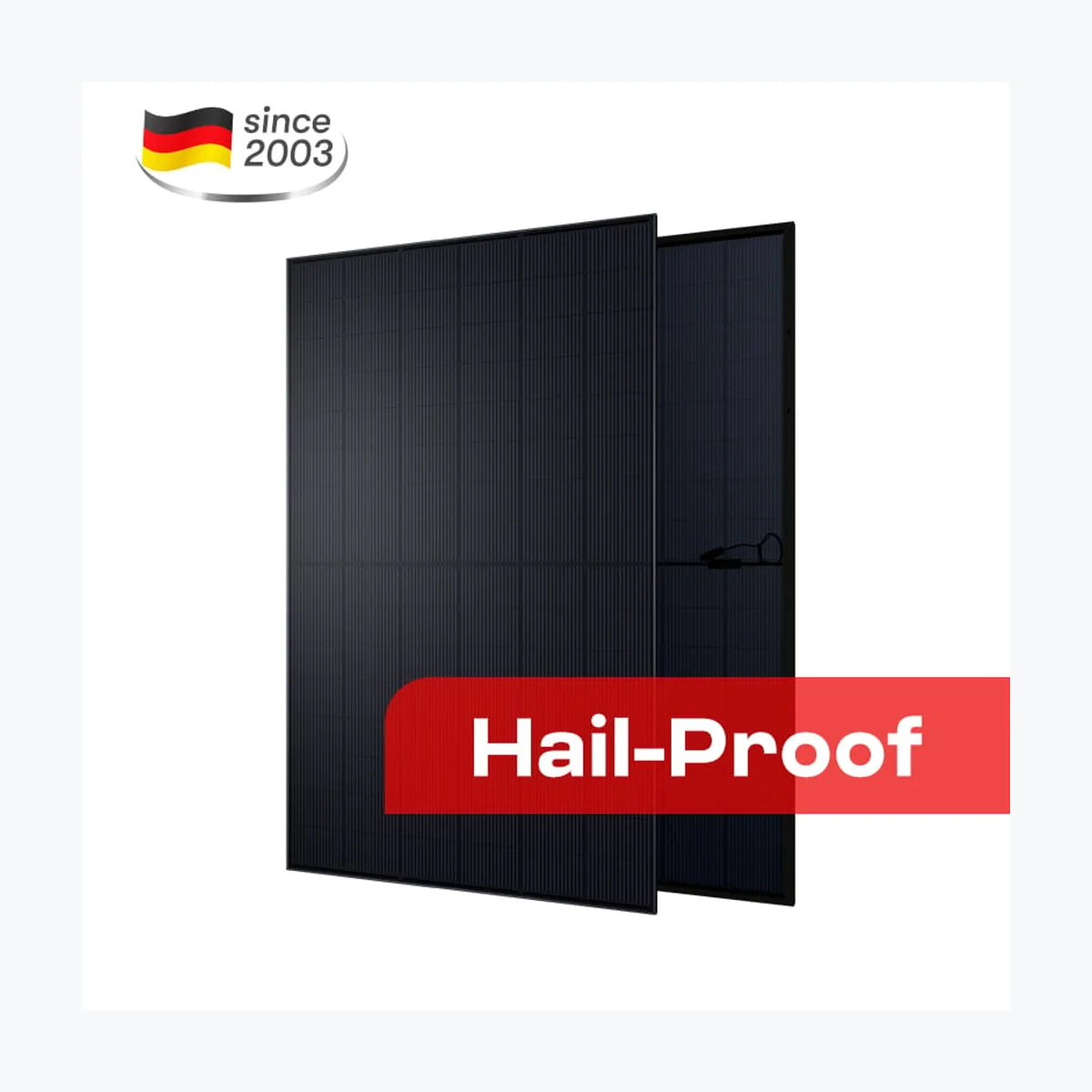

AESOLAR AE 435 CMER-96BDE-I
AESOLAR AE 435 CMER-96BDE-I
Couldn't load pickup availability
Specification
- SKU:PES-SPS-SOL-0334
- Container price:
- Container qty:
- Mpn:
- Odoo id:
- Pallet price:
- Pallet qty:
Product Description
-
Type Monocrystalline Model No. AE 435 CMER-96BDE-I Product Warranty 30 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 29.22 V Current at Maximum Power (Impp) 14.89 A Open Circuit Voltage (Voc) 34.77 V Short Circuit Current (Isc) 15.76 A Panel Efficiency 21.79 % Maximum Power (Pmax) 327 Wp Voltage at Maximum Power (Vmpp) 27.08 V Current at Maximum Power (Impp) 12.08 A Open Circuit Voltage (Voc) 32.43 V Short Circuit Current (Isc) 12.7 A Temperature 43±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1762x1133x30 mm Weight 30 kg Cell Size 210×210 mm Cell Number 96 Glass Type Anti-reflection Coating, Tempered Glass Thickness 3.2 mm Encapsulant Type POE Frame Type Anodized Aluminium
Technology: TOPCon
Power Range: 430 ~ 450 Wp
Panel Efficiency: 21.54 ~ 22.54 %
Weight: 30 kg
Seller Name: AE Alternative Energy GmbH
Country: Germany -
