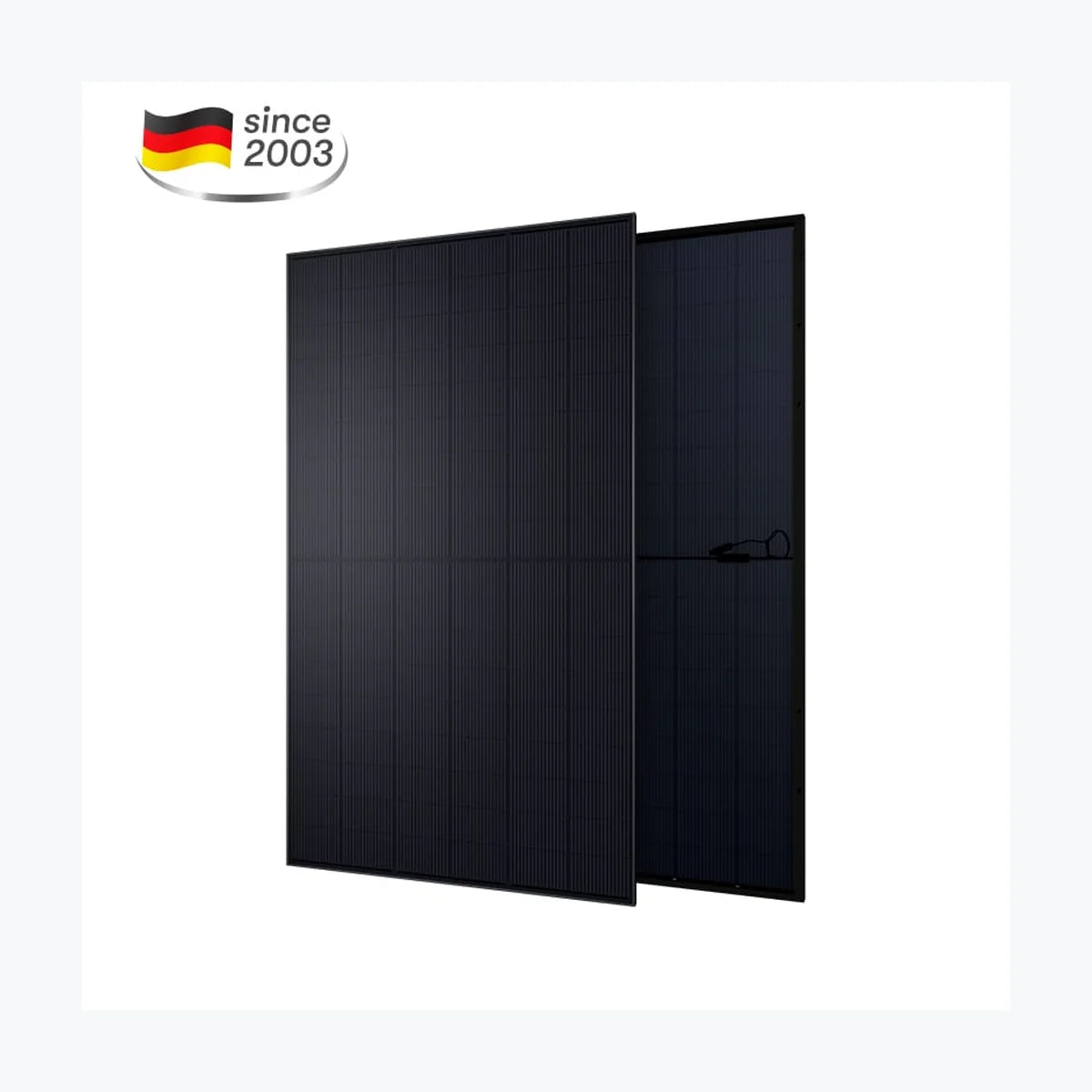

    AESOLAR AE 480 CMER-108BDE

    AESOLAR AE 480 CMER-108BDE

    $96.00 USD
    $96.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0353
    • Container price: $51,840.00 USD
    • Container qty: 720
    • Mpn: CMER-108BDE
    • Odoo id: 25,401
    • Pallet price: $2,448.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE 480 CMER-108BDE Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 480 Wp Voltage at Maximum Power (Vmpp) 32.8 V Current at Maximum Power (Impp) 14.63 A Open Circuit Voltage (Voc) 38.9 V Short Circuit Current (Isc) 15.62 A Panel Efficiency 21.57 % Maximum Power (Pmax) 367 Wp Voltage at Maximum Power (Vmpp) 30.4 V Current at Maximum Power (Impp) 12.08 A Open Circuit Voltage (Voc) 36.1 V Short Circuit Current (Isc) 12.88 A Temperature 43±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1964x1133x30 mm Weight 27.5 kg Cell Size 210×210 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junc

      Technology: TOPCon
      Power Range: 480 ~ 500 Wp
      Panel Efficiency: 21.57 ~ 22.47 %
      Weight: 27.5 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
