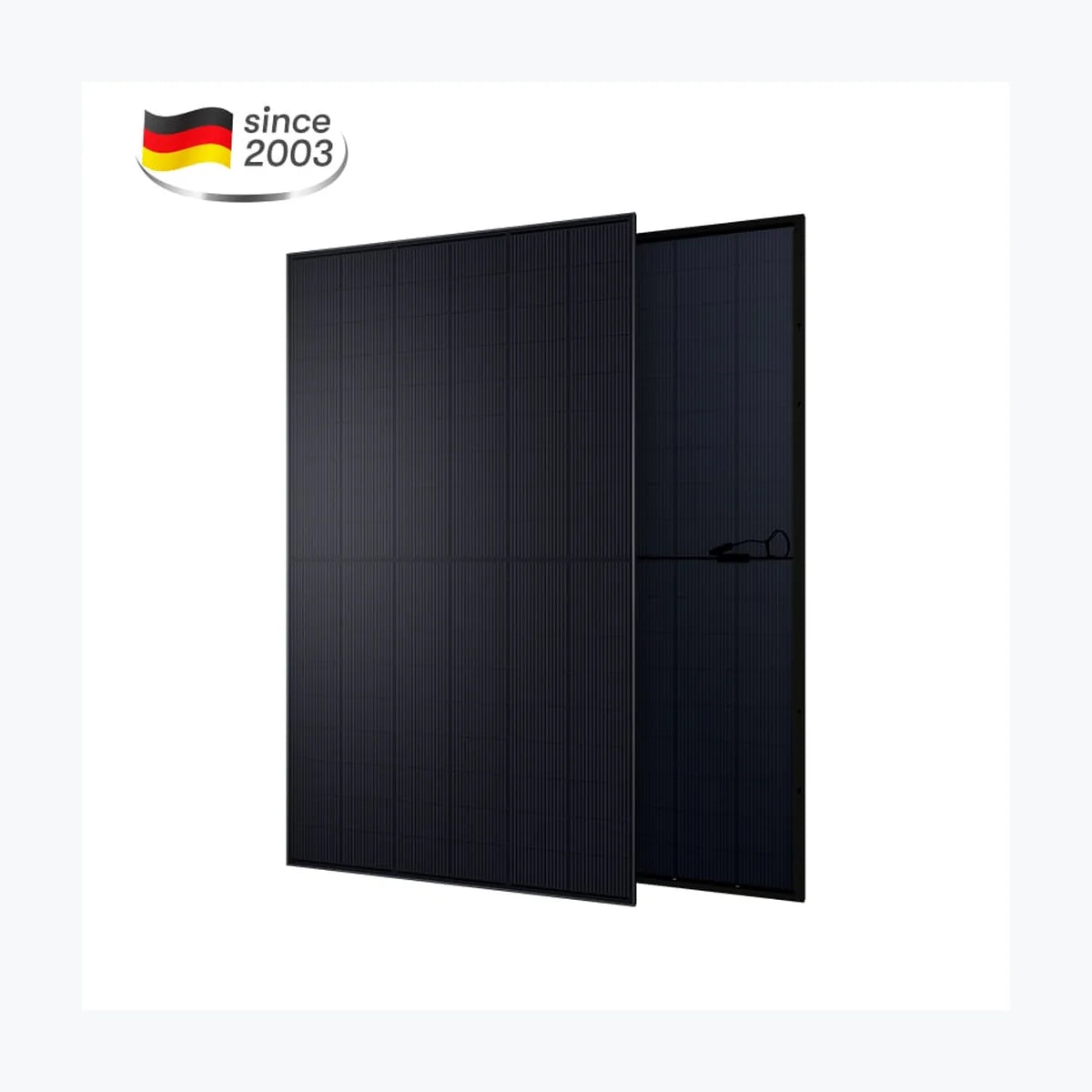

Aesolar AE 490 CMER-108BDE
PayPal Pay in 4 interest-free payments of $24.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0359
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AE 490 CMER-108BDE Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 490 Wp Voltage at Maximum Power (Vmpp) 33.2 V Current at Maximum Power (Impp) 14.76 A Open Circuit Voltage (Voc) 39.3 V Short Circuit Current (Isc) 15.78 A Panel Efficiency 22.02 % Maximum Power (Pmax) 375 Wp Voltage at Maximum Power (Vmpp) 30.8 V Current at Maximum Power (Impp) 12.17 A Open Circuit Voltage (Voc) 36.5 V Short Circuit Current (Isc) 13 A Temperature 43±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1964x1133x30 mm Weight 27.5 kg Cell Size 210×210 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junctio
Technology: TOPCon
Power Range: 480 ~ 500 Wp
Panel Efficiency: 21.57 ~ 22.47 %
Weight: 27.5 kg
Seller Name: AE Alternative Energy GmbH
Country: Germany
| SKU | PES-SPS-SOL-0359 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
