    In Stock

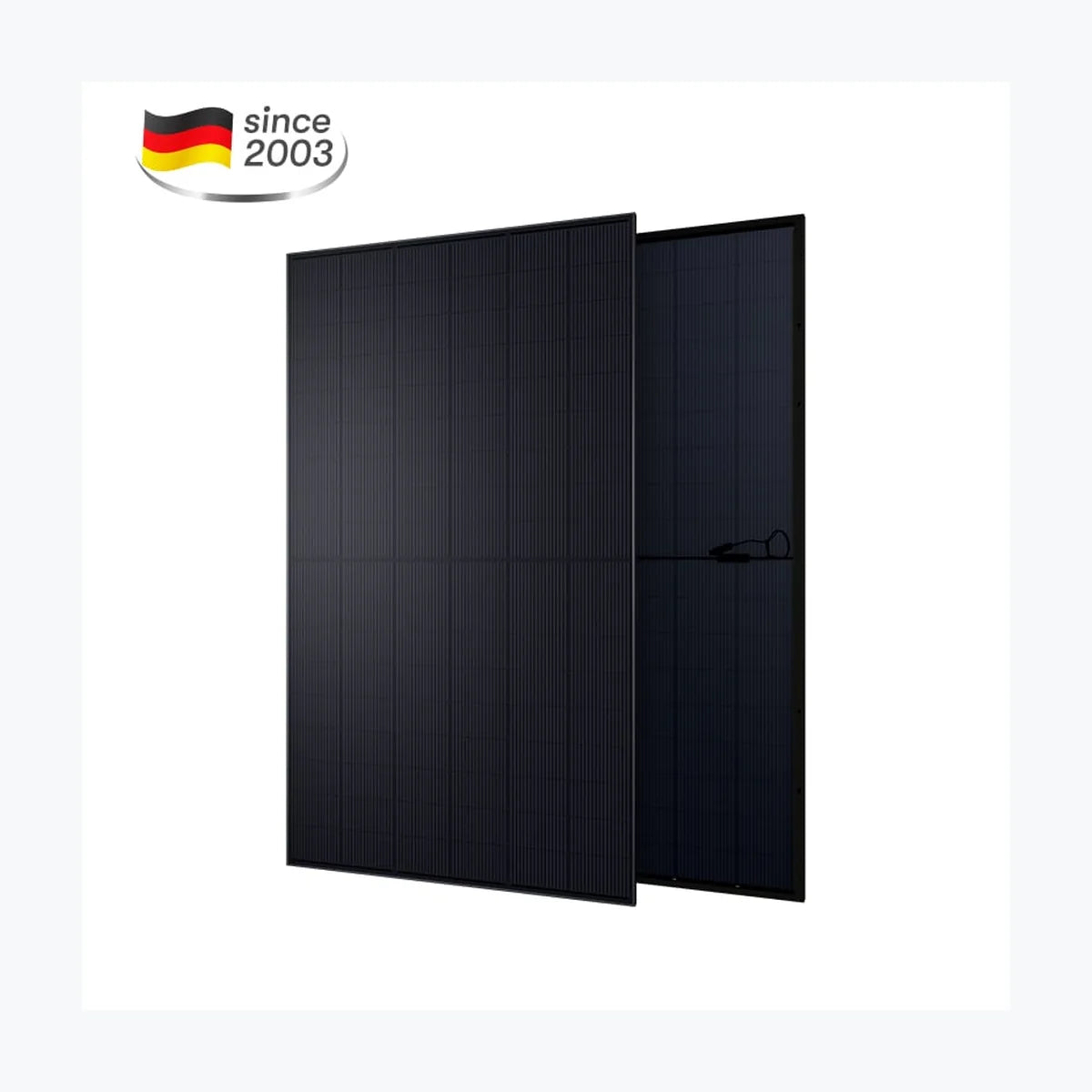

    AESOLAR AE 500 CMER-108BDE

    AESOLAR AE 500 CMER-108BDE

    $100.00 USD
    $100.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0366
    • Container price: $54,000.00 USD
    • Container qty: 720
    • Mpn: CMER-108BDE
    • Odoo id: 25,405
    • Pallet price: $2,550.00 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE 500 CMER-108BDE Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 500 Wp Voltage at Maximum Power (Vmpp) 33.6 V Current at Maximum Power (Impp) 14.88 A Open Circuit Voltage (Voc) 39.7 V Short Circuit Current (Isc) 15.94 A Panel Efficiency 22.47 % Maximum Power (Pmax) 383 Wp Voltage at Maximum Power (Vmpp) 31.2 V Current at Maximum Power (Impp) 12.26 A Open Circuit Voltage (Voc) 36.9 V Short Circuit Current (Isc) 13.12 A Temperature 43±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.24 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 1964x1133x30 mm Weight 27.5 kg Cell Size 210×210 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junc

      Technology: TOPCon
      Power Range: 480 ~ 500 Wp
      Panel Efficiency: 21.57 ~ 22.47 %
      Weight: 27.5 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
