• AESOLAR AE 590CMD-144BDS
1 1

Out of Stock

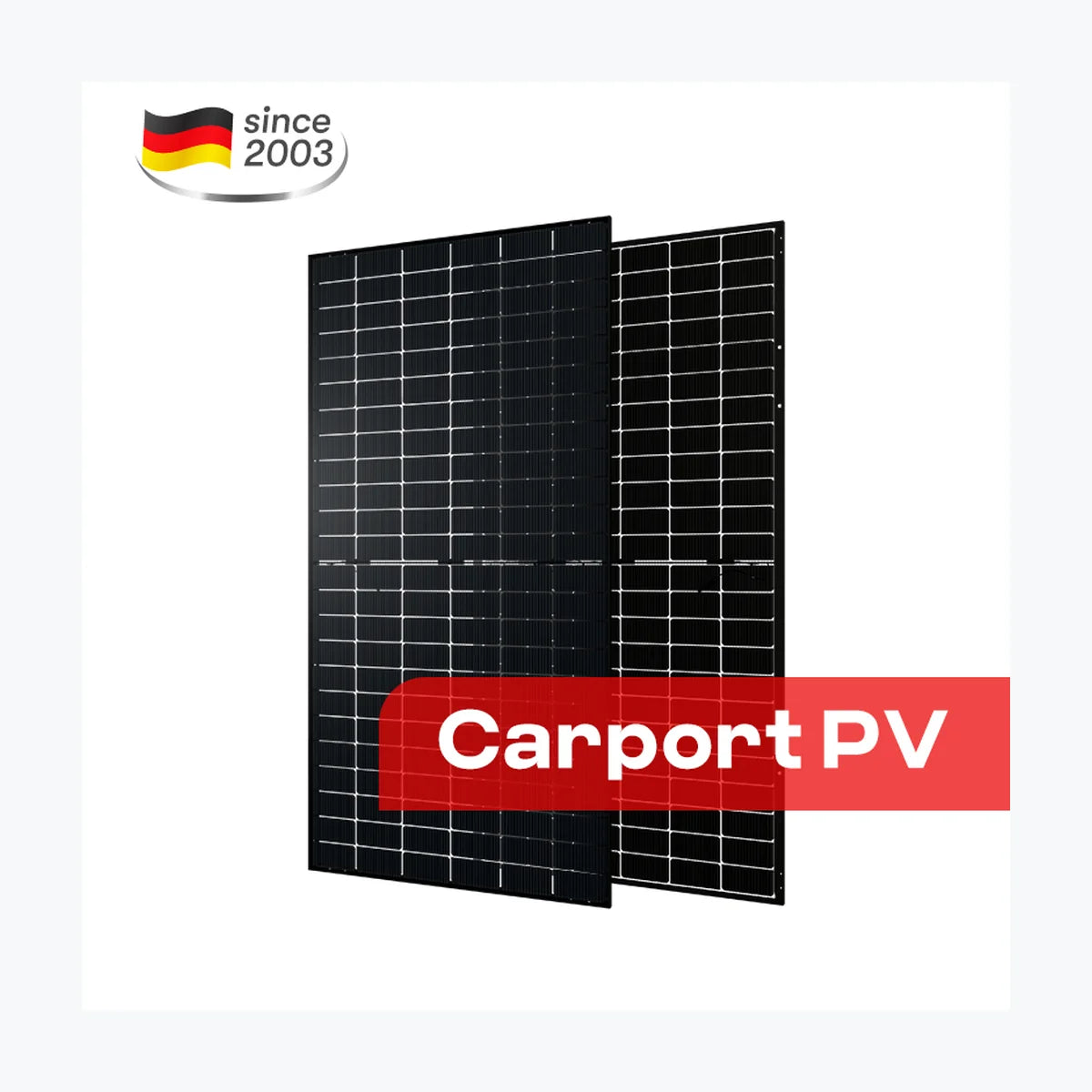

AESOLAR AE 590CMD-144BDS

AESOLAR AE 590CMD-144BDS

$118.00 USD
$118.00 USD
Sale Sold out
Shipping calculated at checkout.
Return policy

Specification

  • SKU:PES-SPS-SOL-0375
  • Container price: $63,720.00 USD
  • Container qty: 720
  • Pallet price: $3,009.00 USD
  • Pallet qty: 30
  • Unit price: $118.00 USD
View full details

Product Description

  • Type Monocrystalline Model No. AE 590CMD-144BDS Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1.33 % Maximum Power (Pmax) 590 Wp Voltage at Maximum Power (Vmpp) 43.29 V Current at Maximum Power (Impp) 13.63 A Open Circuit Voltage (Voc) 52.02 V Short Circuit Current (Isc) 14.54 A Panel Efficiency 22.86 % Maximum Power (Pmax) 448 Wp Voltage at Maximum Power (Vmpp) 40.22 V Current at Maximum Power (Impp) 11.14 A Open Circuit Voltage (Voc) 48.6 V Short Circuit Current (Isc) 11.7 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2278x1133x30 mm Weight 31 kg Cell Size 182×91 mm Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length 1200 mm Download Manufacturer's PDF Datasheet

    Technology: Bifacial, TOPCon, N-type
    Power Range: 570 ~ 595 Wp
    Panel Efficiency: 22.08 ~ 23.05 %
    Weight: 31 kg
    Seller: AE Alternative Energy GmbH
    Country: Germany
