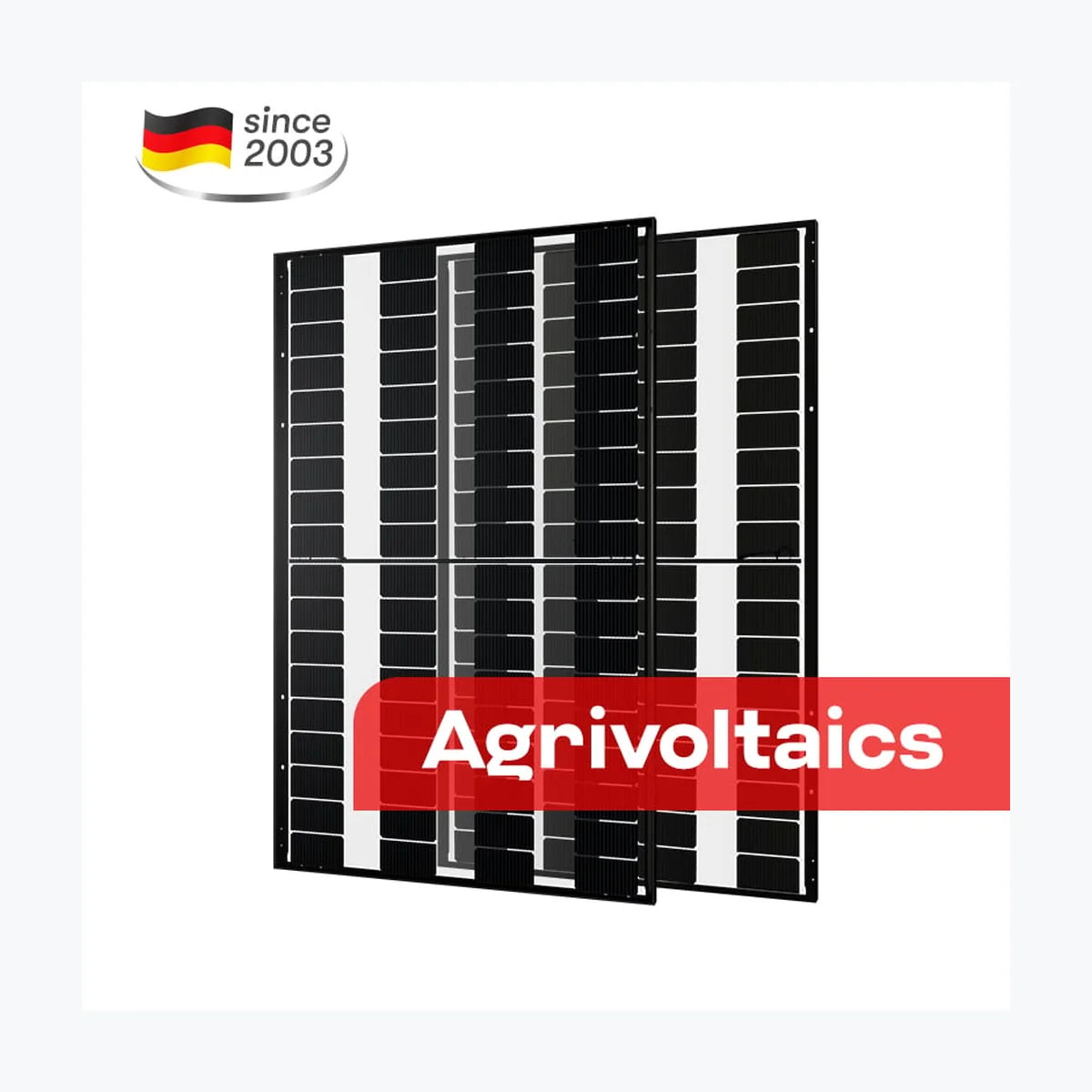

    AESOLAR AE285Terra E CMD-72BD

    AESOLAR AE285Terra E CMD-72BD

    $57.00 USD
    $57.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0383
    • Container price: $30,780.00 USD
    • Container qty: 720
    • Mpn: CMD-72BD
    • Odoo id: 25,392
    • Pallet price: $1,453.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE285Terra E CMD-72BD Product Warranty 30 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 285 Wp Voltage at Maximum Power (Vmpp) 21.62 V Current at Maximum Power (Impp) 13.18 A Open Circuit Voltage (Voc) 25.59 V Short Circuit Current (Isc) 14.1 A Panel Efficiency 14.62 % Maximum Power (Pmax) 216 Wp Voltage at Maximum Power (Vmpp) 19.98 V Current at Maximum Power (Impp) 10.81 A Open Circuit Voltage (Voc) 24.05 V Short Circuit Current (Isc) 11.37 A Temperature 42±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.30 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1721x1133x30 mm Weight 23 kg Cell Number 72 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2.0 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Diode

      Technology: TOPCon
      Power Range: 280 ~ 300 Wp
      Panel Efficiency: 14.36 ~ 15.39 %
      Weight: 23 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
