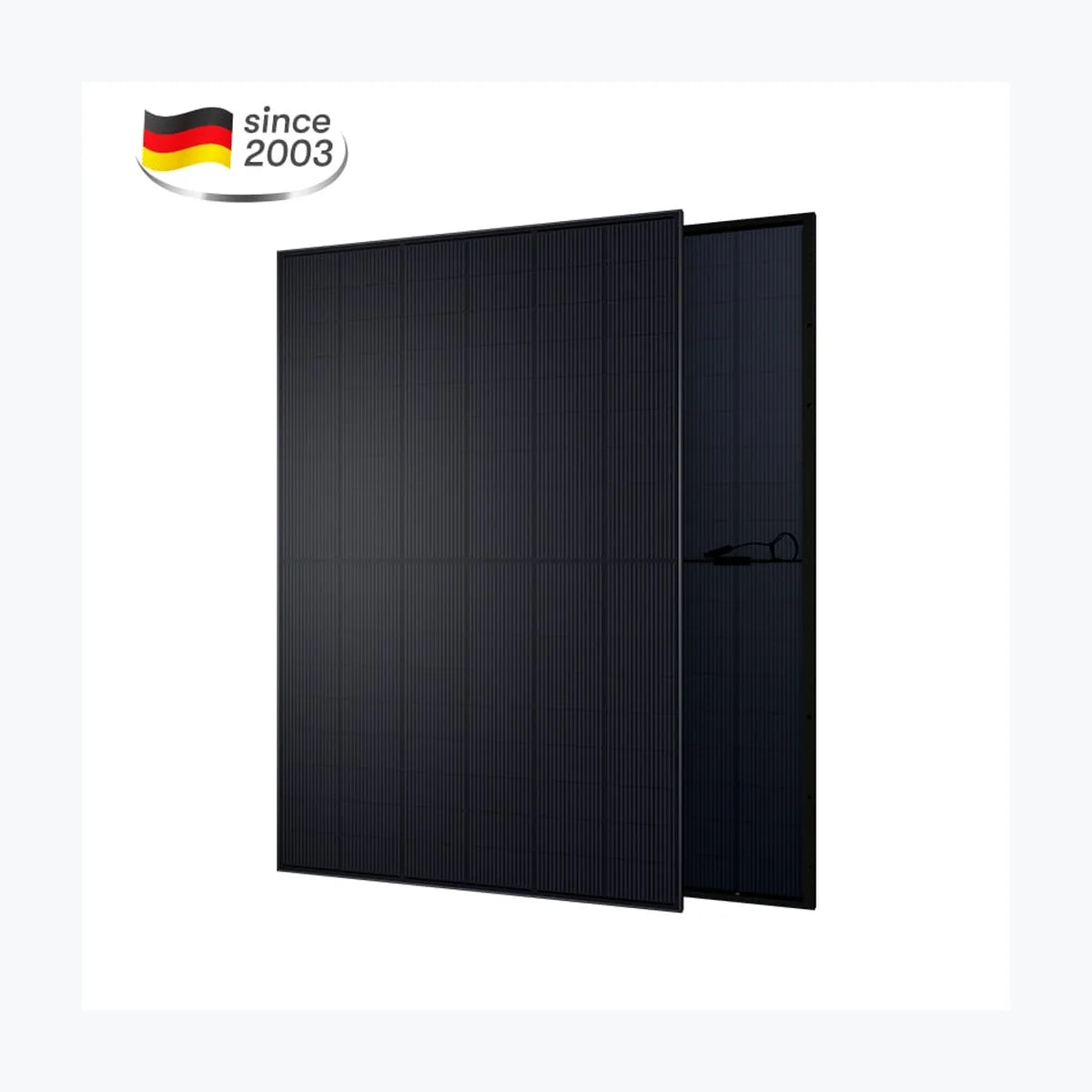

    AESOLAR AE435 CMD-108BDE

    AESOLAR AE435 CMD-108BDE

    $87.00 USD
    $87.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0414
    • Container price: $46,980.00 USD
    • Container qty: 720
    • Mpn: CMD-108BDE
    • Odoo id: 25,348
    • Pallet price: $2,218.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE435 CMD-108BDE Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 32.64 V Current at Maximum Power (Impp) 13.33 A Open Circuit Voltage (Voc) 38.46 V Short Circuit Current (Isc) 14.23 A Panel Efficiency 22.31 % Maximum Power (Pmax) 331 Wp Voltage at Maximum Power (Vmpp) 30.3 V Current at Maximum Power (Impp) 10.92 A Open Circuit Voltage (Voc) 36.4 V Short Circuit Current (Isc) 11.48 A Temperature 42±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.31 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1721x1133x30 mm Weight 26 kg Cell Size 182×182 mm Cell Number 108 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junc

      Technology: TOPCon
      Power Range: 415 ~ 435 Wp
      Panel Efficiency: 21.28 ~ 22.31 %
      Weight: 26 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
