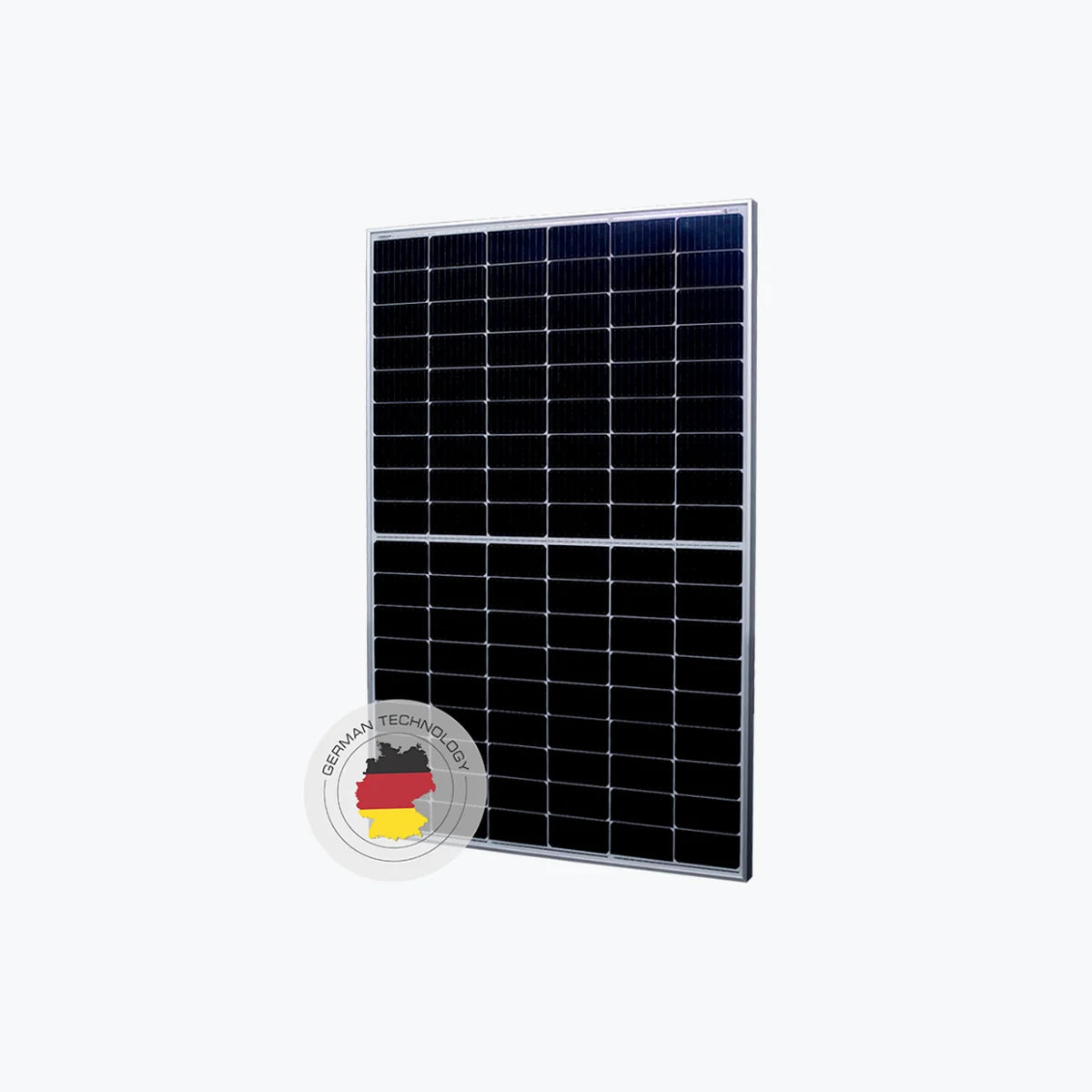

    AESOLAR AE475CMD-120BDS

    AESOLAR AE475CMD-120BDS

    $95.00 USD
    $95.00 USD
    Sale Sold out
    Shipping calculated at checkout.
    Return policy

    Specification

    • SKU:PES-SPS-SOL-0444
    • Container price: $51,300.00 USD
    • Container qty: 720
    • Mpn: AE475CMD-120BDS
    • Odoo id: 25,311
    • Pallet price: $2,422.50 USD
    • Pallet qty: 30
    View full details

    Product Description

    • Type Monocrystalline Model No. AE475CMD-120BDS Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 475 Wp Voltage at Maximum Power (Vmpp) 35.22 V Current at Maximum Power (Impp) 13.49 A Open Circuit Voltage (Voc) 42.54 V Short Circuit Current (Isc) 14.23 A Panel Efficiency 22.04 % Maximum Power (Pmax) 357 Wp Voltage at Maximum Power (Vmpp) 33.1 V Current at Maximum Power (Impp) 10.79 A Open Circuit Voltage (Voc) 40.41 V Short Circuit Current (Isc) 11.49 A Temperature 42±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.3 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1902x1133x30 mm Weight 29 kg Cell Size 182×182 mm Cell Number 120 Glass Type Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Anodized Aluminium Junction Box Protection Class I

      Technology: TOPCon, N-type
      Power Range: 465 ~ 485 Wp
      Panel Efficiency: 21.58 ~ 22.51 %
      Weight: 29 kg
      Seller Name: AE Alternative Energy GmbH
      Country: Germany
